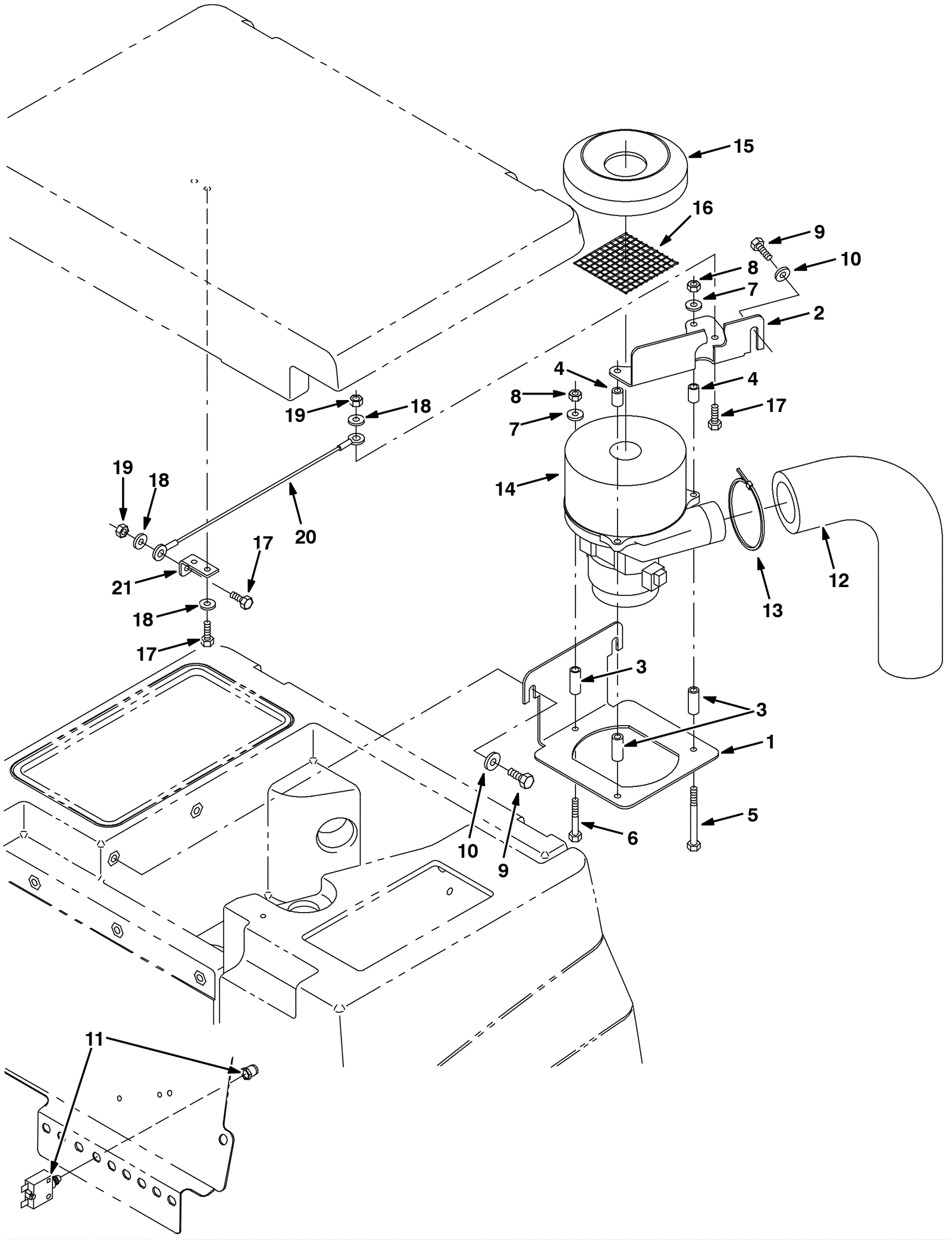

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-3396
|
Fan bracket |
1 |
|
|
2 |
175-3397
|
Fan bracket |
1 |
|
|
3 |
175-2207
|
Sleeve |
3 |
|
|
4 |
175-3398
|
Sleeve |
2 |
|
|
5 |
175-3399
|
Bolt M6-1 x 80mm hex head stainless steel |
2 |
|
|
6 |
175-3400
|
Bolt M6-1 x 55mm hex head stainless steel |
1 |
|
|
7 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
|
8 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
3 |
|
|
9 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
3 |
|
|
10 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
3 |
|
|
11 |
175-2337
|
20amp circuit breaker |
1 |
|
|
12 |
175-3401
|
Vacuum motor exhaust hose |
1 |
|
|
13 |
175-2226
|
Nylon wire tie |
1 |
|
|
14a |
175-3402
|
36V 3 stage vacuum motor assembly |
1 |
(OEM) (includes 15-16) |
|
14b |
991-1202-D
|
36V 3 stage vacuum motor tangential with Delphi plug |
1 |
(NON-OEM) |
|
15 |
175-3403
|
Fan seal |
1 |
|
|
16 |
175-3404
|
Fan inlet screen |
1 |
|
|
17 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
4 |
|
|
18 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
19 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
2 |
|
|
20 |
175-3405
|
Cable |
1 |
|
|
21 |
175-3406
|
Cable bracket |
1 |
|
|
