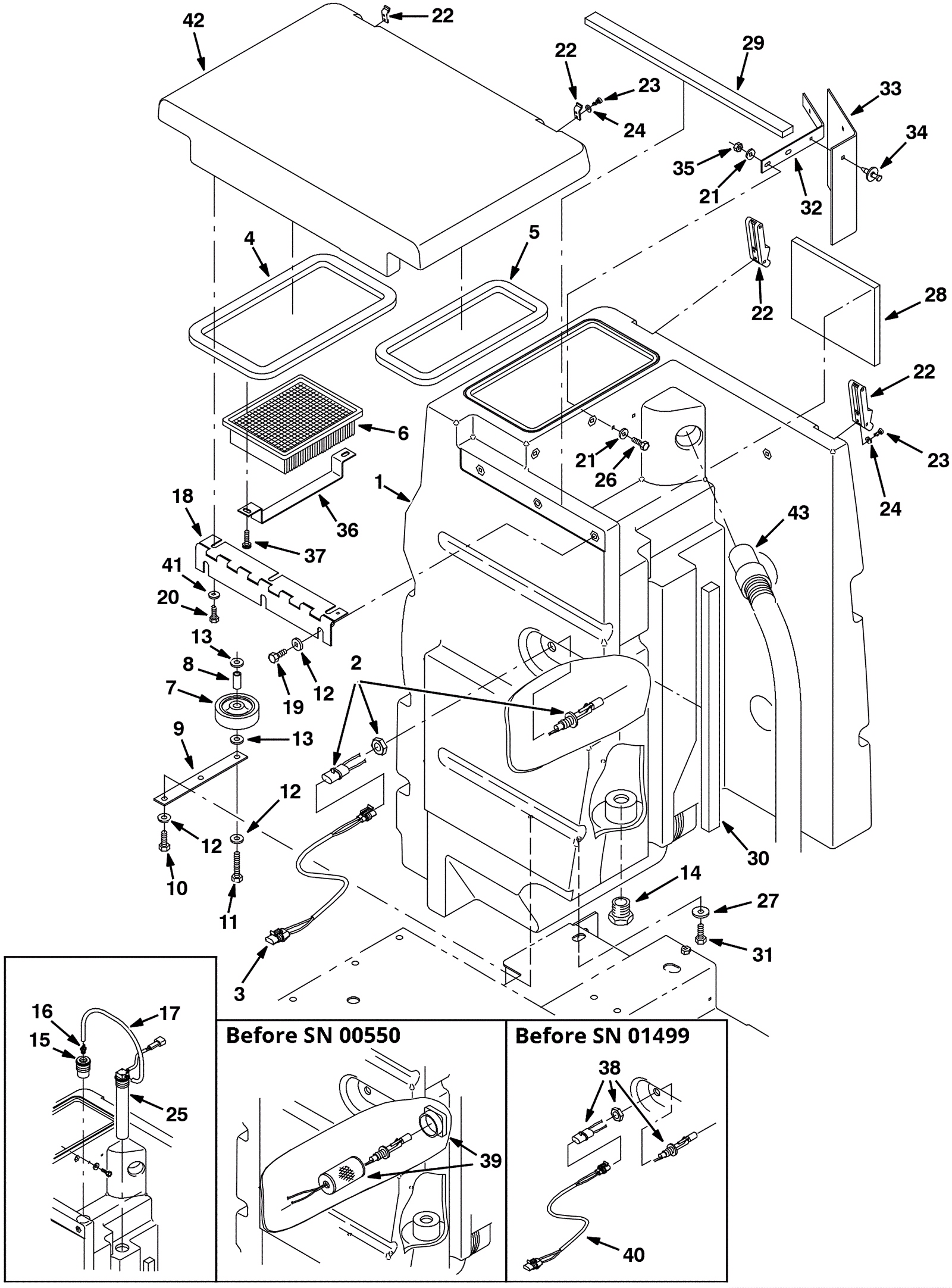

Recovery Tank Assembly

#PartDescription ReqNotesAvailability
1 175-3359 Trim recovery tank 1 (includes 2-3)
2 175-9554 Float switch 1 (after SN 01498)
3 475-3375 HARNESS, SENSOR, JUMPER 1 (after SN 01498)
4 175-2852 Recovery tank lid gasket 1
5 175-3362 Solution tank gasket 1
6a 175-3363 Fan filter 1
6b 991-9110 Filter 1 (NON-OEM)
7 175-3156 Bumper wheel 1
8 175-4916 Sleeve 1
9 175-3364 Bracket 1
10 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 2
11 999-1297 Screw M8 x 50mm hex head stainless steel 1
12 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 6
13 999-0123 Washer 1/4 SAE flat zinc plated 2
14 175-2247 Plastic fitting 1
15 175-3365 2 inch tube assembly 1
16 175-3366 Fitting 1
17 375-2597 Vacuum hose 1
18 175-3368 Hinge 1
19 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 3
20 175-5113 Bolt M6 x 12mm hex head 3
21 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4
22 375-7802 Latch 2
23 175-3370 Screw M4-.7 x 8mm pan head stainless steel 8
24 999-1158 Washer #6 flat stainless steel 8
25 175-3372 3 inch press switch assembly 8 inch tube 1
26 999-1087 Bolt M6-1 x 25mm hex head stainless steel 2
27 175-2367 Steel plated washer 1
28 175-3373 Sound insulation 1
29 175-3374 Sound insulation 1
30 175-3375 Sound insulation 1
31 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 1
32 175-3376 Mounting skirt strip 1
33 175-3377 Deflector flap 1
34 175-3378 Rivet 1/4 x 57/64 plastic 2
35 999-0497 Nut M6-1 nylon insert lock stainless steel 2
36 175-4995 Filter bracket 1
37 175-3718 Knob 2
38 175-2262 Magnetic float sensor 1 (before SN 01499)
39 N/A Not available 1 (sensor) (before SN 00550)
40 275-8344 HARNESS, SENSOR, JUMPER (Tennant Industrial) 1
41 175-2009 WASHER, SEALING, 0.28B 0.75D SS, NEO 3
42 275-5796 Recovery tank lid with labels 1
43 175-3361 Vacuum hose 1
