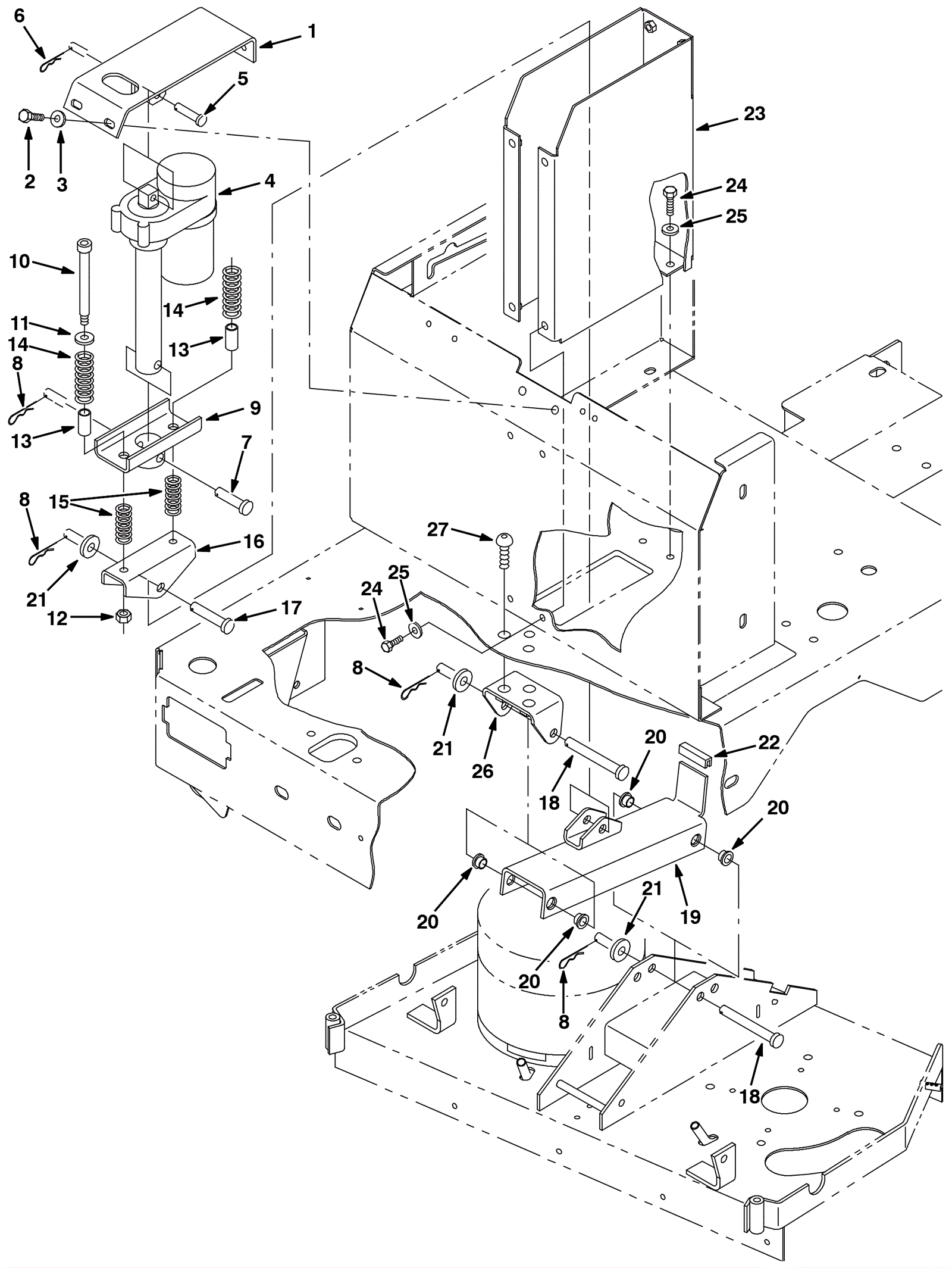

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-3312
|
Mounting actuator plate weldment |
1 |
|
|
2 |
999-0581
|
Bolt M8-1.25 x 25mm hex head full thread zinc |
2 |
|
|
3 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
4 |
175-3313
|
Actuator |
1 |
|
|
5 |
175-2592
|
Clevis Pin 0.37 D X 1.75 L |
1 |
|
|
6 |
175-2113
|
Cotter pin |
1 |
|
|
7 |
175-2382
|
Clevis pin |
1 |
|
|
8 |
175-2106
|
Cotter hair pin |
4 |
|
|
9 |
375-3096
|
Actuator weldment (Tennant Industrial) |
1 |
|
|
10 |
175-2856
|
Bolt 3/8-16 x 1/2 x 4 shoulder |
2 |
|
|
11 |
999-0114
|
Washer 1/2 SAE flat |
2 |
|
|
12 |
999-0324
|
Nut 3/8-16 nylon insert lock jam zinc plated |
2 |
|
|
13 |
175-2442
|
Sleeve |
2 |
|
|
14 |
175-3315
|
Compression spring |
2 |
|
|
15 |
175-3316
|
Compression spring |
2 |
|
|
16 |
175-3317
|
Lift channel |
1 |
|
|
17 |
175-9603
|
Clevis pin |
1 |
|
|
18 |
175-2116
|
Clevis pin |
2 |
|
|
19 |
175-3334
|
Lifting weldment |
1 |
|
|
20 |
175-3335
|
Flanged bushing |
4 |
|
|
21 |
999-0114
|
Washer 1/2 SAE flat |
3 |
|
|
22 |
175-3336
|
Rubber trim molding |
1 |
|
|
23 |
175-4972
|
Channel weldment support |
1 |
|
|
24 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
8 |
|
|
25 |
999-0024
|
Washer 5/16 flat stainless steel |
8 |
|
|
26 |
175-4971
|
Actuator mounting channel weldment |
1 |
|
|
27 |
175-3256
|
Screw M12-1.75 x 25mm button head |
3 |
|
|
