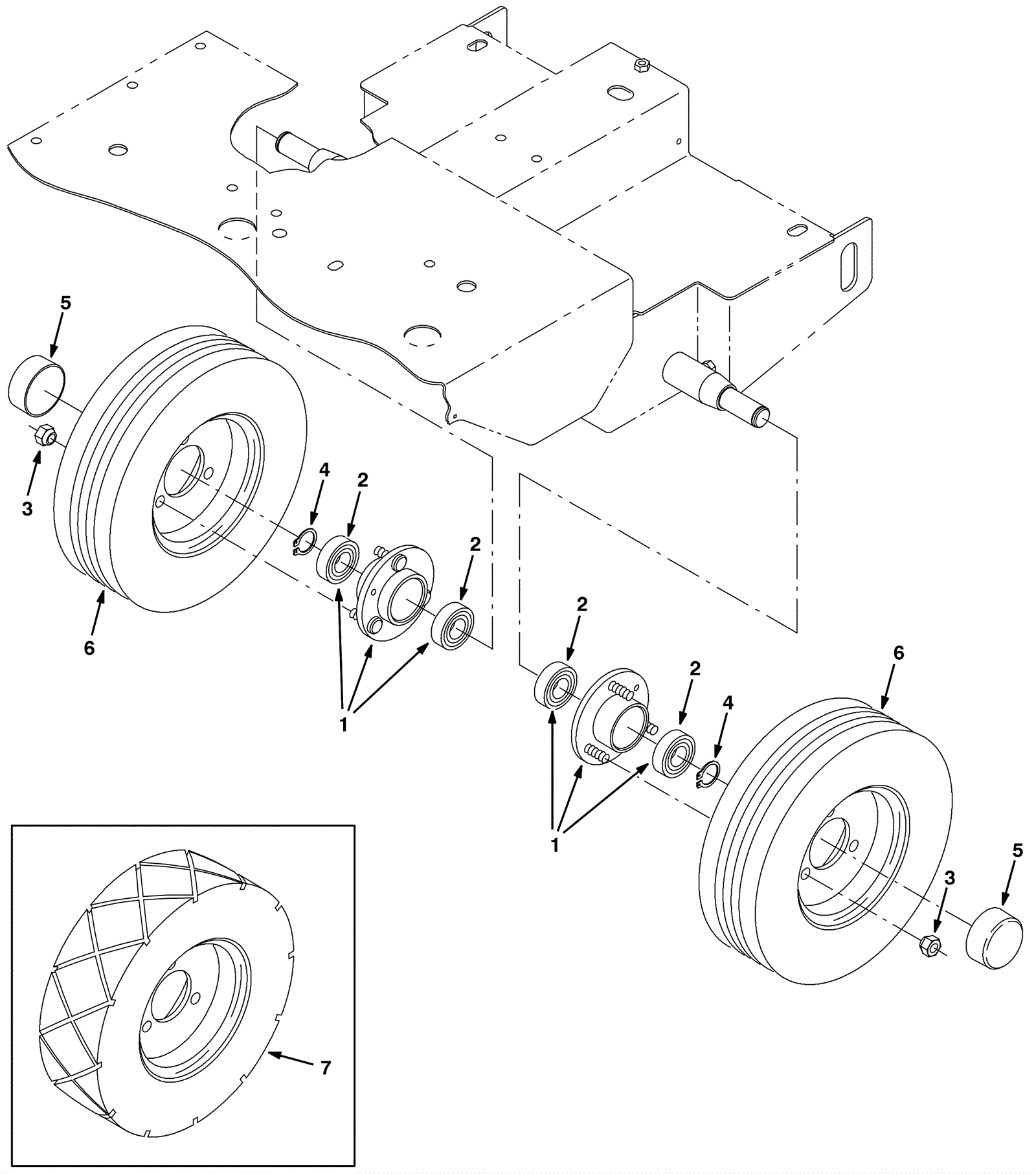

Rear Wheel Assembly

#PartDescription ReqNotesAvailability
1 175-3292 Wheel assembly housing 2 (includes 2)
2 175-3293 Ball bearing 2
3 175-2288 Lug nut 6
4 175-3294 Retaining ring 2
5 175-3295 Axle cap 2
6 175-3296 Solid tire assembly 2
7 275-5338 Solid tire assembly 2 (Optional)
