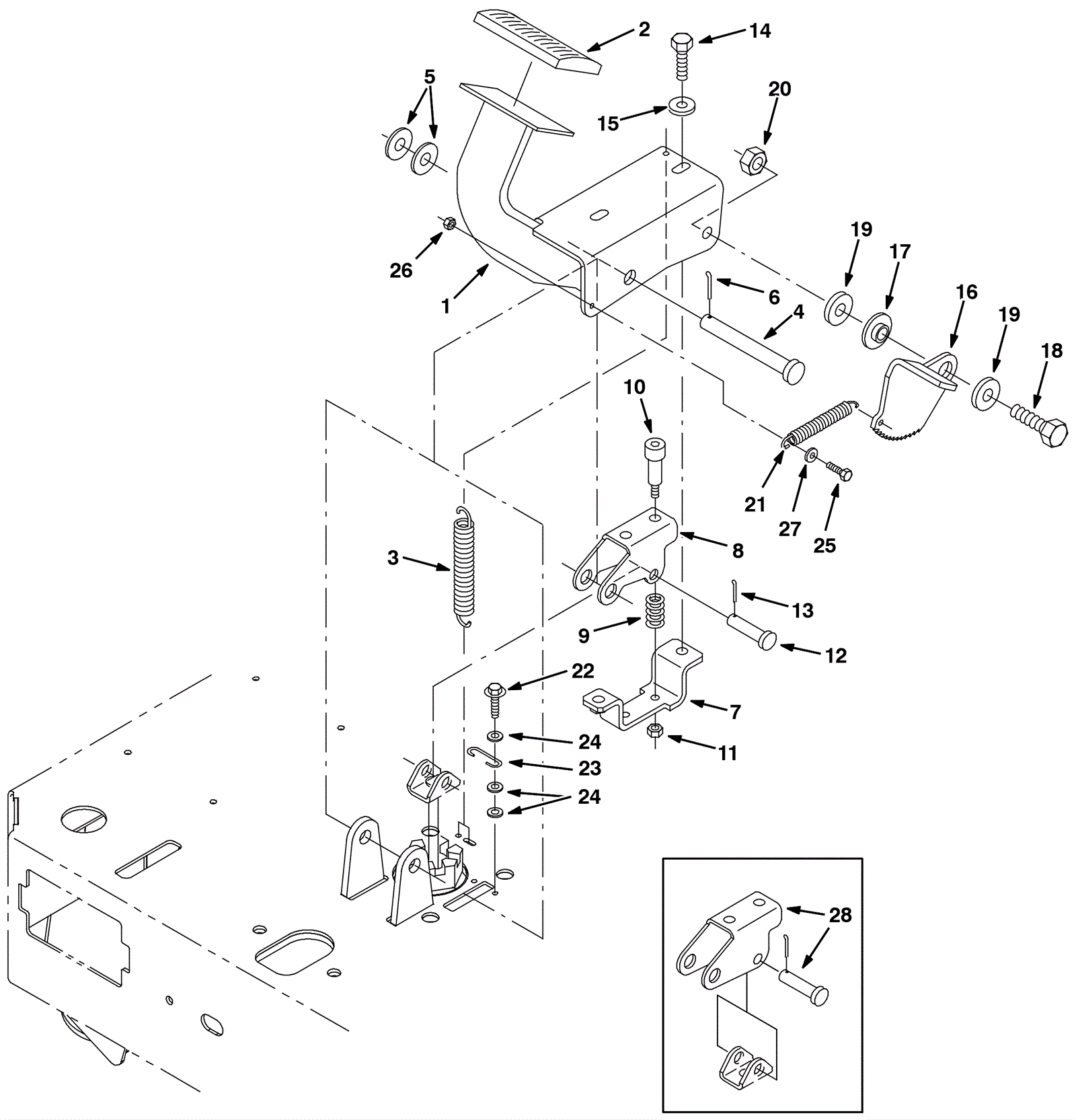

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-5336
|
Brake pedal weldment |
1 |
|
|
2 |
175-3279
|
Pedal pad |
1 |
|
|
3 |
175-2064
|
Extension spring |
1 |
|
|
4 |
175-4960
|
Clevis pin |
1 |
|
|
5 |
999-0114
|
Washer 1/2 SAE flat |
2 |
|
|
6 |
175-3281
|
Cotter pin |
1 |
|
|
7 |
175-4961
|
Spring mounting channel weldment |
1 |
|
|
8 |
275-5337
|
Brake channel mounting bracket |
1 |
(after SN 00985) |
|
9 |
175-3284
|
Compression spring |
2 |
|
|
10 |
175-3285
|
Bolt 1/4-20 x 5/16-1 shoulder |
2 |
|
|
11 |
999-0609
|
Nut 1/4-20 hex stainless steel |
2 |
|
|
12 |
175-2111
|
Clevis pin |
1 |
|
|
13 |
175-6176
|
Cotter pin |
1 |
|
|
14 |
175-4963
|
Bolt M6-1 x 20mm hex head |
2 |
|
|
15 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
16 |
175-3286
|
Brake pedal lock |
1 |
|
|
17 |
175-3287
|
Flanged bushing |
1 |
|
|
18 |
175-3258
|
Bolt M10-1.5 x 35mm hex head |
1 |
|
|
19 |
999-0032
|
Washer 3/8 USS flat plain finish |
2 |
|
|
20 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
1 |
|
|
21 |
175-2065
|
Extension spring |
1 |
|
|
22 |
999-1228
|
Screw M5-.8 x 10mm hex head stainless steel |
2 |
|
|
23 |
175-3290
|
Parking brake spring |
1 |
|
|
24 |
999-0006
|
Washer 3/16 flat zinc plated |
6 |
|
|
25 |
175-3291
|
SCREW, HEX, M4 X 0.70 X 20, 8.8 (Tennant Industrial) |
1 |
|
|
26 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
1 |
|
|
27 |
999-0412
|
Washer #8 SAE flat |
1 |
|
|
28 |
275-2754
|
Brake linkage replacement kit |
1 |
(between SN 00213 and SN 00985) |
|
