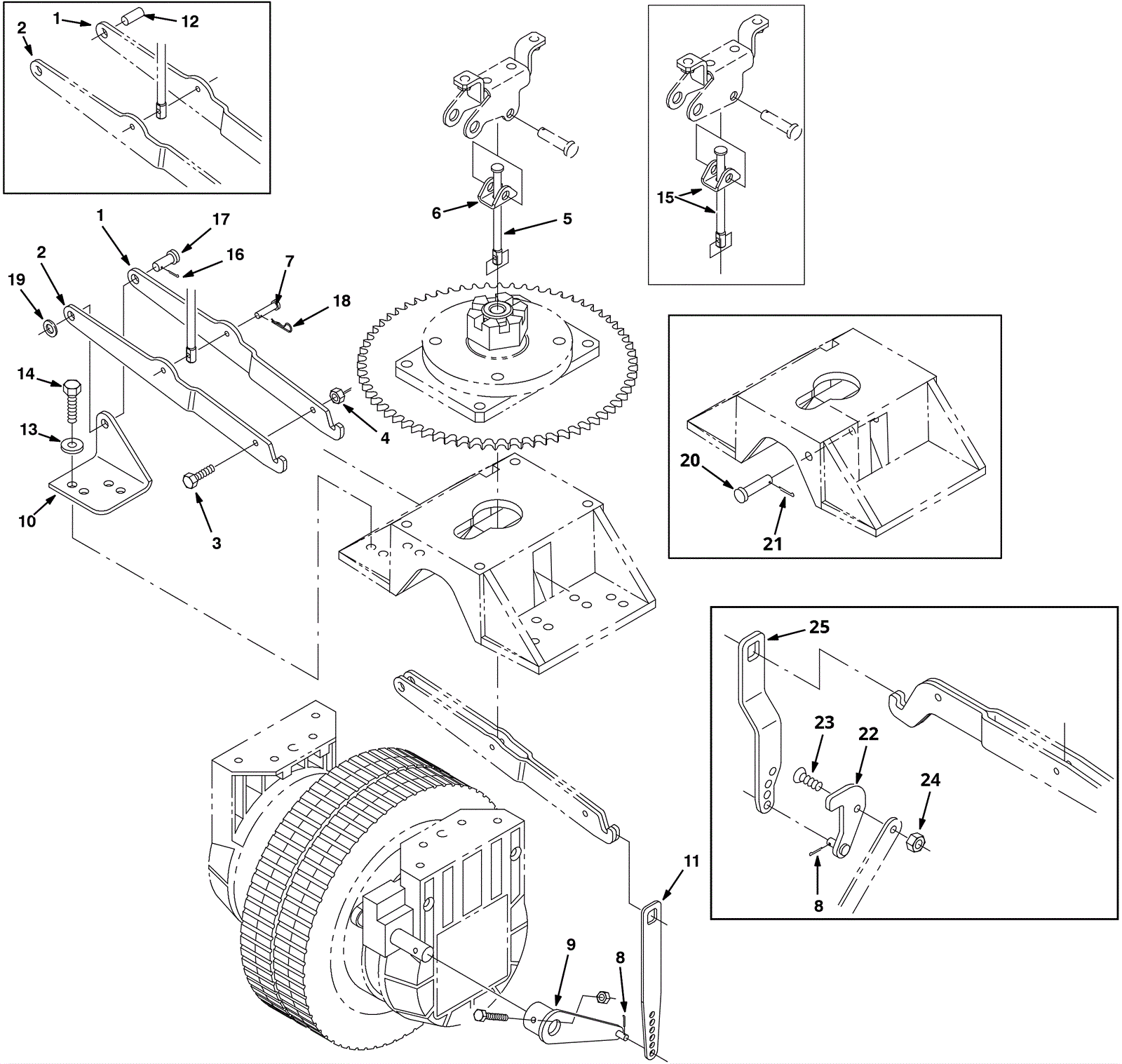

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1a |
275-2749
|
Left side brake arm link |
$36.08
|
1 |
(after SN 00212) |
usually ships 1-5 days |
1b |
175-3267
|
Left side brake arm link (OBSOLETE) |
$24.31
|
1 |
(before SN 00213) |
usually ships 1-5 days |
2a |
275-2750
|
Right side brake arm link |
$36.08
|
1 |
(after SN 00212) |
usually ships 1-5 days |
2b |
175-3268
|
Right side brake arm link (OBSOLETE) |
$52.91
|
1 |
(before SN 00213) |
usually ships 1-5 days |
3 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
$0.99
|
1 |
|
ships same day |
4 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
$0.99
|
1 |
|
ships same day |
5 |
275-2751
|
Brake link |
$188.65
|
1 |
(after SN 00985) |
usually ships 1-5 days |
6 |
275-2752
|
Brake channel |
$24.86
|
1 |
(after SN 00985) |
usually ships 1-5 days |
7 |
175-3271
|
Clevis pin |
$6.49
|
1 |
|
usually ships 1-5 days |
8 |
175-3272
|
Cotter pin |
$3.30
|
1 |
|
usually ships 13-17 days |
9 |
175-4956
|
Brake arm weldment |
$56.98
|
1 |
(after SN 00212) |
usually ships 1-5 days |
10a |
175-4957
|
Pivot brake bracket |
$19.80
|
1 |
(after SN 00212) |
usually ships 1-5 days |
10b |
175-3276
|
Brake pivot bracket (OBSOLETE) |
$19.91
|
1 |
(before SN 00213) |
usually ships 1-5 days |
11 |
175-4958
|
LINK, BRAKE (Tennant Industrial) |
$20.00
|
1 |
(after SN 00212) |
usually ships 1-5 days |
12 |
175-3277
|
Brake pin (OBSOLETE) |
$3.17
|
1 |
(after SN 00212) |
usually ships 1-5 days |
13 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
$0.99
|
2 |
|
usually ships 19-32 days |
14a |
175-3163
|
Screw M8-1.25 x 60mm hex head |
$4.49
|
2 |
(after SN 00212) |
usually ships 13-17 days |
14b |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
$1.12
|
2 |
(before SN 00213) |
ships same day |
15 |
275-2754
|
Brake linkage replacement kit |
$251.57
|
1 |
(before SN 00986) |
usually ships 1-5 days |
16 |
175-3281
|
Cotter pin |
$3.30
|
1 |
(between SN 00213 and SN 00985) |
usually ships 13-17 days |
17 |
175-5894
|
Clevis pin |
$5.50
|
1 |
(before SN 00986) |
usually ships 13-17 days |
18 |
175-2113
|
Cotter pin |
$3.30
|
1 |
(before SN 00986) |
ships same day |
19 |
999-0032
|
Washer 3/8 USS flat plain finish |
$2.42
|
1 |
(after SN 00212) |
ships same day |
20 |
175-2185
|
Clevis pin |
$4.36
|
1 |
(before SN 00213) |
ships same day |
21 |
175-6176
|
Cotter pin |
$3.30
|
1 |
(before SN 00213) |
ships same day |
22 |
175-3273
|
Brake arm weldment (OBSOLETE) |
$45.87
|
1 |
(before SN 00213) |
usually ships 1-5 days |
23 |
175-3274
|
Screw M6-1 x 16mm flat |
$3.17
|
1 |
(before SN 00213) |
usually ships 1-5 days |
24 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
$1.32
|
1 |
(before SN 00213) |
ships same day |
25 |
175-3275
|
Offset brake link |
$32.45
|
1 |
(before SN 00213) |
usually ships 1-5 days |
