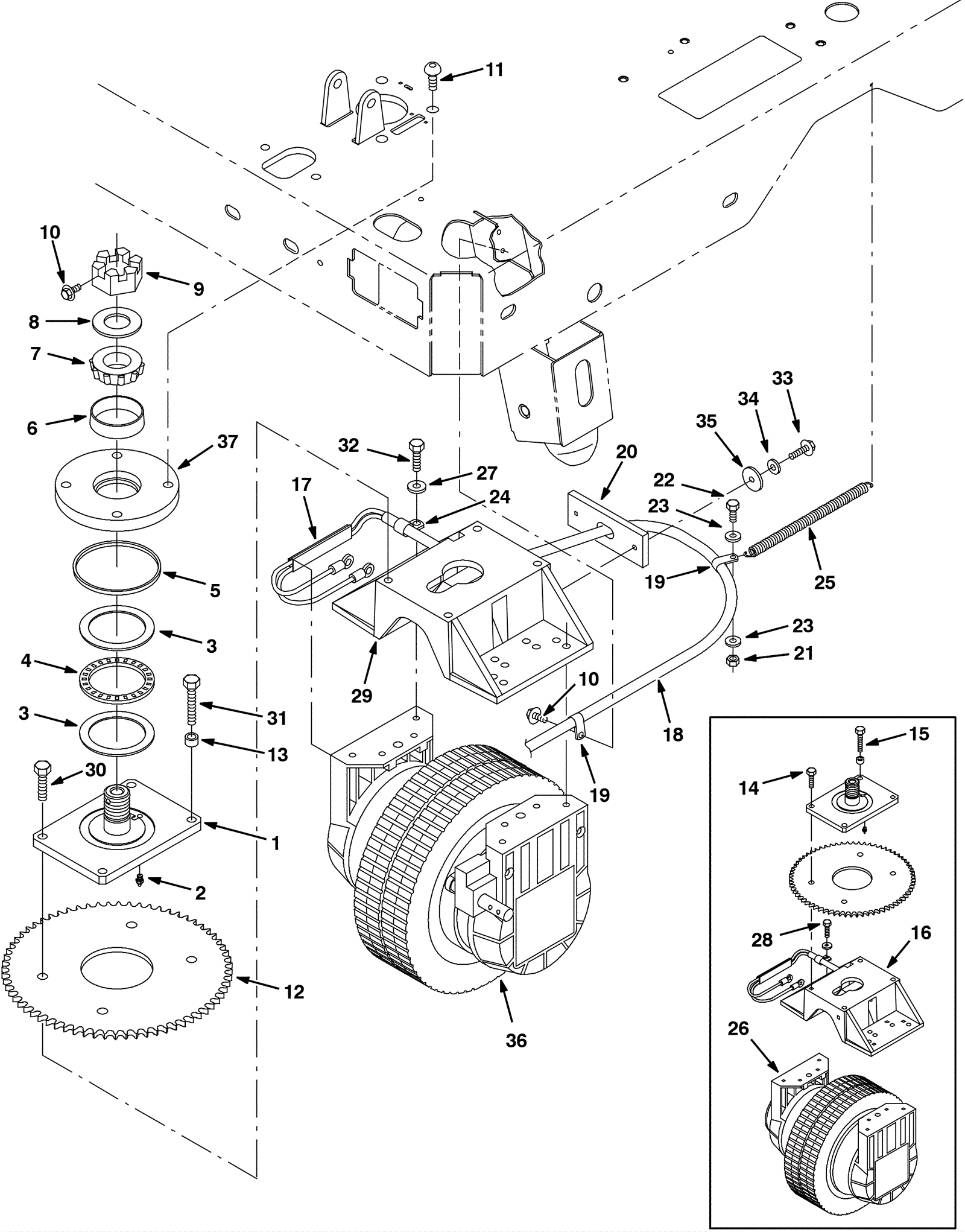

Front Drive Wheel Assembly

#PartDescription ReqNotesAvailability
1 175-3247 Swivel plate weldment 1
2 175-3248 Grease fitting 1
3a 175-4946 Front drive wheel replacement bearing kit 1 (includes 3b-7)
3b 175-3249 Washer thrust 2
4 175-3250 Thrust bearing 1
5 175-3251 Felt seal 1
6 175-4947 Cup bearing 1
7 175-6775 Cone bearing 1
8 175-3254 Washer 1
9 175-3255 Nut hexslot 1 1/4 x 12 1
10 175-3166 Bolt M6-1 x 16mm hex head 2
11 175-3256 Screw M12-1.75 x 25mm button head 4
12 175-3257 Drive sprocket 1
13 175-2814 Spacer 1
14 175-3258 Bolt M10-1.5 x 35mm hex head 3 (before SN 00131)
15 175-3259 Screw M10-1.5 x 45mm hex head 1 (before SN 00131)
16 175-3260 Adapter plate repair kit (OBSOLETE) 1 (before SN 00131)
17 175-3261 PVC duct 1
18 175-3262 Motor harness 1
19 175-3170 P clamp 3
20 175-4948 Strain relief flap 1
21 999-0497 Nut M6-1 nylon insert lock stainless steel 2
22 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 1
23 999-0016 Washer 1/4 flat plain finish 2
24 175-3168 P clamp 1
25 175-3263 Extension spring 1
26 175-4950 Front wheel gearbox assembly 1 (before SN 00213)
27 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 6
28 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 8 (before SN 00131)
29 275-2748 Wheel adapter plate 1 (after SN 00130)
30 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 3 (after SN 00130)
31 175-3266 Bolt 10mm-1 1/2 x 50 hex head 1 (after SN 00130)
32 999-0788 Screw M8-1.25 x 55mm hex head stainless steel 6 (after SN 00130)
33 999-0779 Screw M6-1 x 25mm hex head plain finish 2
34 999-0123 Washer 1/4 SAE flat zinc plated 2
35 999-1288 Washer 1/4 x 1 OD fender stainless steel 2
36 175-4952 Break wheel gearbox 1 (after SN 00212)
37 175-3252 Bottom swivel plate 1
