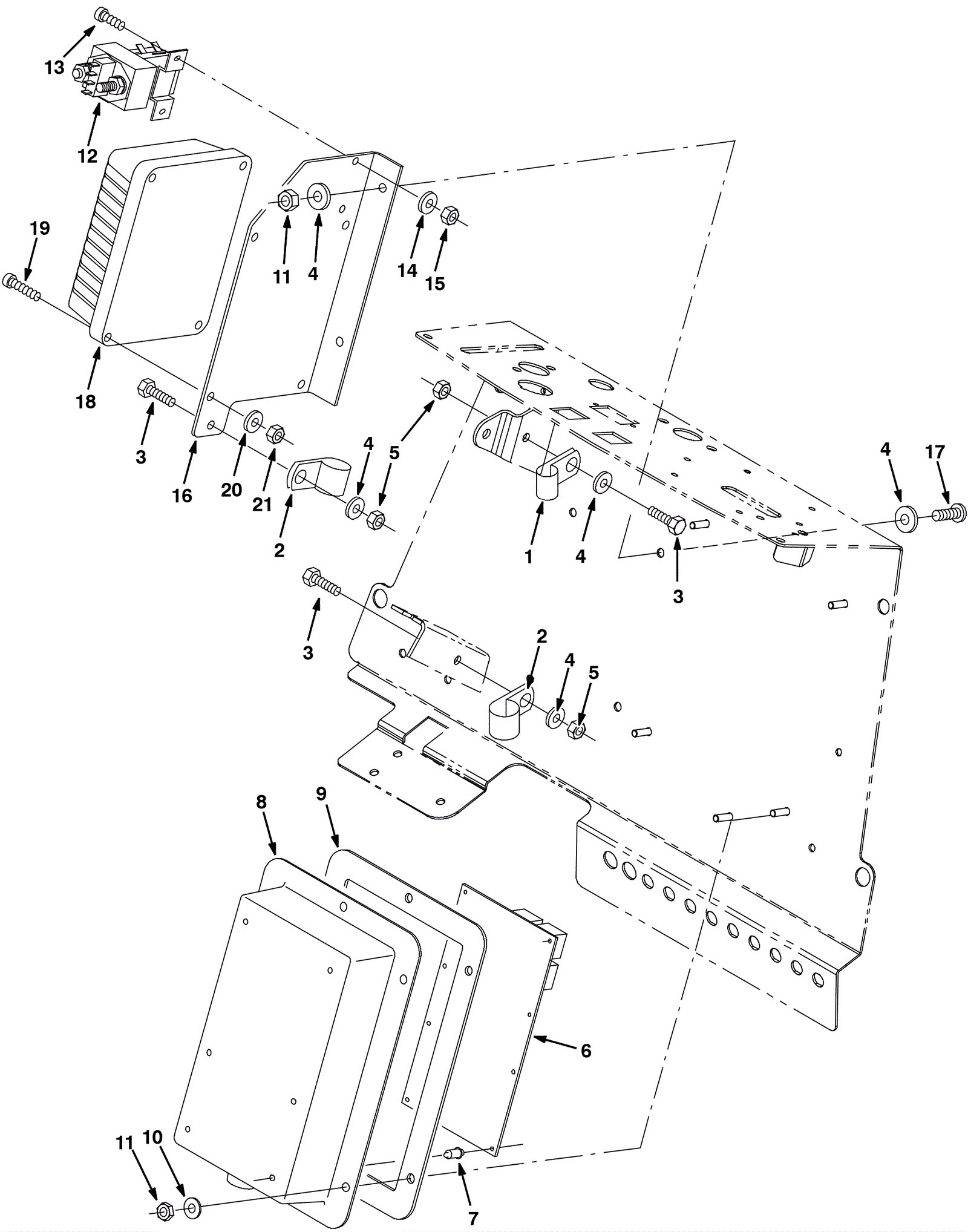

7100 Circuit Breaker and Controller Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-3168 P clamp $3.60 1 usually ships 5-16 days
2 175-2260 P clamp $3.60 2 usually ships 5-16 days
3 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 3 ships same day
4 999-0016 Washer 1/4 flat plain finish $0.99 7 ships same day
5 999-6694 Nut M6-1 hex serrated flange stainless steel $0.99 3 ships same day
6 175-3239 Circuit board assembly $1,545.60 1 usually ships 5-16 days
7 175-2400 Circuit board clip $3.00 6 usually ships 1-5 days
8 175-3240 Elevated cover $125.50 1 usually ships 1-5 days
9 175-3241 Gasket cover $18.10 1 usually ships 1-5 days
10 999-0123 Washer 1/4 SAE flat zinc plated $0.99 6 ships same day
11 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 8 ships same day
12 175-3242 Contactor $252.90 1 usually ships 5-16 days
13 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel $0.99 2 ships same day
14 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
15 175-2894 Nut M5-.8 hex nylon locking $2.20 2 usually ships 5-16 days
16 175-3243 Controller bracket $27.50 1 usually ships 1-5 days
17 175-3229 Screw 6mm-1 x 16 pan head $3.00 2 usually ships 1-5 days
18 175-3244 36V motor controller $402.40 1 ships same day
19 175-3245 Screw 4mm-.7 x 30 pan head $2.20 4 usually ships 1-5 days
20 999-0412 Washer #8 SAE flat $0.99 4 ships same day
21 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 4 ships same day
