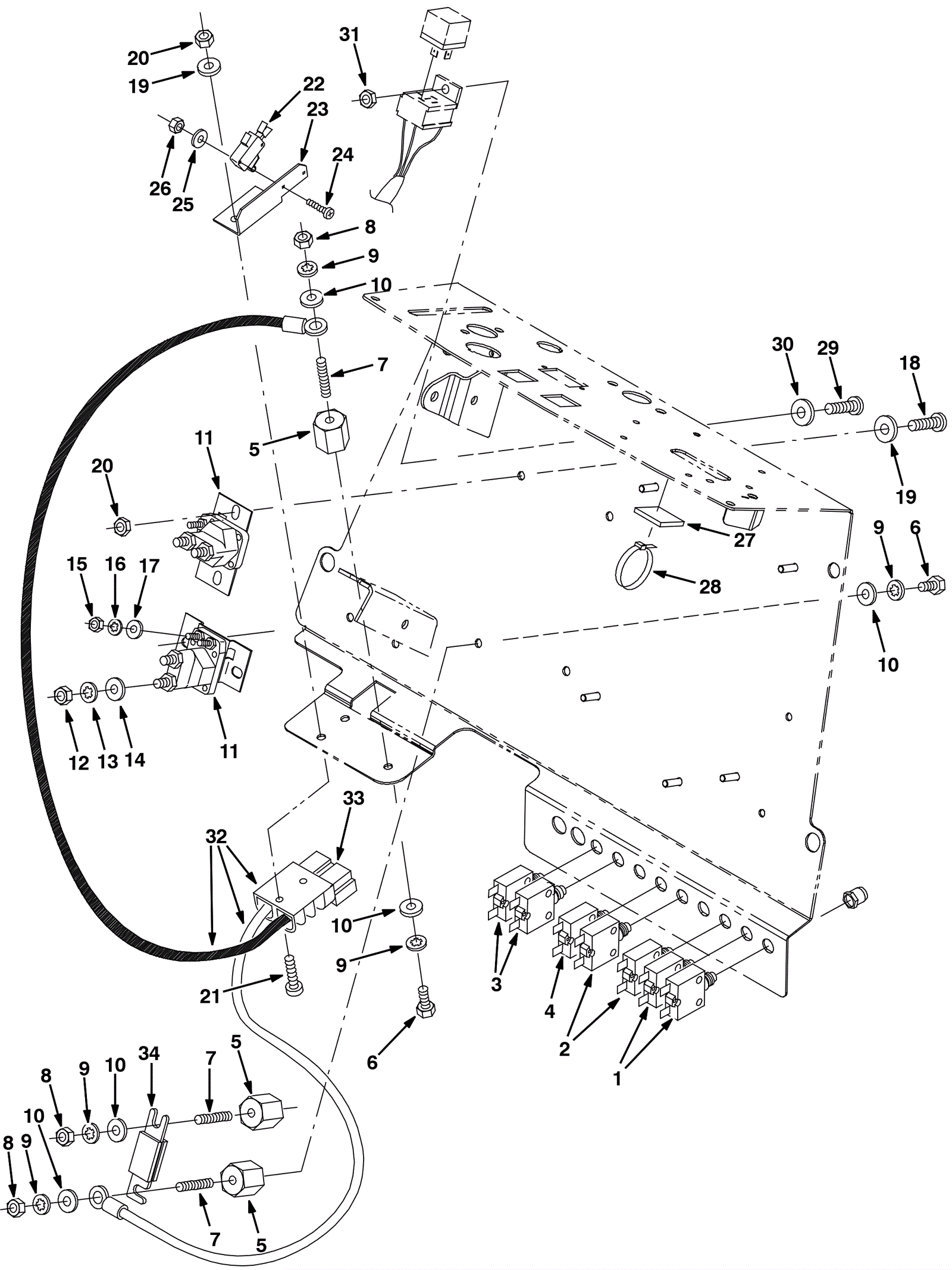

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-2529
|
2.5amp circuitbreaker |
2 |
|
|
2 |
175-2336
|
10amp circuit breaker |
2 |
|
|
3 |
991-1631
|
25amp circuit breaker |
2 |
|
|
4 |
175-2337
|
20amp circuit breaker |
1 |
|
|
5 |
175-3226
|
Insulated stand off |
3 |
|
|
6 |
175-9950
|
Bolt 1/4-20 x 1/2 hex head nylon lock |
3 |
|
|
7 |
175-3227
|
Threaded rod |
3 |
|
|
8 |
999-0181
|
Nut 1/4-20 hex jam plain finish |
3 |
|
|
9 |
999-0238
|
Washer 1/4 internal star lock zinc plated |
6 |
|
|
10 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
6 |
|
|
11 |
175-2373
|
36V contactor |
2 |
|
|
12 |
999-0763
|
Nut 5/16-24 hex jam plain finish |
4 |
|
|
13 |
999-0406
|
Washer 5/16 internal star lock zinc plated |
4 |
|
|
14 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
15 |
999-0460
|
Nut 10-32 hex |
4 |
|
|
16 |
999-0089
|
Washer #10 internal star lock zinc plated |
4 |
|
|
17 |
999-0998
|
Washer #10 flat stainless steel |
4 |
|
|
18 |
175-3229
|
Screw 6mm-1 x 16 pan head |
4 |
|
|
19 |
999-0016
|
Washer 1/4 flat plain finish |
6 |
|
|
20 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
6 |
|
|
21 |
275-5062
|
Screw M6-1 x 35mm hex head |
2 |
|
|
22 |
175-3231
|
Micro switch |
1 |
|
|
23 |
175-3232
|
Switch bracket |
1 |
|
|
24 |
999-1040
|
Screw M3-.5 x 20mm pan head |
2 |
|
|
25 |
999-0479
|
Washer #4 internal star lock zinc plated |
2 |
|
|
26 |
999-0768
|
Nut M3-.5 hex coarse thread plain finish |
2 |
|
|
27 |
175-3233
|
Cable tie mount |
1 |
|
|
28 |
175-2202
|
Nylon wire tie |
1 |
|
|
29 |
175-3234
|
Screw M5-.8 x 10mm pan head |
1 |
|
|
30 |
999-0006
|
Washer 3/16 flat zinc plated |
1 |
|
|
31 |
175-2894
|
Nut M5-.8 hex nylon locking |
1 |
|
|
32 |
175-3236
|
Wire harness charger |
1 |
(includes 33) |
|
33 |
991-2112
|
175amp charger plug with pins (gray) SB175 |
1 |
|
|
34 |
175-3238
|
Fuse |
1 |
|
|
