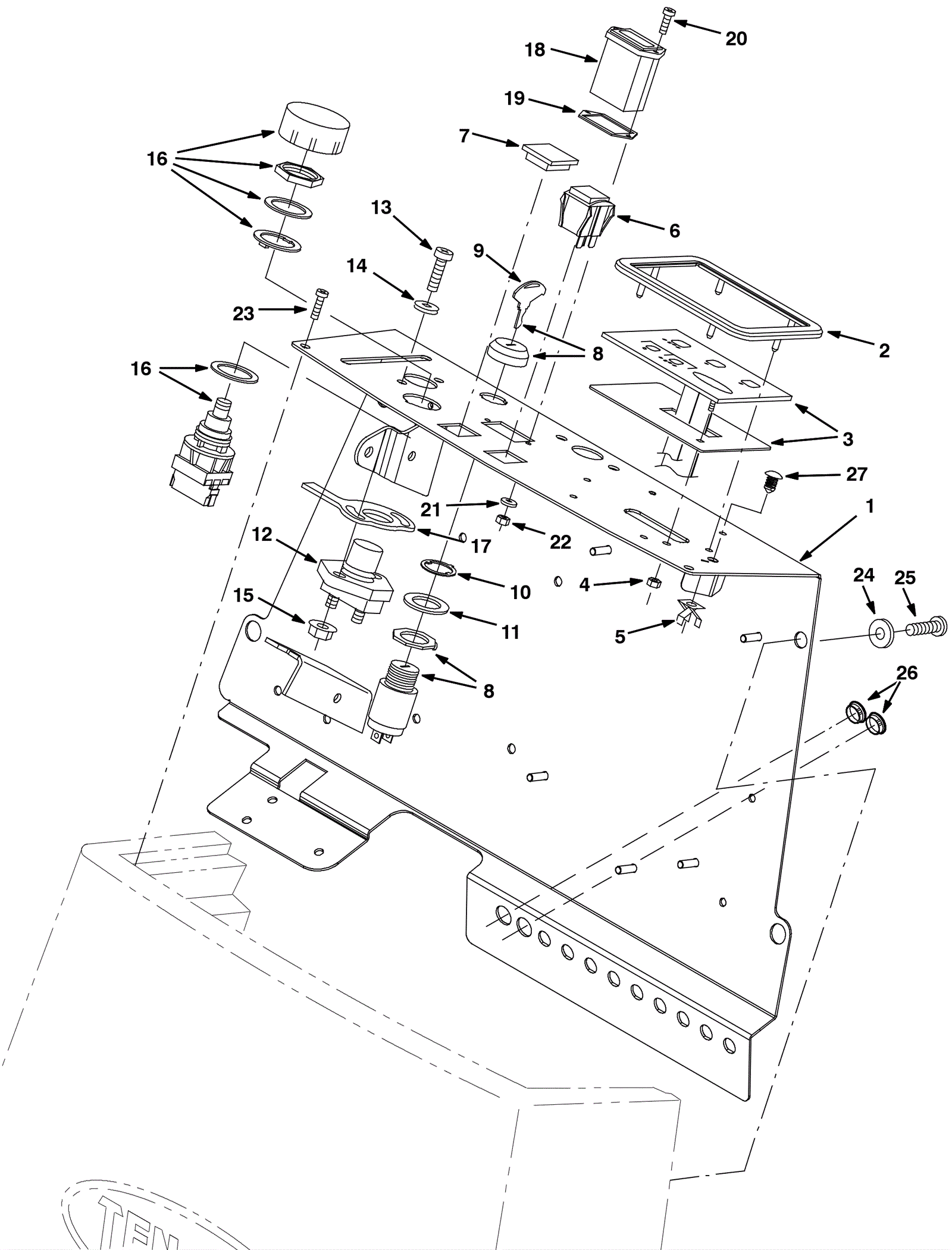

7100 Instrument Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-1523 Panel weldment $193.80 1 usually ships 5-16 days
2 175-3210 Touch panel bezel $24.10 1 usually ships 5-16 days
3 175-3211 Touch panel assembly $873.40 1 usually ships 5-16 days
4 175-3224 Nut 6-32 hex lock $3.00 1 usually ships 5-16 days
5 175-6172 Receiver speed clip stud $2.90 6 usually ships 5-16 days
6 175-3213 Rocker switch $45.70 1 usually ships 5-16 days
7 175-2537 Switch plug $6.80 1 usually ships 5-16 days
8 175-3214 Key switch $77.60 1 (includes 9) usually ships 5-16 days
9 175-3215 Key (sold individually) $12.70 1 ships same day
10 175-3216 Washer $15.60 1 usually ships 1-5 days
11 175-3217 Washer .91b x 1.38d x .06 steel plated $3.60 1 usually ships 5-16 days
12 175-3218 Push switch SPST $21.90 1 usually ships 5-16 days
13 175-3219 SCREW, PAN, PHL, M6 X 1.00 X 25, 4.8 (Tennant Industrial) $4.84 2 usually ships 1-5 days
14 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
15 999-6694 Nut M6-1 hex serrated flange stainless steel $0.99 2 ships same day
16 175-3220 Push switch $49.80 1 usually ships 5-16 days
17 375-2596 Solution valve stop $53.70 1 usually ships 5-16 days
18 175-7079 Hour meter $70.40 1 ships same day
19 175-2327 Gasket $3.90 1 usually ships 5-16 days
20 175-4933 Screw M3-.5 x 12mm pan head $2.20 2 usually ships 1-5 days
21 999-0479 Washer #4 internal star lock zinc plated $0.99 2 ships same day
22 999-0768 Nut M3-.5 hex coarse thread plain finish $1.54 2 ships same day
23 175-3223 Screw 12-16 x 1/2 pan head plastic $3.60 2 usually ships 1-5 days
24 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
25 175-3202 Screw M8-1.25 x 20mm $3.00 4 usually ships 5-16 days
26 175-9940 Black nylon plug (Tennant Industrial) $4.84 2 usually ships 1-5 days
27 175-9375 Hole plug $2.40 1 usually ships 1-5 days
