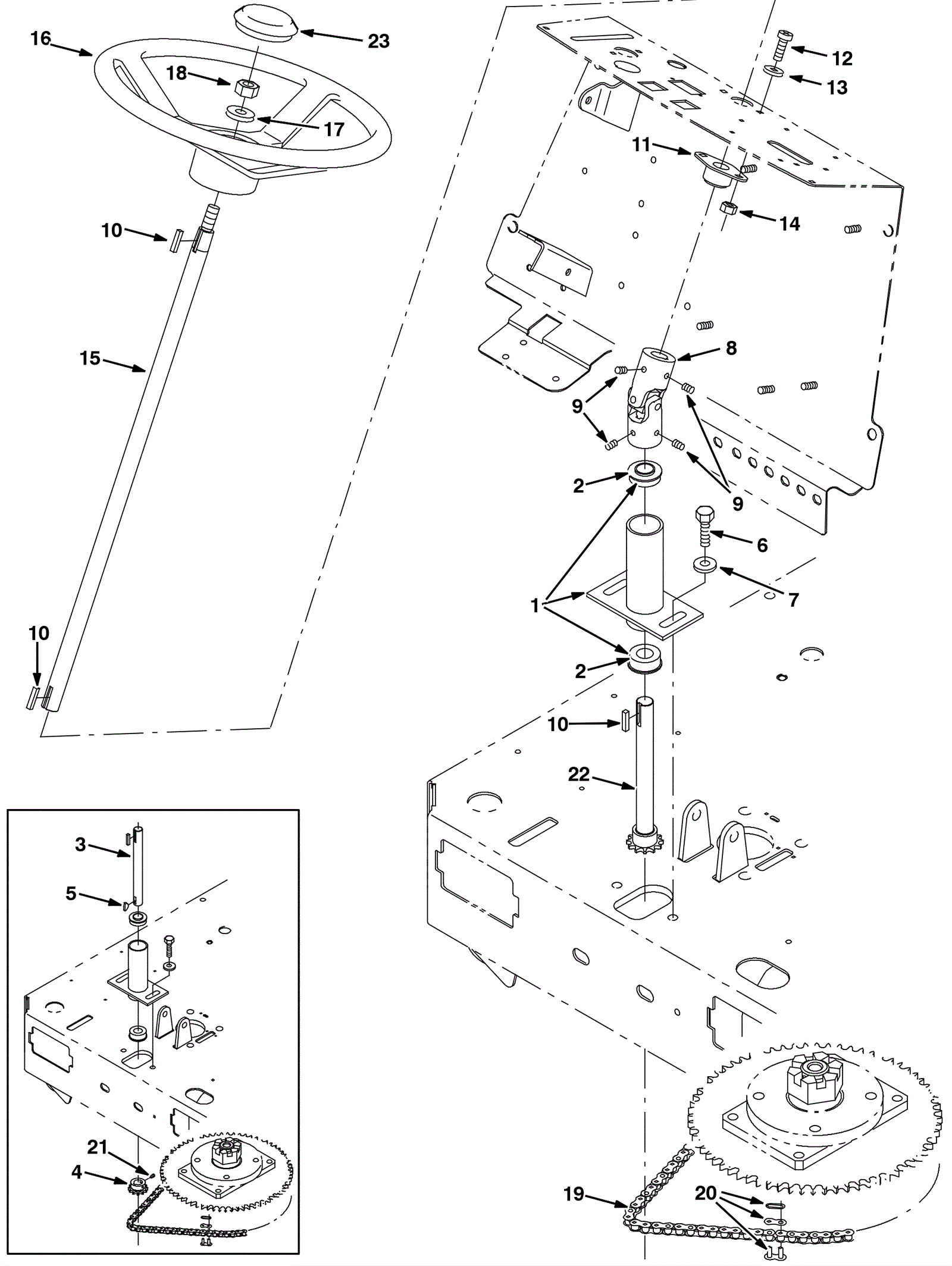

7100 Steering Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-4925 Steering housing assembly $177.40 1 (includes 2) usually ships 1-5 days
2 175-3195 Ball bearing $17.20 2 usually ships 5-16 days
3 175-3196 Steering shaft $117.70 1 (before SN 00052) usually ships 5-16 days
4 175-3197 Sprocket $43.50 1 (before SN 00052) usually ships 1-5 days
5 175-3198 Woodruff key $3.00 1 (before SN 00052) usually ships 1-5 days
6 175-3258 Bolt M10-1.5 x 35mm hex head $3.60 2 usually ships 1-5 days
7 175-2305 Washer $3.60 2 ships same day
8 375-2595 U-joint (OBSOLETE) Call for price 1 usually ships 5-16 days
9 175-4926 Screw 5/16-18 x 3/8 set nylon lock $3.60 4 ships same day
10 175-3200 Square keyway $3.00 3 ships same day
11 175-3201 Flanged bearing $5.30 1 usually ships 5-16 days
12 175-3202 Screw M8-1.25 x 20mm $3.00 2 usually ships 5-16 days
13 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
14 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
15 175-3203 Upper steering shaft $192.50 1 usually ships 1-5 days
16 275-4653 Steering wheel $136.00 1 usually ships 5-16 days
17 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
18 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 1 ships same day
19 175-3206 Roller chain $16.78 1 ships same day
20 175-3207 Master link $3.60 1 usually ships 5-16 days
21 175-9930 Screw 1/4-20 x 1/4 aluminum set $4.50 2 (before SN 00052) usually ships 1-5 days
22 175-3196 Steering shaft $117.70 1 (after SN 00051) usually ships 5-16 days
23 275-5333 Steering wheel cap $3.60 1 usually ships 5-16 days
