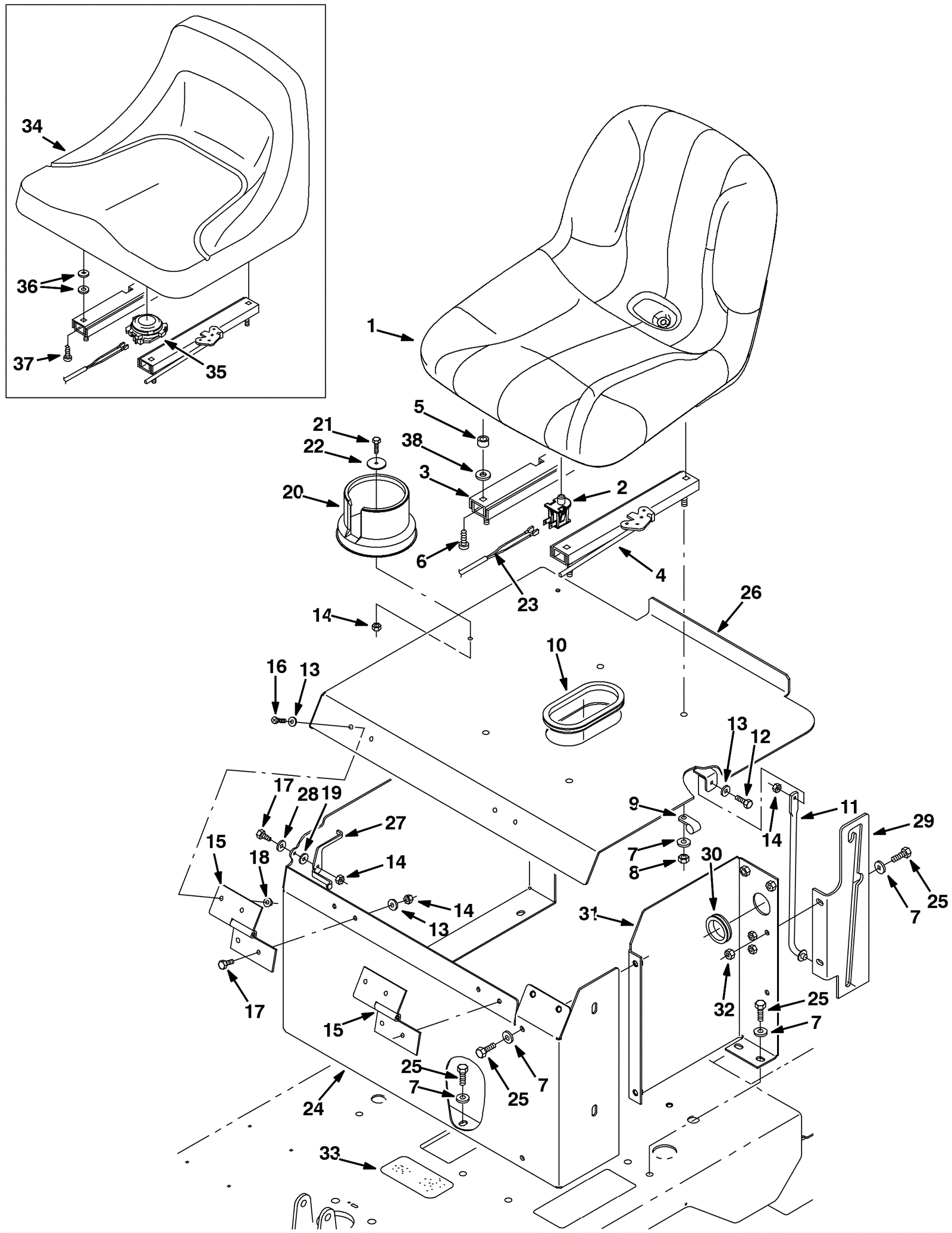

Seat Assembly

#PartDescription ReqNotesAvailability
1 275-9328 Seat kit (includes screw and spacer) 1 (after SN 01708)
2a 275-9280 Seat switch 1 (after SN 02699)
2b 375-3095 Seat switch 1 (between SN 1709 and SN 02699)
3 275-8069 11 1/2 inch seat adjuster rail (OBSOLETE)- SEE NOTE 1
4 275-8070 11 1/2 inch seat adjuster rail with latch 1
5 275-9333 Spacer 4 (after SN 01708)
6a 275-9278 SCREW, PAN, PHL, .31-18 X 1.00, G2 (Tennant Industrial) 4 (after SN 01708)
6b 999-0399 Screw 5/16-18 x 3/4 pan head phillips zinc plated 4 (before SN 01709)
7 999-0024 Washer 5/16 flat stainless steel 14 (qty 10 before SN 00048)
8 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
9 175-3168 P clamp 1
10 275-4795 Molding trim 1
11 575-3764 ROD WLDT, SEAT (Tennant Industrial) 1 (after SN 00047)
12 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 1 (qty 3 before SN 00048)
13 999-0016 Washer 1/4 flat plain finish 9 (qty 11 before SN 00048)
14 999-0469 Nut M6-1 nylon insert lock zinc plated 7 (qty 8 before SN 00048)
15 175-3183 Hinge 2
16a 999-1041 Screw M6-1 x 12mm pan head phillips stainless steel 4 (after SN 00047)
16b 175-5113 Bolt M6 x 12mm hex head 4 (before SN 00048)
17 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 5 (qty 4 before SN 00048)
18 999-6694 Nut M6-1 hex serrated flange stainless steel 4
19 175-3187 Washer nylon 1
20 175-3188 Cup holder 1
21 999-0518 Bolt M6-1 x 25mm hex head full thread zinc 1
22 999-1288 Washer 1/4 x 1 OD fender stainless steel 1
23 175-3190 Seat harness 1
24a 375-2592 Seat support (OBSOLETE) 1 (after SN 00047)
24b 275-2433 Support weldment (OBSOLETE) 1 (before SN 00048)
25 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 14 (qty 8 before SN 00048)
26 375-2593 Seat with decal plate weldment (OBSOLETE) 1
27 375-2594 Seat lock lever (OBSOLETE) 1 (after SN 00047)
28 999-0123 Washer 1/4 SAE flat zinc plated 1 (after SN 00047)
29 475-3550 BRACKET, ROD, PROP 1 (after SN 00047)
30 175-3446 Rubber grommet 1 (after SN 00047)
31 375-3111 Housing lift tool 1 (after SN 00047)
32 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2 (after SN 00047)
33 375-3110 Non-skid tread 1 (after SN 00047)
34 275-9328 Seat kit (includes screw and spacer) 1 (before SN 01709)
35 175-3173 Seat switch 1 (replaced by 475-4136) (before SN 01709)
36 175-3176 Washer 3/8 flat steel plated 8 (before SN 01709)
37 999-0399 Screw 5/16-18 x 3/4 pan head phillips zinc plated 4 (before SN 01709)
38 175-3176 Washer 3/8 flat steel plated 4
N/S 175-3181 Safety support arm 1 (before SN 00048)
N/S 175-3186 Seat bracket lock (OBSOLETE) 1 (before SN 00048)
N/S 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 4 (before SN 00048)
N/S 175-2367 Steel plated washer 4 (before SN 00048)
