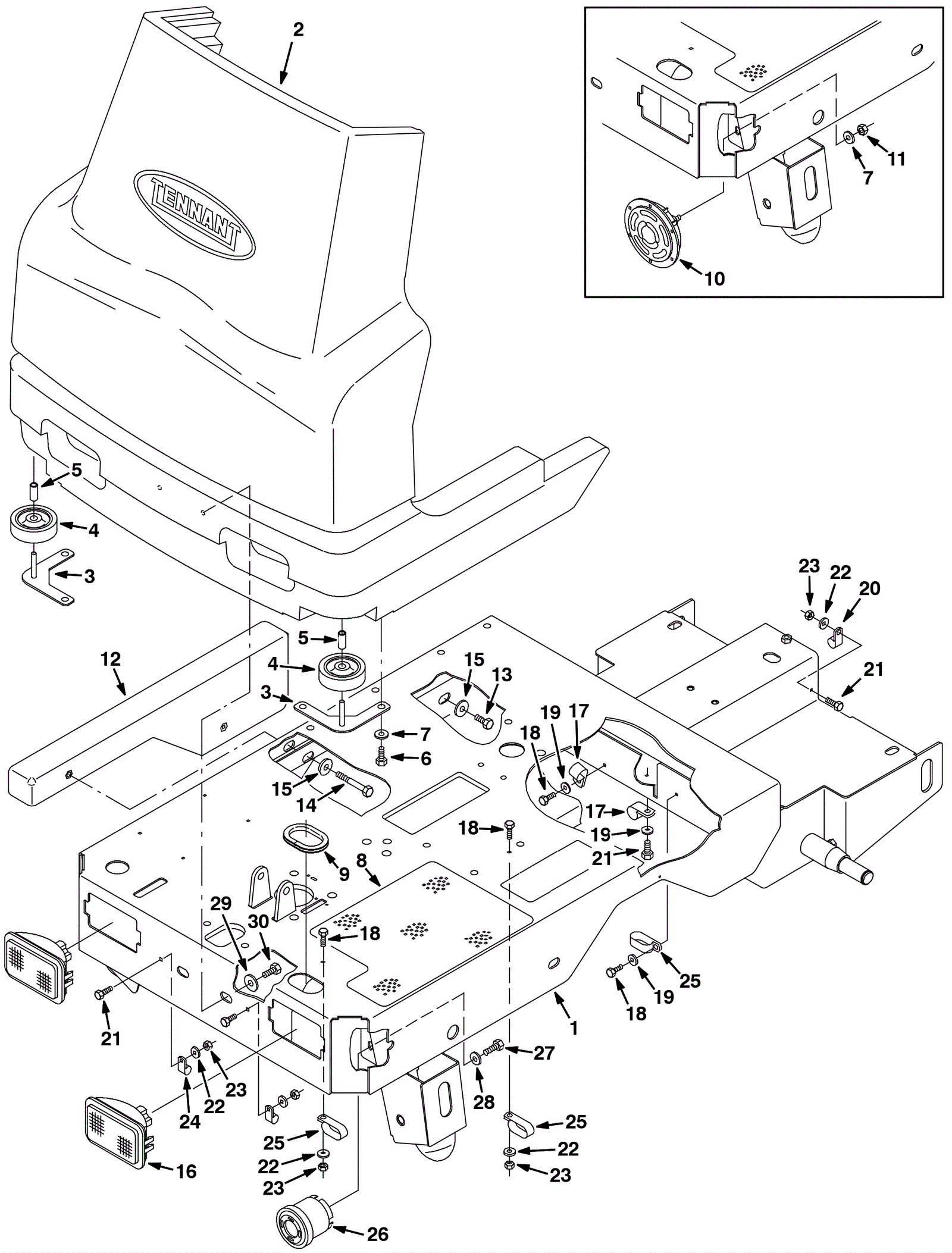

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-1963
|
Frame |
1 |
|
|
2 |
175-3154
|
Front trim shroud |
1 |
|
|
3 |
175-3155
|
Mounting wheel plate weldment |
2 |
|
|
4 |
175-3156
|
Bumper wheel |
2 |
|
|
5 |
175-4916
|
Sleeve |
2 |
|
|
6 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
1 |
|
|
7 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
8 |
175-3158
|
Non-skid tread |
1 |
|
|
9 |
275-1964
|
Molding (OBSOLETE) |
1 |
|
|
10 |
175-3160
|
Horn |
1 |
|
|
11 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
12 |
475-3696
|
PANEL KIT, TANK, FILLER, RM-TL [7100] |
1 |
|
|
13 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
1 |
|
|
14 |
175-3163
|
Screw M8-1.25 x 60mm hex head |
1 |
|
|
15 |
175-2367
|
Steel plated washer |
2 |
|
|
16a |
175-3164
|
Headlight (Tennant Industrial) |
2 |
(includes 16b) |
|
16b |
175-3165
|
Lamp |
2 |
|
|
17 |
175-2260
|
P clamp |
2 |
|
|
18 |
999-1087
|
Bolt M6-1 x 25mm hex head stainless steel |
4 |
|
|
19 |
999-0016
|
Washer 1/4 flat plain finish |
3 |
|
|
20 |
175-3168
|
P clamp |
1 |
|
|
21 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
3 |
|
|
22 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
23 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
4 |
|
|
24 |
175-3170
|
P clamp |
1 |
|
|
25 |
175-3171
|
Cable clamp |
3 |
|
|
26 |
275-2437
|
Horn |
1 |
|
|
27 |
999-0633
|
Bolt 1/4-20 x 5/8 hex head stainless steel |
1 |
|
|
28 |
999-0632
|
Washer 1/4 split lock stainless steel |
1 |
|
|
29 |
175-2367
|
Steel plated washer |
1 |
|
|
30 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
1 |
|
|
