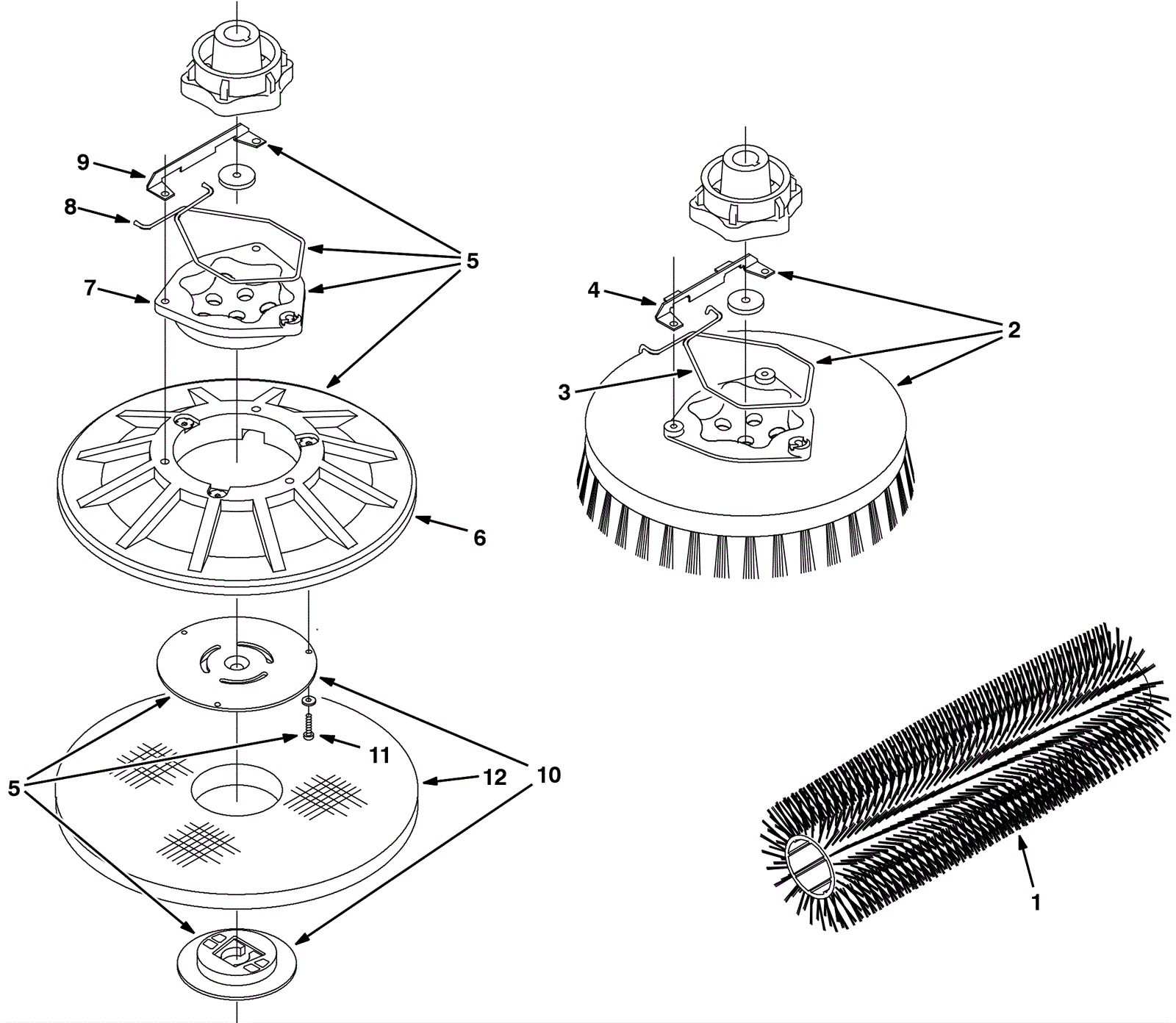

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
996-1039
|
Polypropelene grout scrubbing brush - CYLINDRICAL |
2 |
(28 inch) |
|
1b |
996-1040
|
Polypropelene scrubbing brush - CYLINDRICAL |
2 |
(28 inch) |
|
1c |
996-1041
|
Nylon scrubbing brush - CYLINDRICAL |
2 |
(28 inch) |
|
1d |
996-1042
|
Abrasive scrubbing brush - CYLINDRICAL |
2 |
(28 inch) |
|
1e |
996-1045
|
32 inch polypropelene grout scrubbing brush - CYLINDRICAL |
2 |
(32 inch) |
|
1f |
175-2069
|
32 inch polypropelene scrubbing brush - CYLINDRICAL |
2 |
(32 inch) |
|
1g |
175-2403
|
32 inch soft nylon scrubbing brush - CYLINDRICAL |
2 |
(32 inch) |
|
1h |
175-2404
|
32 inch abrasive scrubbing brush - CYLINDRICAL |
2 |
(32 inch) |
|
2a |
996-1035
|
14 inch nylon scrubbing brush |
2 |
(includes 3-4) |
|
2b |
375-3805
|
Brush assembly disk (PYP) |
2 |
(includes 3-4) |
|
2c |
375-3806
|
Brush assembly disk (SAB) |
2 |
(includes 3-4) |
|
2d |
996-1034
|
16 inch nylon scrubbing brush |
2 |
(includes 3-4) |
|
2e |
996-1037
|
16 inch polypropelene scrubbing brush |
2 |
(includes 3-4) |
|
2f |
275-6002
|
16 inch super abrasive scrubbing brush |
2 |
(includes 3-4) |
|
2g |
991-9271
|
BRUSH ASSY, DISK,14 inch POLY |
2 |
(NON-OEM) |
|
3 |
175-2071
|
Brush retaining spring |
1 |
|
|
4b |
175-2072
|
Spring retainer bracket |
1 |
|
|
4a |
991-3047
|
Spring retainer bracket |
1 |
(NON-OEM) |
|
5a |
375-1205
|
14 inch pad driver assembly |
2 |
(includes 6a, 7-11) |
|
5b |
175-2405
|
Pad driver assembly |
2 |
(includes 6b, 7-11) |
|
5c |
991-9290
|
PAD DRIVER ASSY. 14 inch |
1 |
(NON-OEM) |
|
6a |
996-1388
|
Pad driver |
1 |
(14 inch) |
|
6b |
996-1389
|
Pad driver |
1 |
(16 inch) |
|
7 |
175-2335
|
Brush adaptor |
1 |
|
|
8 |
175-2071
|
Brush retaining spring |
1 |
|
|
9a |
175-2072
|
Spring retainer bracket |
1 |
|
|
9b |
991-3047
|
Spring retainer bracket |
1 |
(NON-OEM) |
|
10 |
275-6264
|
Pad centering device |
1 |
|
|
11 |
175-2079
|
Screw M4-.07 x 35mm pan head stainless steel |
3 |
|
|
12a |
175-4904
|
Polish pad 14 inch white |
2 |
|
|
12b |
175-4905
|
14 inch buffing pad (red) |
2 |
|
|
12c |
175-4906
|
14 inch scrubbing pad (blue) (pkg of 4) |
2 |
|
|
12d |
255-1492
|
14 inch premium brown stripping pad (pkg of 5) |
2 |
|
|
12e |
255-1490
|
14 inch premium black stripping pad (pkg of 5) |
2 |
|
|
12f |
375-1634
|
14 inch stripping pad (maroon) |
2 |
|
|
12g |
255-1692
|
16 inch premium brown stripping pad (pkg of 5) |
2 |
|
|
12h |
175-0518
|
16 inch scrubbing pad (blue)(each) |
2 |
|
|
12i |
175-0519
|
16 inch buffing pad (red)(each) |
2 |
|
|
12j |
255-1620
|
16 inch premium white polishing pad (pkg of 5) |
2 |
|
|
12k |
175-4909
|
Black strip head pad |
2 |
|
|
12l |
255-1647
|
16 inch Redwood maroon floor prep pad (pkg of 10) |
2 |
|
|
