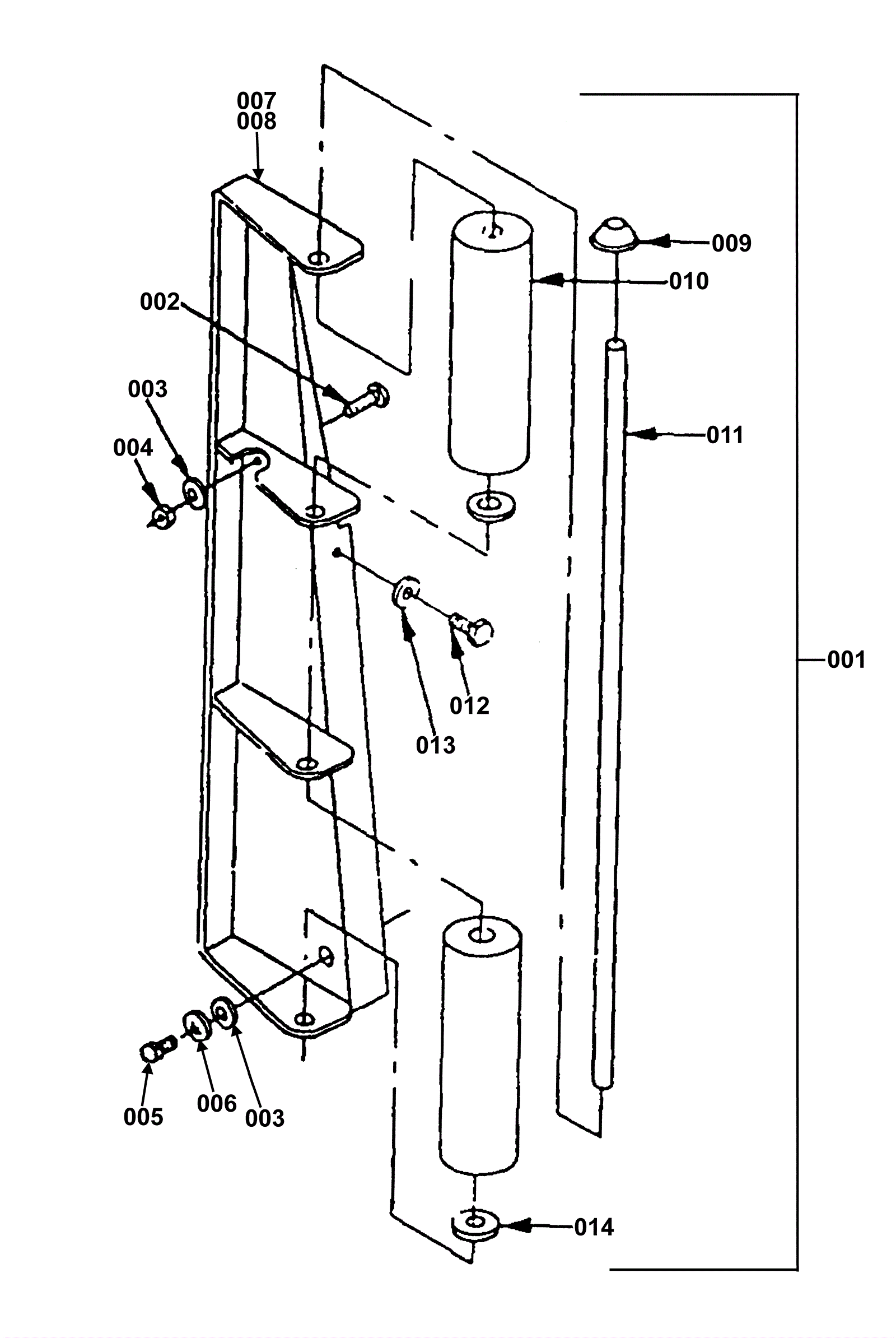

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-5173
|
Complete wall roller kit (OBSOLETE) |
1 |
|
|
002 |
999-1146
|
Screw 5/16-18 x 3/4 truss head phillips stainless steel |
2 |
|
|
003 |
175-0399
|
Washer 8mm plain (OBSOLETE) |
4 |
|
|
005 |
999-0517
|
Bolt M8-1.25 x 16mm hex head full thread zinc |
2 |
|
|
006 |
999-1053
|
Washer 5/16 internal star lock stainless steel |
2 |
|
|
007 |
175-5176
|
Lefthand roller bracket (OBSOLETE) |
1 |
|
|
008 |
175-5177
|
Righthand roller bracket (OBSOLETE) |
1 |
|
|
009 |
175-5178
|
Push-on cap (OBSOLETE) |
2 |
|
|
010 |
175-5179
|
Roller (OBSOLETE) |
6 |
|
|
011 |
175-5180
|
Rod |
2 |
|
|
012 |
999-0436
|
Bolt M6-1 x 10mm hex head full thread zinc (350B) |
4 |
|
|
013 |
N/A
|
Not available |
4 |
(not available) Washer |
|
014 |
999-0187
|
Washer 1/2 flat plain finish |
6 |
|
|
