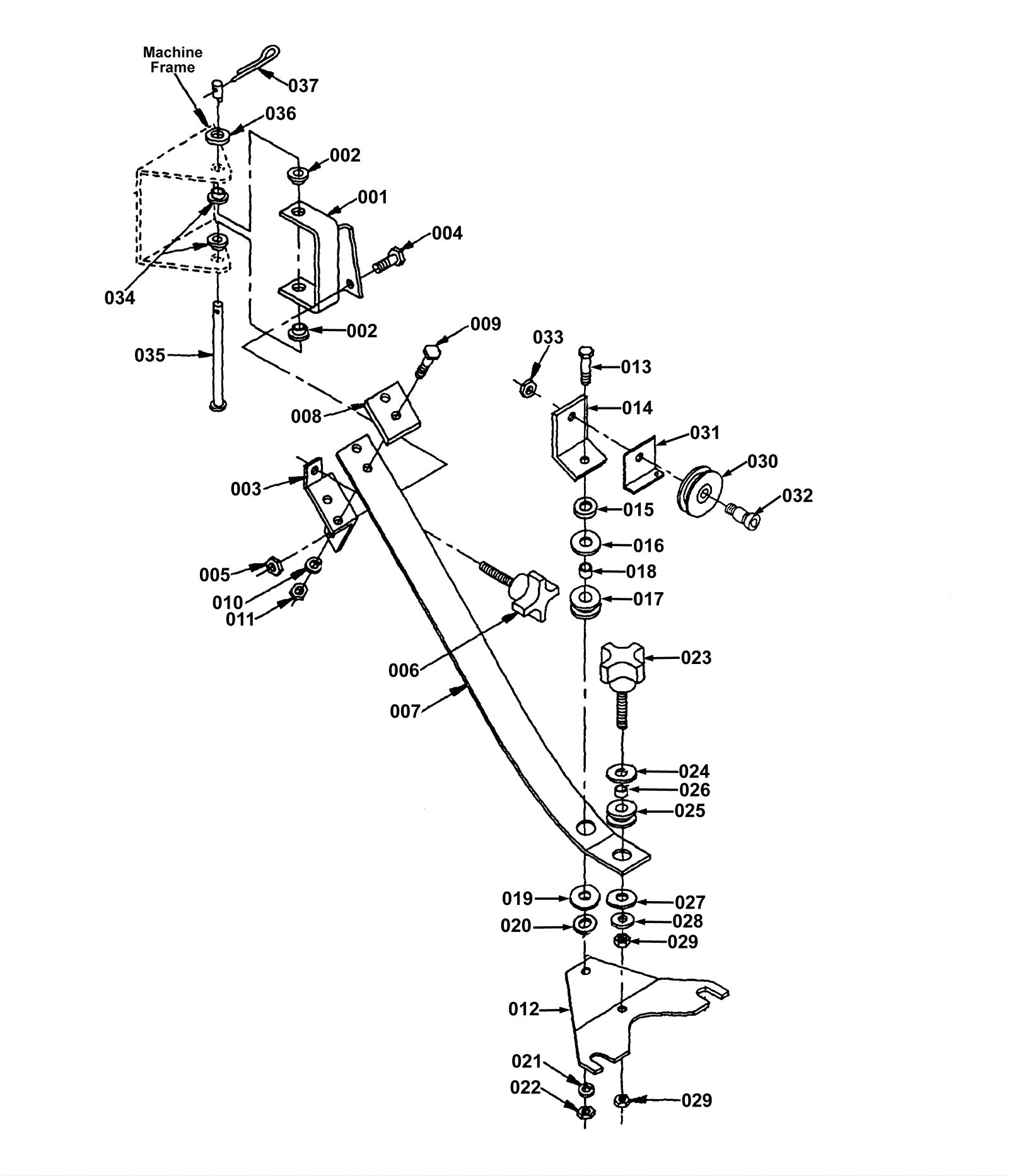

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
N/A
|
Not available |
1 |
(Bracket) |
|
002 |
175-5163
|
Flanged bearing |
2 |
|
|
003 |
175-5164
|
Squeegee spring mounting bracket (OBSOLETE) |
1 |
|
|
004 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
1 |
|
|
005 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
006 |
N/A
|
Not available |
1 |
Star knob |
|
007 |
175-5166
|
Squeegee flat spring (OBSOLETE) |
1 |
|
|
008 |
175-5167
|
Spring back-up plate (OBSOLETE) |
1 |
|
|
010 |
999-0632
|
Washer 1/4 split lock stainless steel |
2 |
|
|
011 |
999-0439
|
Nut M6-1 hex coarse thread |
2 |
|
|
012 |
175-5168
|
Squeegee mounting bracket (OBSOLETE) |
1 |
|
|
014 |
175-5169
|
Squeegee sheave mounting bracket (OBSOLETE) |
1 |
|
|
015 |
175-0399
|
Washer 8mm plain (OBSOLETE) |
1 |
|
|
017 |
175-5170
|
Grommet (OBSOLETE) |
1 |
|
|
018 |
175-5171
|
Sleeve |
1 |
|
|
020 |
175-0399
|
Washer 8mm plain (OBSOLETE) |
2 |
|
|
021 |
175-0382
|
Washer lock spring (OBSOLETE) |
1 |
|
|
022 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
023 |
N/A
|
Not available |
1 |
Star knob |
|
025 |
175-5170
|
Grommet (OBSOLETE) |
1 |
|
|
026 |
175-5171
|
Sleeve |
1 |
|
|
028 |
175-0399
|
Washer 8mm plain (OBSOLETE) |
1 |
|
|
029 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
|
030 |
175-5028
|
Pulley cable (OBSOLETE) |
1 |
|
|
031 |
175-5029
|
Squeegee sheave bracket (OBSOLETE) |
1 |
|
|
032 |
999-1256
|
Screw 5/16-18 x 3/8 x 1 socket head shoulder |
1 |
|
|
033 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
|
034 |
175-5163
|
Flanged bearing |
2 |
|
|
035 |
175-5172
|
Clevis pin |
1 |
|
|
036 |
175-5090
|
Washer plain (OBSOLETE) |
1 |
|
|
037 |
175-5080
|
Cotter pin |
1 |
|
|
N/S |
175-5162
|
Squeegee link kit (OBSOLETE) |
|
|
|
