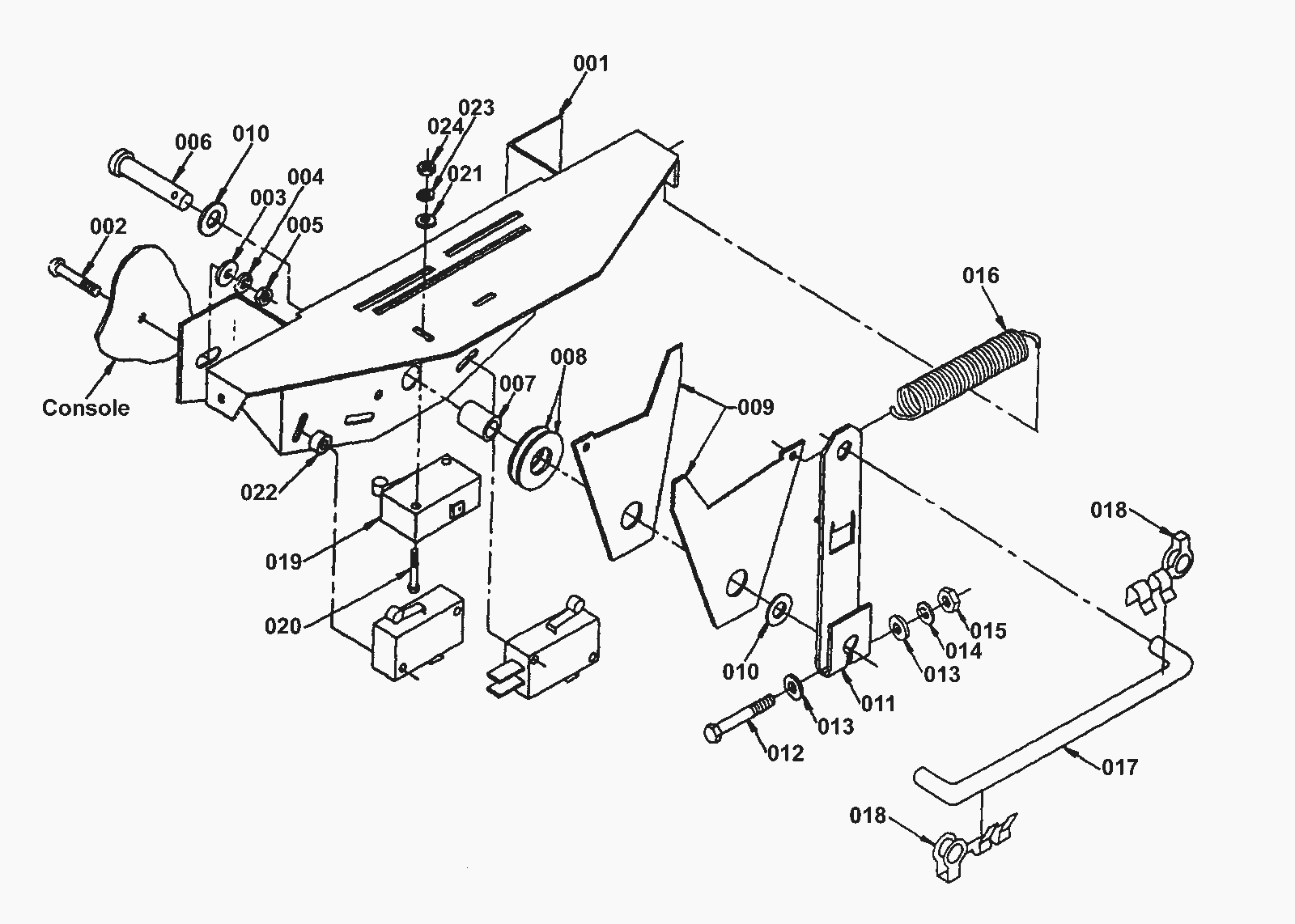

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-5137
|
Speed control pot/switch bracket (OBSOLETE) |
1 |
|
|
002 |
999-1029
|
Screw 10-24 x 5/8 truss head phillips stainless steel |
2 |
|
|
003 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
004 |
999-0053
|
Washer #10 split lock plain finish |
2 |
|
|
005 |
999-0356
|
Nut 10-24 lock stainless steel |
2 |
|
|
006 |
175-5138
|
Clevis pin (OBSOLETE) |
1 |
|
|
007 |
175-2042
|
Metal spacer .26id .43lg 38od (OBSOLETE) |
1 |
|
|
008 |
175-2043
|
Washer 19 x 100 x 3 nylon (OBSOLETE) |
2 |
|
|
009 |
175-2044
|
Potentiometer centering finger (OBSOLETE) |
2 |
|
|
010 |
N/A
|
Not available |
2 |
(not available) Washer |
|
011 |
175-2047
|
Potentiometer arm clamp |
1 |
|
|
012 |
175-0457
|
Screw 6-32 x 1 socket head (OBSOLETE) |
1 |
|
|
013 |
999-0377
|
Washer 6 SAE flat plain finish |
2 |
|
|
014 |
999-0051
|
Washer #6 medium split lock |
1 |
|
|
015 |
999-0195
|
Nut 6-32 hex plain |
1 |
|
|
016 |
175-5140
|
Extension spring |
2 |
|
|
017 |
175-5141
|
Rod handlebar to pot (OBSOLETE) |
1 |
|
|
018 |
175-2046
|
Linkage clip rod (OBSOLETE) |
2 |
|
|
019 |
175-5142
|
Snap switch (OBSOLETE) |
3 |
|
|
020 |
175-5143
|
Screw 4-40 x 1 round head (OBSOLETE) |
6 |
|
|
021 |
999-1521
|
Washer M3 flat stainless steel |
10 |
|
|
022 |
175-5145
|
Nylon spacer (OBSOLETE) |
4 |
|
|
023 |
175-5146
|
Washer 4 lock spring (OBSOLETE) |
6 |
|
|
024 |
175-5147
|
Nut hex standard zinc plate (OBSOLETE) |
6 |
|
|
