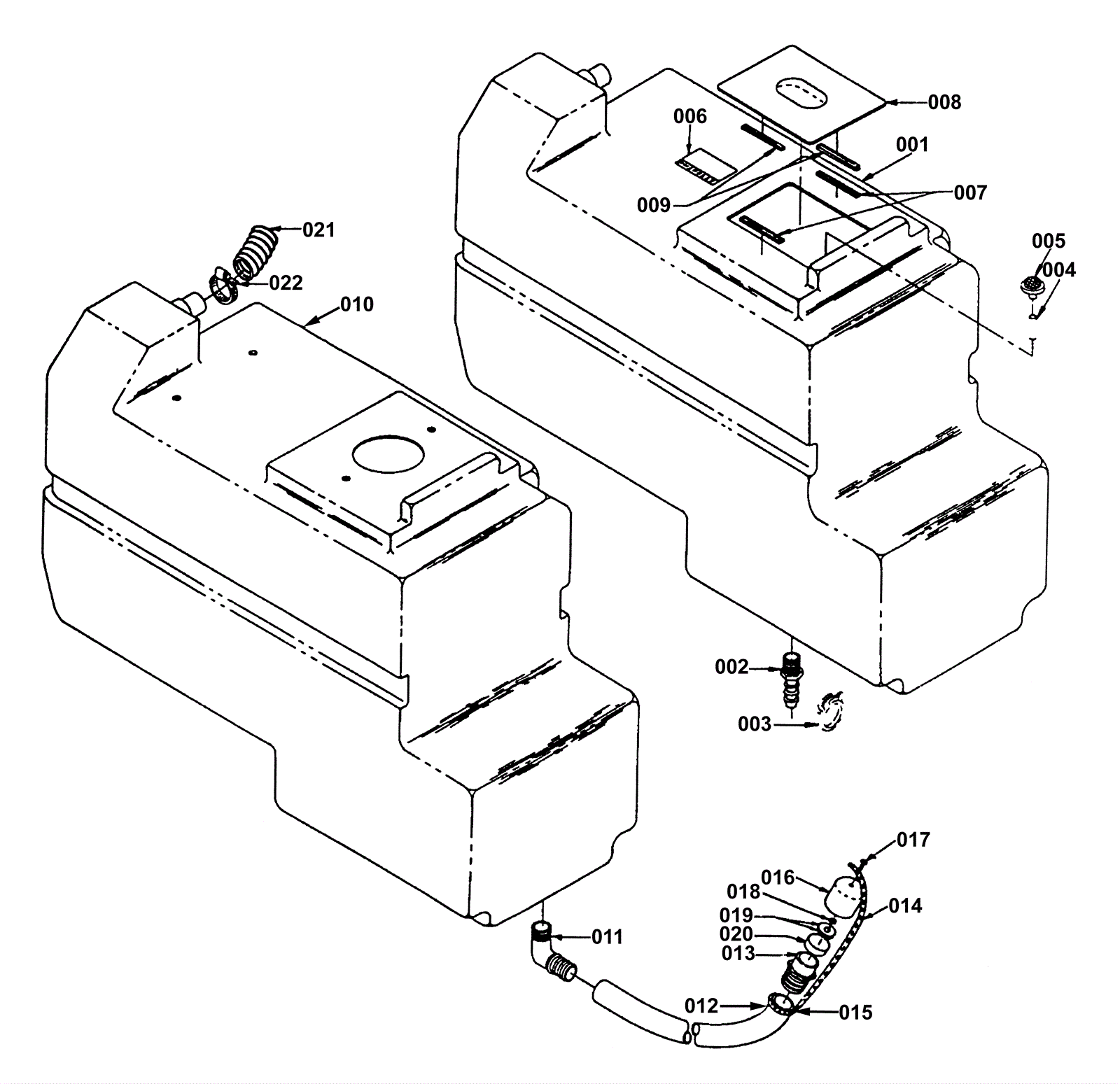

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-5117
|
Solution tank (OBSOLETE) |
1 |
|
|
002 |
175-8668
|
Plastic fitting |
1 |
|
|
003 |
175-5118
|
Hose clamp (OBSOLETE) |
1 |
|
|
004a |
175-0306
|
20 inch pad driver assembly |
1 |
|
|
004b |
991-3091
|
19 inch VELCRO FACE PAD DRIVER W/PLATE |
1 |
(NON-OEM) |
|
005 |
175-5120
|
Solution tank strainer (OBSOLETE) |
1 |
|
|
006 |
175-5121
|
Hot water decal |
1 |
|
|
007 |
175-5122
|
Water valve |
1 |
|
|
008 |
175-5123
|
Solution tank cover (OBSOLETE) |
1 |
|
|
009 |
175-5124
|
Loop fastener (OBSOLETE) |
1 |
|
|
010 |
175-5125
|
Recovery tank (OBSOLETE) |
1 |
|
|
011 |
175-5126
|
Elbow fitting (OBSOLETE) |
1 |
|
|
012 |
175-5127
|
Clear hose (OBSOLETE) |
1 |
|
|
013 |
175-5128
|
Fitting 1.25 hose X npt (OBSOLETE) |
1 |
|
|
014 |
175-5129
|
Ball chain #10 stainless steel |
1 |
|
|
016 |
175-5130
|
Plastic cap with hole (OBSOLETE) |
1 |
|
|
017 |
999-1559
|
Screw M4-.7 x 12mm pan head slotted stainless steel |
1 |
|
|
018 |
999-0955
|
Nut M4-.7 hex nylon lock |
1 |
|
|
019 |
175-6565
|
Polypropelene washer |
2 |
|
|
020 |
175-5134
|
Seal for cap (OBSOLETE) |
1 |
|
|
021 |
175-2051
|
Recovery hose (OBSOLETE) |
1 |
|
|
022 |
175-2057
|
Hose clamp |
1 |
|
|
N/S |
175-5136
|
Handle grip sleeve |
2 |
|
|
N/S |
175-5135
|
Baffule 5/32 drill bits (OBSOLETE) |
1 |
|
|
