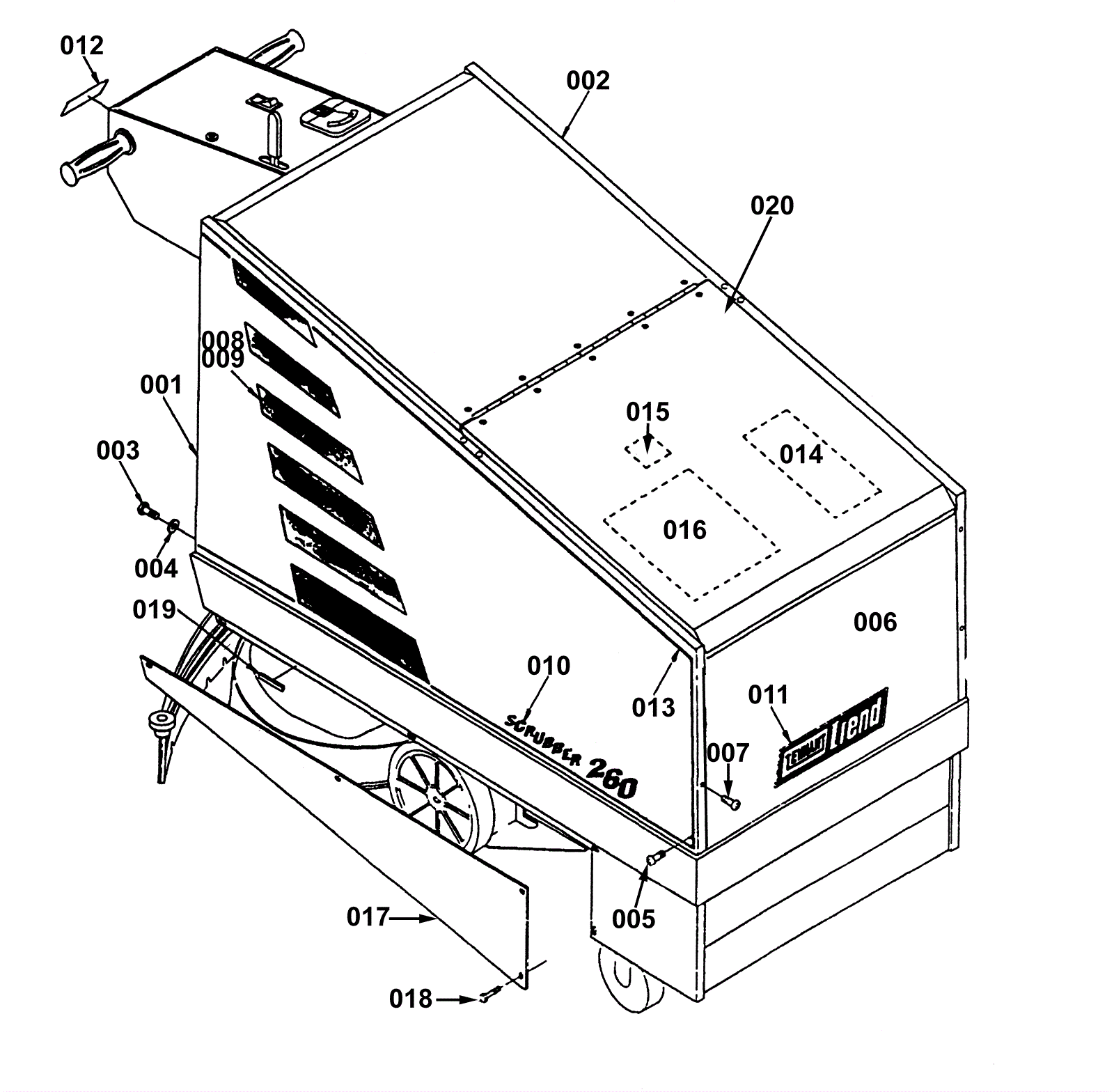

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-5098
|
15 foot vacuum hose |
1 |
|
|
002 |
175-5099
|
15 foot hose assembly kit |
1 |
|
|
003 |
999-0436
|
Bolt M6-1 x 10mm hex head full thread zinc (350B) |
6 |
|
|
004 |
N/A
|
Not available |
6 |
(not available) Washer |
|
005 |
999-1513
|
Screw M8-1.25 x 10mm button head socket plain finish |
2 |
|
|
006 |
175-5101
|
Front panel (OBSOLETE) |
1 |
|
|
007 |
175-5102
|
Screw 6mm X 8mm button head |
6 |
|
|
008 |
175-5103
|
Decal side stripes righthand (OBSOLETE) |
1 |
|
|
009 |
175-5104
|
Decal side stripes lefthand (OBSOLETE) |
1 |
|
|
010 |
175-5105
|
Decal inchscrubber 260 inch (OBSOLETE) |
2 |
|
|
011 |
175-5106
|
Mounting hose strap |
1 |
|
|
012 |
175-5107
|
Decal tennant trend (OBSOLETE) |
1 |
|
|
013 |
175-5108
|
25 foot pressure hose |
1 |
|
|
014 |
175-5109
|
Decal maintenance (OBSOLETE) |
1 |
|
|
015 |
175-5110
|
Warning decal (OBSOLETE) |
1 |
|
|
016 |
175-5111
|
25 foot vacuum hose |
1 |
|
|
017 |
175-5112
|
Door side (OBSOLETE) |
2 |
|
|
018 |
175-5113
|
Bolt M6 x 12mm hex head |
8 |
|
|
020 |
175-0454
|
Plastic hood |
2 |
|
|
N/S |
175-5115
|
Green touch up paint (OBSOLETE) |
|
|
|
N/S |
175-5116
|
White touch up paint |
|
|
|
