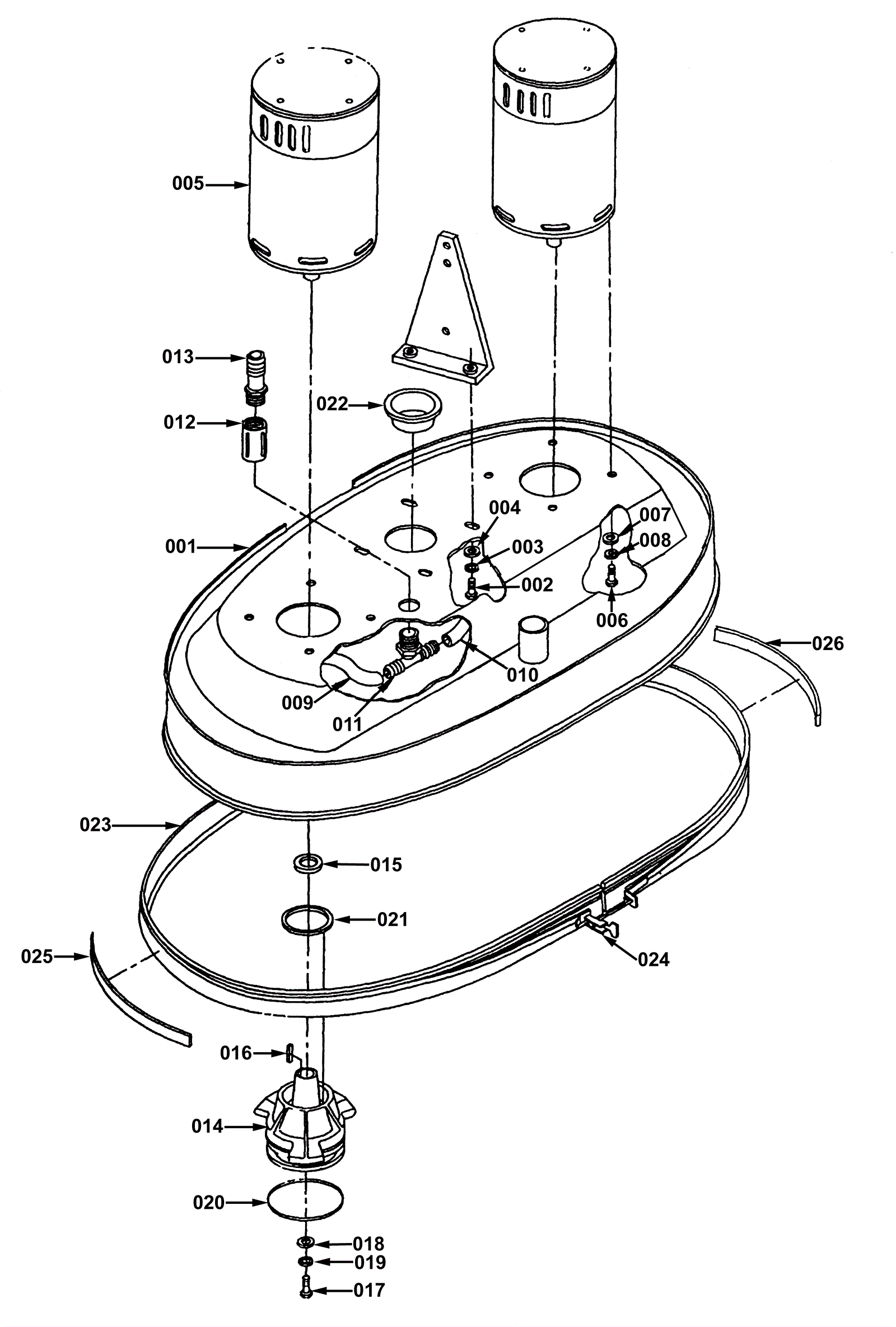

Scrubber Head

#PartDescription ReqNotesAvailability
001 175-5047 Scrub head (OBSOLETE) 1
003 175-0382 Washer lock spring (OBSOLETE) 4
004 175-0399 Washer 8mm plain (OBSOLETE) 4
005 175-3226 Insulated stand off 2
006 175-5050 Bolt 25-20 UNC X 3/4 hex head stainless steel (OBSOLETE) 8
007 999-0016 Washer 1/4 flat plain finish 8
008 999-0632 Washer 1/4 split lock stainless steel 8
009 175-1043 3 inch hose 1
010 175-5052 Hose 1
011 175-5053 Tee fitting (OBSOLETE) 1
012 175-5054 Coupling fitting (OBSOLETE) 1
013 175-8668 Plastic fitting 1
014 175-5055 Brush/pad lobed friction hub (OBSOLETE) 2
015 175-0406 Washer.77 flate stainless steel 2
016 175-0373 Key shaft (OBSOLETE) 2
017 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 2
018 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
019 175-0382 Washer lock spring (OBSOLETE) 2
020 175-5057 O-ring (OBSOLETE) 2
021 N/A Not available 2 (Decal)
022 175-5059 Plug (OBSOLETE) 1
023 175-5060 Skirt (OBSOLETE) 1
024 175-5061 Scrubber skirt band assembly 1
025 175-5062 Skid strip 1
026 175-5062 Skid strip 1
N/S 175-5065 Washer flat (OBSOLETE)
N/S 175-5064 Female coupling
N/S 175-5063 Friction ring (OBSOLETE)
