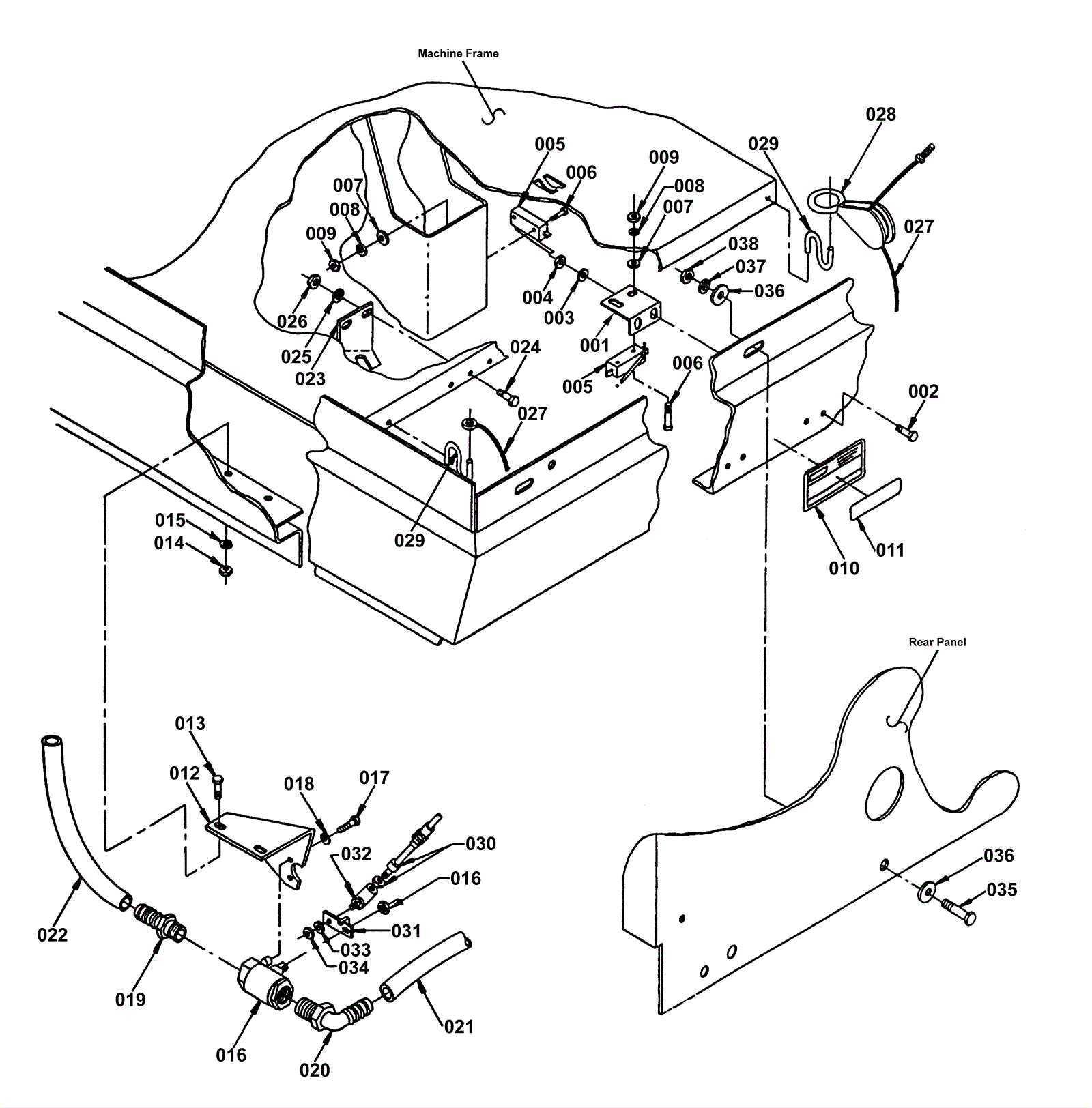

Rear Machine Frame

#PartDescription ReqNotesAvailability
001 175-0483 Actuator linkage switch bracket (OBSOLETE) 1
002 999-9104 Screw M4-.7 x 10mm hex head stainless steel 2
003 999-0051 Washer #6 medium split lock 2
004 999-0869 Nut M4-.7 hex coarse thread plain finish 2
005 675-9886 Snap switch 2
006 999-1167 Bolt 6-32 x 1 hex head stainless steel 4
007 999-0377 Washer 6 SAE flat plain finish 4
009 999-0195 Nut 6-32 hex plain 4
010 175-0489 Recovery tank cover kit 1
011 175-0490 Model ID decal (OBSOLETE) 1
012 175-0491 Clevis pin (OBSOLETE) 1
013 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
014 999-0439 Nut M6-1 hex coarse thread 2
015 999-0632 Washer 1/4 split lock stainless steel 2
016 175-2010 Hose hanger hook 1
017 175-0495 Bolt 10-24 x .38 hex head (OBSOLETE) 2
018 999-0053 Washer #10 split lock plain finish 2
019 175-8668 Plastic fitting 1
020 175-7834 Plastic fitting 1
021 175-0497 Hose 1/2 x 12 inch (clear) 1
022 N/A Not available 1 Squeegee lift cable
023 175-0498 Water valve cable bracket (OBSOLETE) 1
024 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
025 999-0632 Washer 1/4 split lock stainless steel 2
026 999-0439 Nut M6-1 hex coarse thread 2
027 N/A Not available 1 Squeegee lift cable
028 175-0499 1 1/2 inch pulley block 1
029a 275-4699 Paper filter bags (package of 10) 2
030 175-2022 Squeegee tool 1
031 175-6535 Vacuum fan exhaust muffler 1
032 175-2009 WASHER, SEALING, 0.28B 0.75D SS, NEO 2
033 999-0053 Washer #10 split lock plain finish 2
034 999-0460 Nut 10-32 hex 2
035 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 3
036 175-0399 Washer 8mm plain (OBSOLETE) 6
037 175-0382 Washer lock spring (OBSOLETE) 3
038 999-0496 Nut M8-1.25 nylon insert lock stainless steel 3
N/S 175-5066 15 foot pressure hose 1
