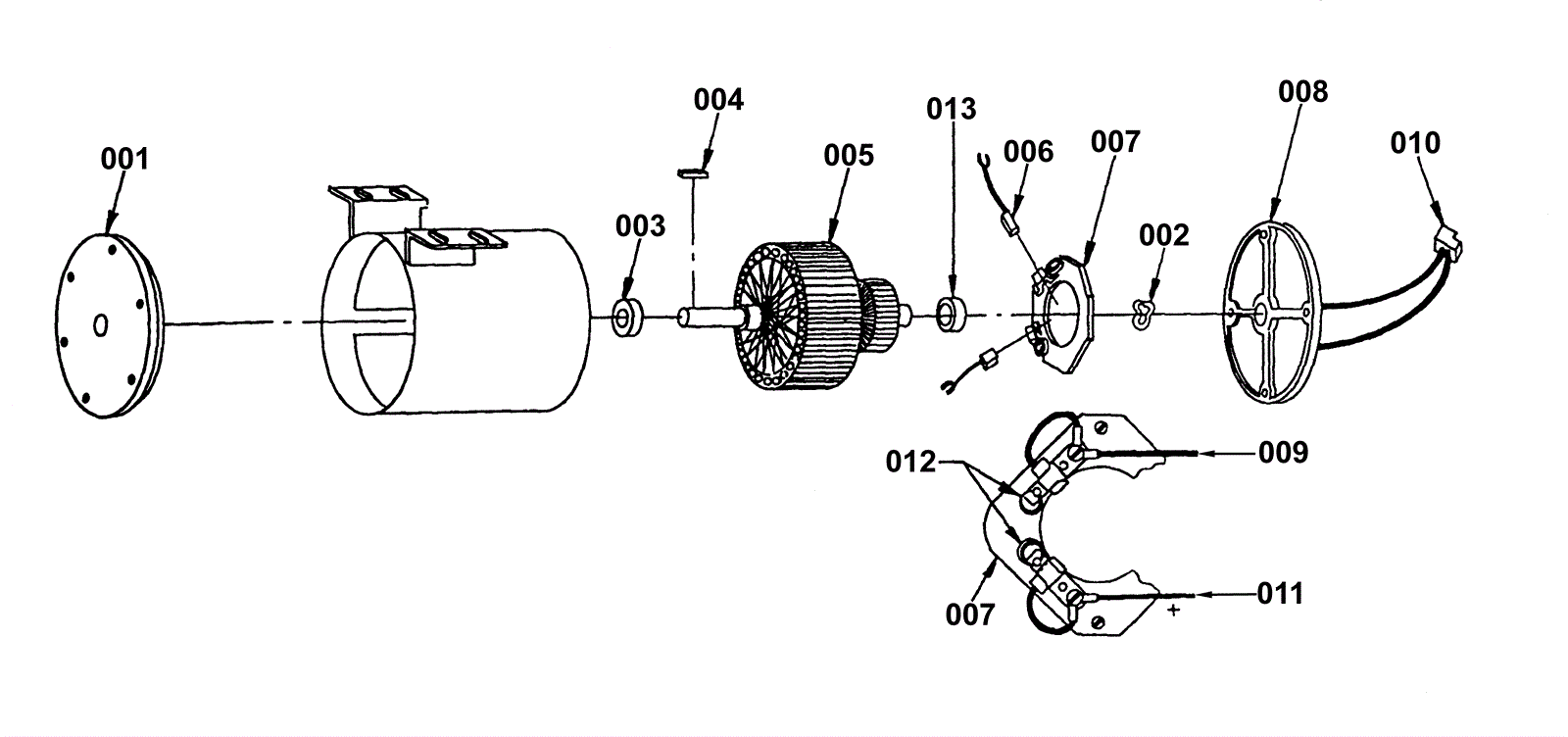

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-0428
|
Bracket |
1 |
|
|
002 |
175-0370
|
Helical washer |
1 |
|
|
003 |
175-0957
|
Brush bearing |
1 |
|
|
004 |
175-0415
|
Woodruff key (OBSOLETE) |
1 |
|
|
005 |
175-0429
|
Armature assembly |
1 |
|
|
006 |
175-0430
|
Carbon brush (sold individually) |
1 |
(Set of 2) |
|
007 |
175-0431
|
Brush board assembly (OBSOLETE) |
1 |
|
|
008 |
175-0432
|
Commutator bracket (OBSOLETE) |
1 |
|
|
009 |
175-0433
|
Negative lead |
1 |
|
|
010 |
175-0434
|
Debris lip (OBSOLETE) |
1 |
|
|
011 |
175-0435
|
Positive lead |
1 |
|
|
012 |
175-0375
|
Brush spring (pkg of 4) |
1 |
(Set of 2) |
|
013 |
175-0957
|
Brush bearing |
1 |
|
|
