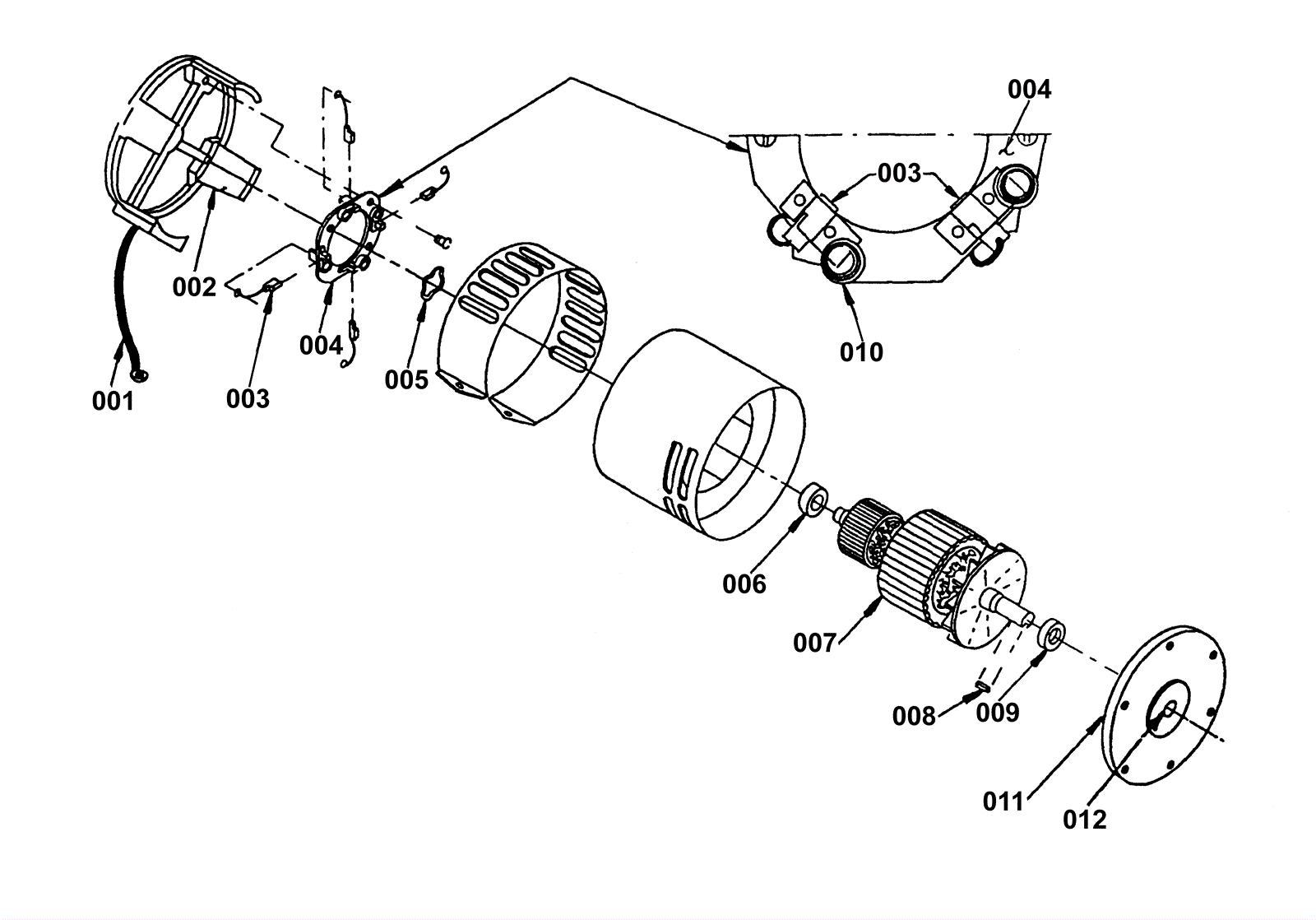

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-0366
|
Lead assembly (OBSOLETE) |
1 |
|
|
002 |
175-0367
|
Brush weldment housing (OBSOLETE) |
1 |
|
|
003 |
175-0368
|
Carbon brush (sold individually) |
4 |
(Sold each, must order 4 for a full set) |
|
004 |
175-0369
|
Brush board assembly (OBSOLETE) |
1 |
(items 3 & 10 included) |
|
005 |
175-0370
|
Helical washer |
1 |
|
|
006 |
175-0957
|
Brush bearing |
1 |
|
|
007 |
175-0372
|
Armature assembly (OBSOLETE) |
1 |
(items 6 & 9 included) |
|
008 |
175-0373
|
Key shaft (OBSOLETE) |
1 |
|
|
009 |
175-0374
|
Fitting bracket (OBSOLETE) |
1 |
|
|
010 |
175-0375
|
Brush spring (pkg of 4) |
4 |
|
|
011 |
175-0376
|
Back end bracket |
1 |
|
|
012 |
175-0377
|
Oil seal |
1 |
|
|
