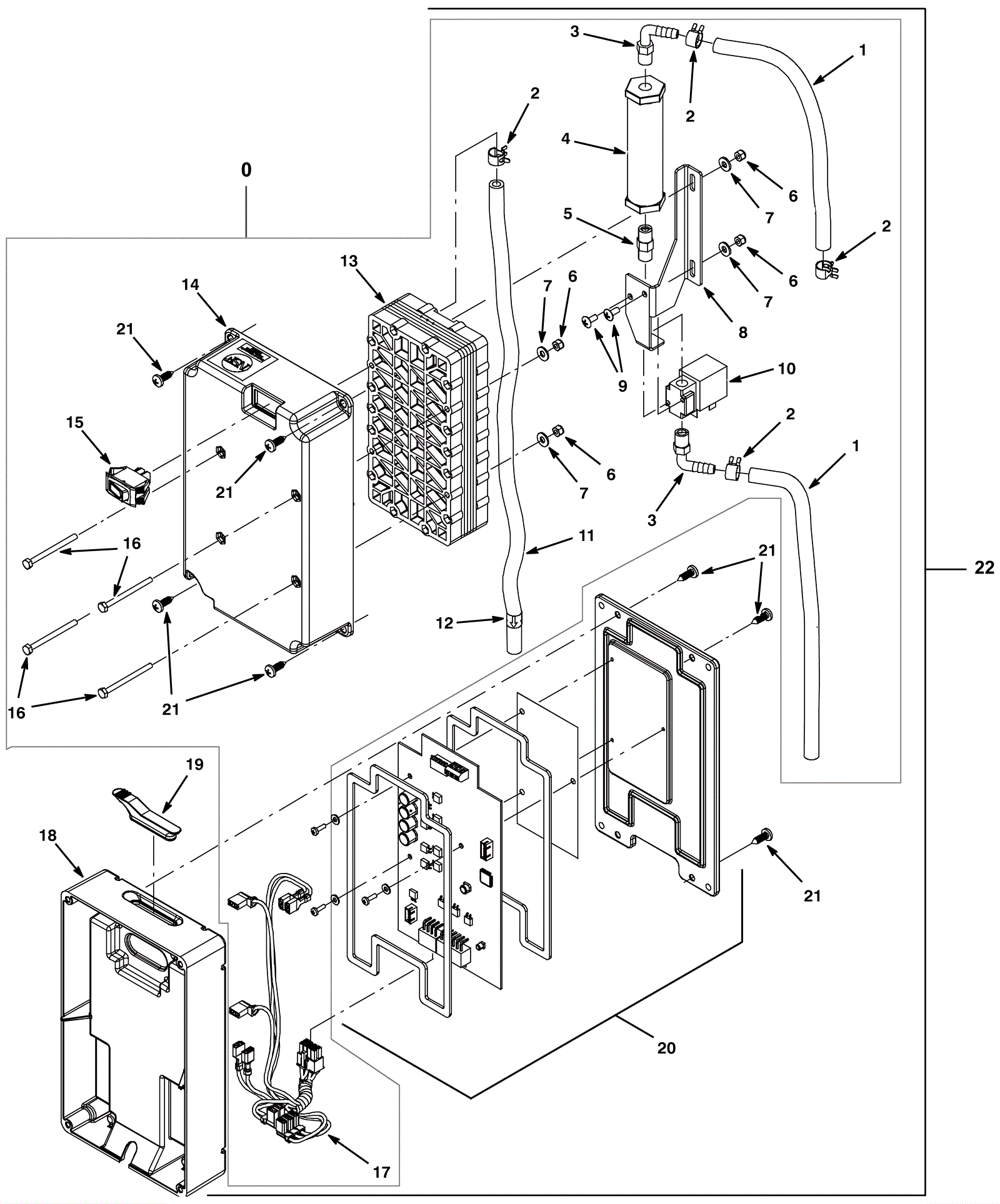

T3 ORBITAL ec-H2O Module Assembly

#PartDescriptionPriceReqNotesAvailability
0 275-4953 Module plumbing kit $1,607.98 1 (includes 1-17) usually ships 1-5 days
1 175-6347 Hose 1/4 inch x 13 foot $27.61 1 usually ships 5-16 days
2 175-1656 Hose clamp $3.96 4 usually ships 5-16 days
3 175-1662 90 degree elbow fitting $3.96 2 usually ships 5-16 days
4 275-9936 Cylindrical electrode $43.23 1 usually ships 5-16 days
5 275-4770 Straight brass fitting $15.07 1 usually ships 5-16 days
6 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 4 ships same day
7 999-0266 Washer #8 SAE flat stainless steel $0.99 4 ships same day
8 275-4954 Valve bracket $14.96 1 usually ships 1-5 days
9 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel $0.99 2 ships same day
10 275-4769 24V solenoid valve $158.95 1 ships same day
11 275-4955 PVC hose $97.68 1 usually ships 1-5 days
12 275-5731 Direction decal $3.08 1 usually ships 5-16 days
13 275-4956 5 plate electrode $1,019.92 1 usually ships 1-5 days
14 275-4957 Front module housing $11.99 1 usually ships 1-5 days
15 275-4773 Rocker switch $7.48 1 ships same day
16 999-1947 Screw M4-.7 x 50 hex stainless steel $1.47 4 usually ships 11-24 days
17 275-4958 Main wiring harness $27.28 1 usually ships 5-16 days
18 275-4761 Rear module housing $10.12 1 usually ships 1-5 days
19 275-5946 Grommet $4.95 1 usually ships 5-16 days
20 275-4775 Controller replacement kit (ec-H2O) $465.19 1 usually ships 5-16 days
21 999-0531 Screw M5-.8 x 16mm pan head slotted zinc $0.99 8 ships same day
22 275-9935 ec-H20 module $2,058.54 1 (includes 0-21) usually ships 5-16 days
