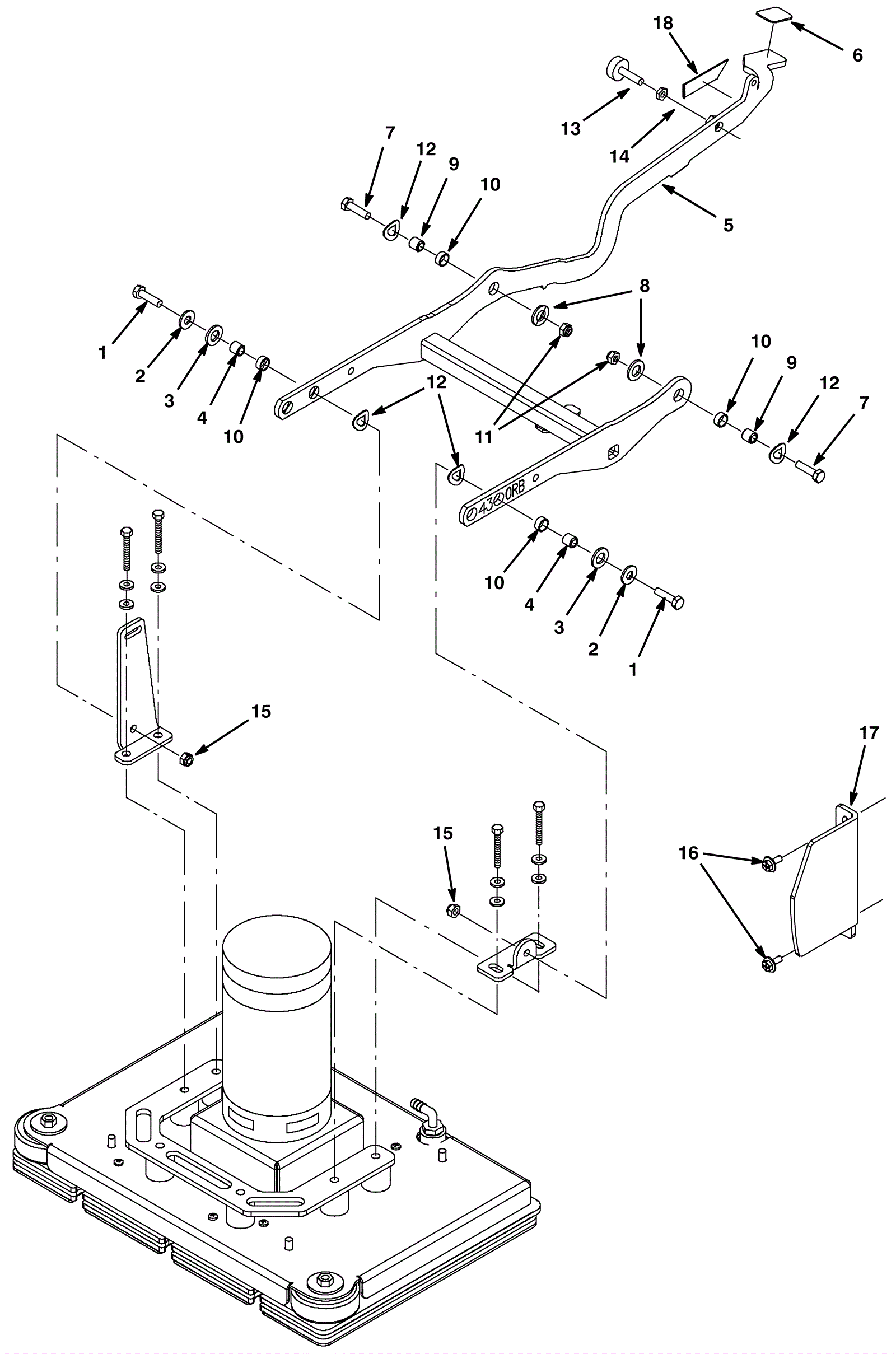

T3 ORBITAL Orbital Head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 ships same day
2 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
3 999-9214 Washer M8 flat nylon $0.99 2 usually ships 11-24 days
4 175-2249 Sleeve $3.08 2 ships same day
5 275-7520 Brush lift weldment assembly $589.49 1 (includes 6-11) usually ships 5-16 days
6 175-7904 Adhesive non-slip pad $3.96 1 usually ships 5-16 days
7 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 ships same day
8 999-9214 Washer M8 flat nylon $0.99 2 usually ships 11-24 days
9 175-2249 Sleeve $3.08 2 ships same day
10 175-4720 Bearing $9.68 4 usually ships 5-16 days
11 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
12 275-6604 1.2mm washer wave zinc plated $3.63 4 usually ships 1-5 days
13 275-6607 Rubber bumper $15.07 1 usually ships 5-16 days
14 175-4006 Nut M8 x 1.25 hex jam $3.30 1 usually ships 5-16 days
15 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
16 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 2 ships same day
17 275-9922 Guide bracket $26.73 1 usually ships 1-5 days
18 N/A Not available Call for price 1 usually ships 3-26 days
