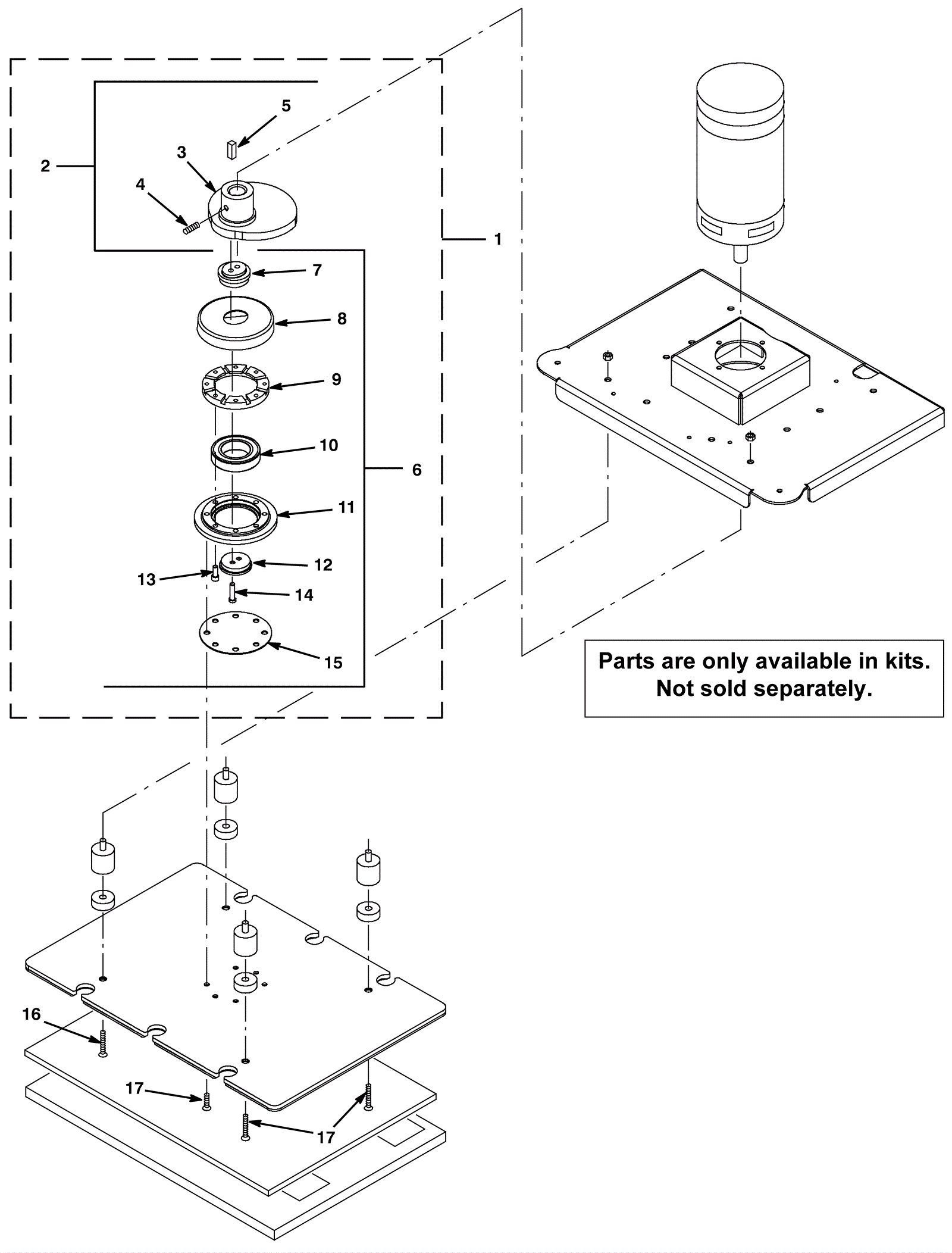

T3 ORBITAL Orbital Head Eccentric Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-9019 Complete drive assembly kit $1,977.14 1 (includes 2-17) usually ships 5-16 days
2 275-6605 Eccentric drive assembly kit $859.54 1 (includes 3-5 and 16-17) usually ships 5-16 days
3 275-6605 Eccentric drive assembly kit $859.54 1 (eccentric weight weldment) usually ships 5-16 days
4 275-6605 Eccentric drive assembly kit $859.54 1 (screw set) usually ships 5-16 days
5 275-6605 Eccentric drive assembly kit $859.54 1 (key) usually ships 5-16 days
6 275-6606 Eccentric bearing assembly $1,210.44 1 (includes 7-17) usually ships 5-16 days
7 275-6606 Eccentric bearing assembly $1,210.44 1 (eccentric hub) usually ships 5-16 days
8 275-6606 Eccentric bearing assembly $1,210.44 1 (upper bearing shield) usually ships 5-16 days
9 275-6606 Eccentric bearing assembly $1,210.44 1 (top bearing retainer) usually ships 5-16 days
10 992-6699 Bearing $92.07 1 ships same day
11 275-6606 Eccentric bearing assembly $1,210.44 1 (bottom bearing retainer) usually ships 5-16 days
12 275-6606 Eccentric bearing assembly $1,210.44 1 (lower bearing axle) usually ships 5-16 days
13 275-6606 Eccentric bearing assembly $1,210.44 2 (screw 1/4-20 x 1/2 socket head capscrew) usually ships 5-16 days
14 275-6606 Eccentric bearing assembly $1,210.44 2 (screw 1/4-20 x 1 1/2 socket head capscrew) usually ships 5-16 days
15 275-6606 Eccentric bearing assembly $1,210.44 1 (lower bearing shield) usually ships 5-16 days
16 275-6606 Eccentric bearing assembly $1,210.44 4 (screw 5/16-18 x 1 flathead socket capscrew) usually ships 5-16 days
17 275-6606 Eccentric bearing assembly $1,210.44 6 (screw 1/4-20 x 1-1/8 flathead socket capscrew) usually ships 5-16 days
