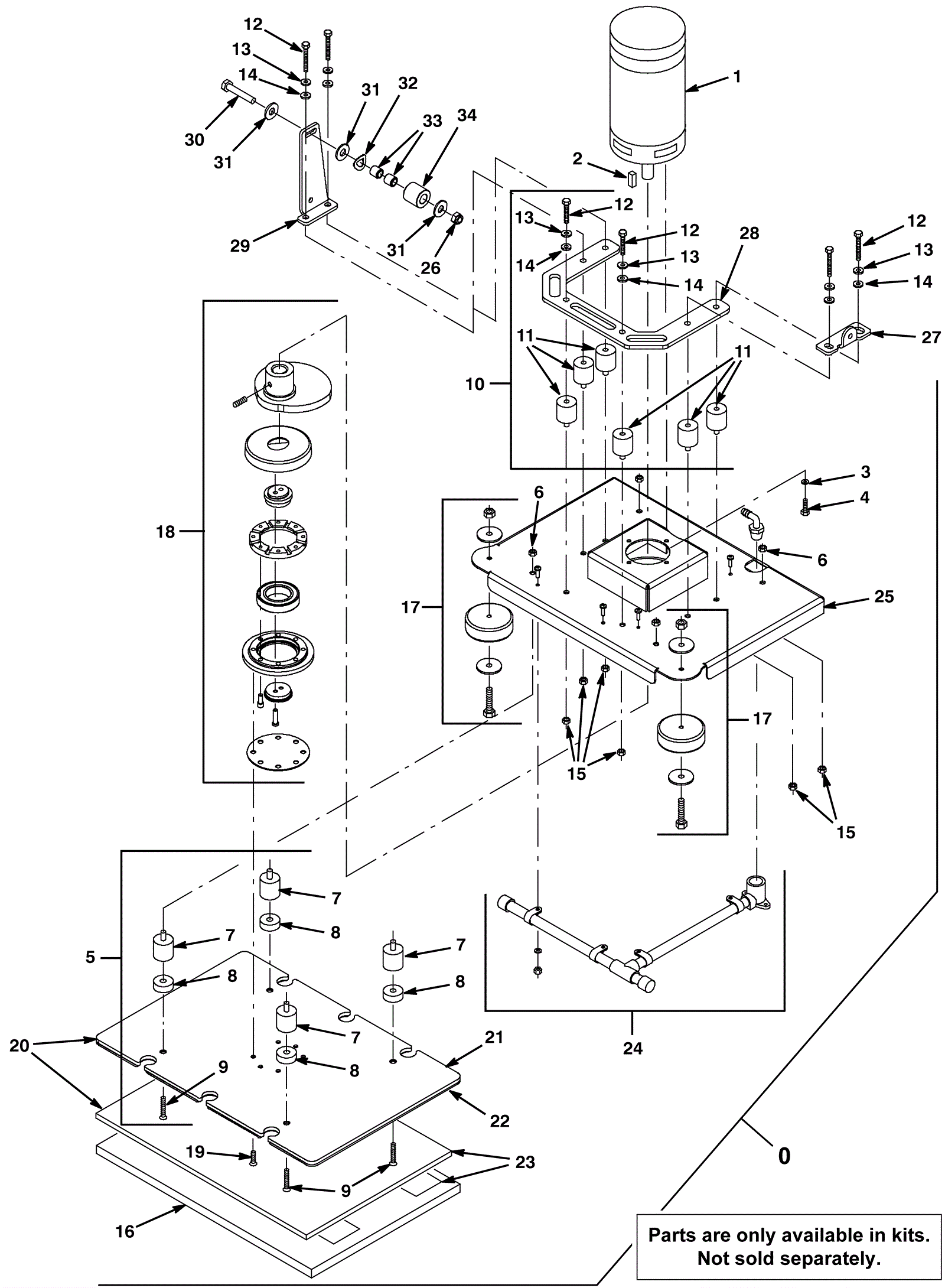

| # | Part | Description | Price | Req | Notes | Availability |
|---|
0 |
175-7686
|
Complete orbital head assembly kit (OBSOLETE) |
$2,211.00
|
1 |
(includes 1-34) |
usually ships 1-5 days |
1a |
175-7877
|
Motor assembly kit |
$1,899.92
|
1 |
(includes 1b-4) |
usually ships 5-16 days |
1b |
275-9904
|
Carbon brush (pkg of 4) |
$85.58
|
1 |
|
usually ships 5-16 days |
2 |
175-7877
|
Motor assembly kit |
$1,899.92
|
1 |
(key) |
usually ships 5-16 days |
3 |
175-7877
|
Motor assembly kit |
$1,899.92
|
4 |
(internal lock washer) |
usually ships 5-16 days |
4 |
175-7877
|
Motor assembly kit |
$1,899.92
|
4 |
(mounting bolt) |
usually ships 5-16 days |
5 |
175-7897
|
Primary isolator assembly kit (pkg of 4) |
$412.61
|
1 |
(includes 6-9) |
usually ships 5-16 days |
6 |
175-7897
|
Primary isolator assembly kit (pkg of 4) |
$412.61
|
4 |
(nut 5/16-18 nyloc) |
usually ships 5-16 days |
7 |
175-7897
|
Primary isolator assembly kit (pkg of 4) |
$412.61
|
4 |
(cylindrical vibration isolators) |
usually ships 5-16 days |
8 |
175-7897
|
Primary isolator assembly kit (pkg of 4) |
$412.61
|
4 |
(1/2 nylon spacer) |
usually ships 5-16 days |
9 |
175-7897
|
Primary isolator assembly kit (pkg of 4) |
$412.61
|
4 |
(screw 5/16-18 x 1 flathead socket capscrew) |
usually ships 5-16 days |
10 |
175-8203
|
Secondary isolator assembly kit |
$509.85
|
1 |
(includes 11-15) |
usually ships 5-16 days |
11 |
175-8203
|
Secondary isolator assembly kit |
$509.85
|
6 |
(cylindrical vibration isolators) |
usually ships 5-16 days |
12 |
175-8203
|
Secondary isolator assembly kit |
$509.85
|
6 |
(bolt 5/16-18 x 3/4 zinc) |
usually ships 5-16 days |
13 |
175-8203
|
Secondary isolator assembly kit |
$509.85
|
6 |
(internal lock washer 5/16) |
usually ships 5-16 days |
14 |
175-8203
|
Secondary isolator assembly kit |
$509.85
|
6 |
(flat zinc washer 5/16) |
usually ships 5-16 days |
15 |
175-8203
|
Secondary isolator assembly kit |
$509.85
|
6 |
(nyloc nut 5/16-18) |
usually ships 5-16 days |
16 |
175-8203
|
Secondary isolator assembly kit |
$509.85
|
1 |
(pad backer) |
usually ships 5-16 days |
17 |
175-8497
|
Wheel assembly kit |
$158.62
|
1 |
|
ships same day |
18 |
175-9019
|
Complete drive assembly kit |
$1,977.14
|
1 |
|
usually ships 5-16 days |
19 |
175-7686
|
Complete orbital head assembly kit (OBSOLETE) |
$2,211.00
|
6 |
(screw 1/4-20 x 1-1/8 flathead socket capscrew) |
usually ships 1-5 days |
20 |
275-6600
|
Pad driver kit |
$1,058.09
|
1 |
(includes 9, 19, and 21-22) |
usually ships 5-16 days |
21 |
275-6600
|
Pad driver kit |
$1,058.09
|
1 |
(pad driver) |
usually ships 5-16 days |
22 |
275-6600
|
Pad driver kit |
$1,058.09
|
1 |
(pad driver face) |
usually ships 5-16 days |
23 |
275-6602
|
Backer pad assembly kit |
$106.92
|
1 |
|
usually ships 5-16 days |
24 |
275-6603
|
Water distribution assembly kit |
$680.57
|
1 |
|
usually ships 1-5 days |
25 |
175-7686
|
Complete orbital head assembly kit (OBSOLETE) |
$2,211.00
|
1 |
(frame) |
usually ships 1-5 days |
26 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
$1.08
|
1 |
|
ships same day |
27 |
275-9924
|
Mounting bracket |
$21.01
|
1 |
|
usually ships 1-5 days |
28 |
175-7686
|
Complete orbital head assembly kit (OBSOLETE) |
$2,211.00
|
1 |
(frame bracket) |
usually ships 1-5 days |
29 |
275-9923
|
Mounting bracket |
$37.29
|
1 |
|
usually ships 1-5 days |
30 |
175-2854
|
Screw M8-1.25 x 45mm hex head stainless steel |
$3.96
|
1 |
|
ships same day |
31 |
999-9097
|
Washer M8 flat stainless steel |
$0.99
|
3 |
|
ships same day |
32 |
275-6604
|
1.2mm washer wave zinc plated |
$3.63
|
1 |
|
usually ships 1-5 days |
33 |
175-2249
|
Sleeve |
$3.08
|
2 |
|
ships same day |
34 |
175-7911
|
Roller |
$9.68
|
1 |
|
usually ships 5-16 days |
