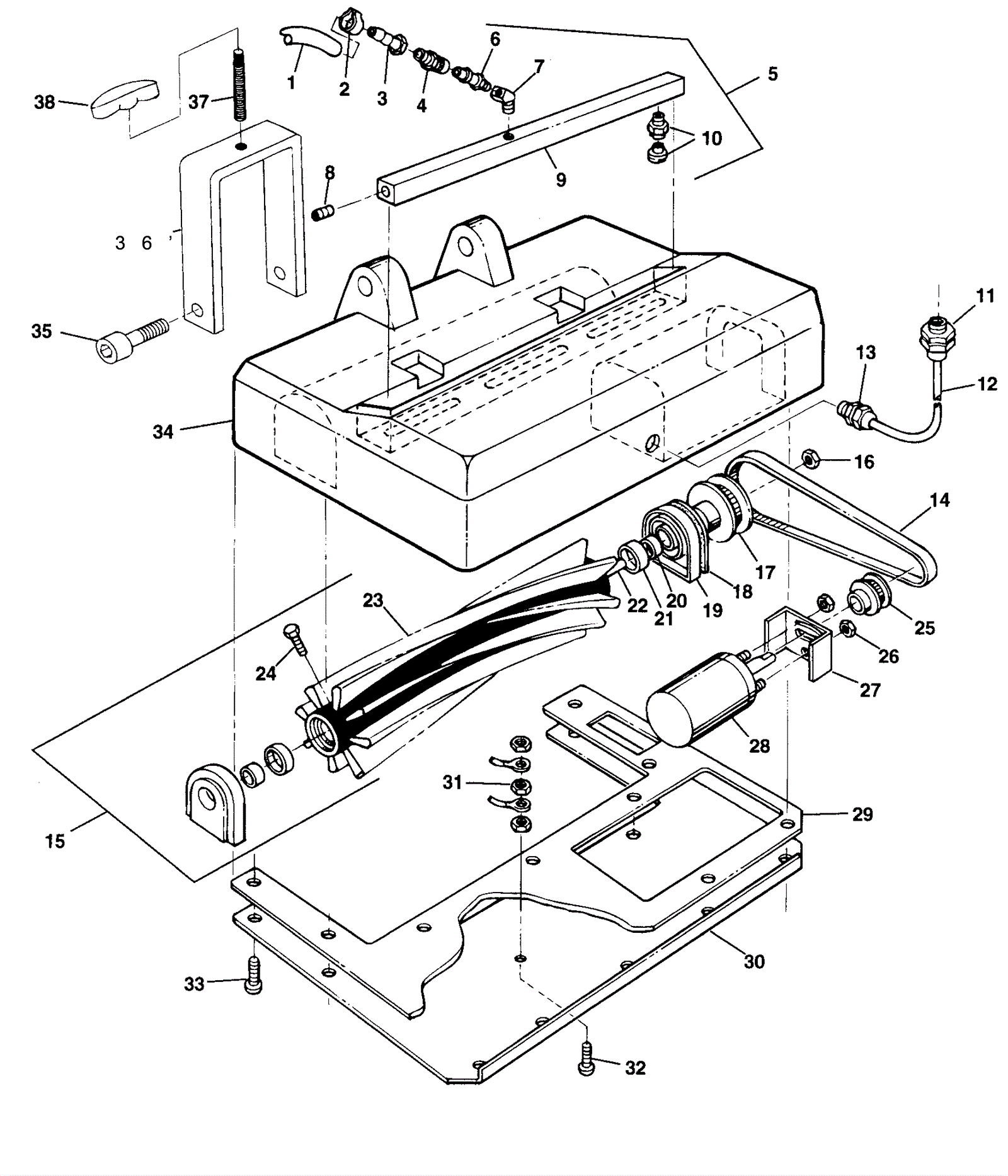

FALCON 2800 Brush Housing Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-6023 Hose 1/4 x 36 inch (gray) $21.34 1 usually ships 5-16 days
2 175-6170 Hose clamp $4.88 1 ships same day
3 175-3529 Brass fitting $5.50 1 usually ships 5-16 days
4 175-1652 1/8 inch female brass quick coupler $35.97 1 usually ships 5-16 days
5 175-4873 Spray bar assembly $520.30 1 (includes 6-10) usually ships 5-16 days
6 175-1684 Quick disconnect fitting $22.00 1 usually ships 5-16 days
7 175-6041 Elbow 1/8 x 1/8 inch $6.05 1 usually ships 5-16 days
8 175-6121 Brass plug $4.88 2 ships same day
9 175-1786 22 inch spraybar $84.81 1 usually ships 5-16 days
10 175-6118 Spray tip assembly $77.99 6 ships same day
11 175-6124 Cord grip $10.34 1 usually ships 1-5 days
12 N/A Not available Call for price 1 (18/3 cord) usually ships 3-26 days
13 175-6232 Cord grip $9.79 1 usually ships 5-16 days
14 175-4327 Timing belt $47.85 1 usually ships 5-16 days
15 175-4023 Brush assembly with bearings - CYLINDRICAL $427.90 1 (includes 16-24) usually ships 5-16 days
16 999-0430 Nut 5/16-18 hex jam plain finish $0.99 1 ships same day
17a 175-4321 Brush pulley $87.23 1 usually ships 5-16 days
17b 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 1 ships same day
18 175-6143 Bearing block gasket $5.50 1 ships same day
19 175-6133 Bearing block $9.79 2 usually ships 5-16 days
20 175-0069 Brush bearing $18.70 2 ships same day
21 175-6134 Brush bearing seal $17.16 2 usually ships 5-16 days
22 175-4322 Brush shaft $145.09 1 usually ships 5-16 days
23 175-4319 Brush - CYLINDRICAL $231.44 1 usually ships 5-16 days
24 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
25 175-4326 Motor pulley $66.88 1 usually ships 5-16 days
26 999-0239 Nut 10-32 k-lock zinc plated $0.99 2 ships same day
27 175-4324 Brush motor bracket $56.76 1 usually ships 5-16 days
28a 175-6131 120V brush motor $295.35 1 ships same day
28b 175-1266 Carbon brush (sold individually) $118.14 1 usually ships 1-5 days
29 175-4317 Base plate gasket $101.53 1 usually ships 5-16 days
30 175-4818 Base plate $189.20 1 usually ships 5-16 days
31 999-0356 Nut 10-24 lock stainless steel $0.99 3 ships same day
32 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel $1.69 1 ships same day
33 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel $0.99 12 ships same day
34 175-4316 22 inch base $239.03 1 usually ships 5-16 days
35 175-6156 Screw 3/8 x 3/4 shoulder $5.50 2 usually ships 5-16 days
36 175-6183 Brush height adjustment bracket $26.51 1 usually ships 1-5 days
37 175-8084 3 1/2 inch height adjustment stud $15.73 1 usually ships 1-5 days
38 175-6113 Height adjustment knob $9.57 1 usually ships 5-16 days
