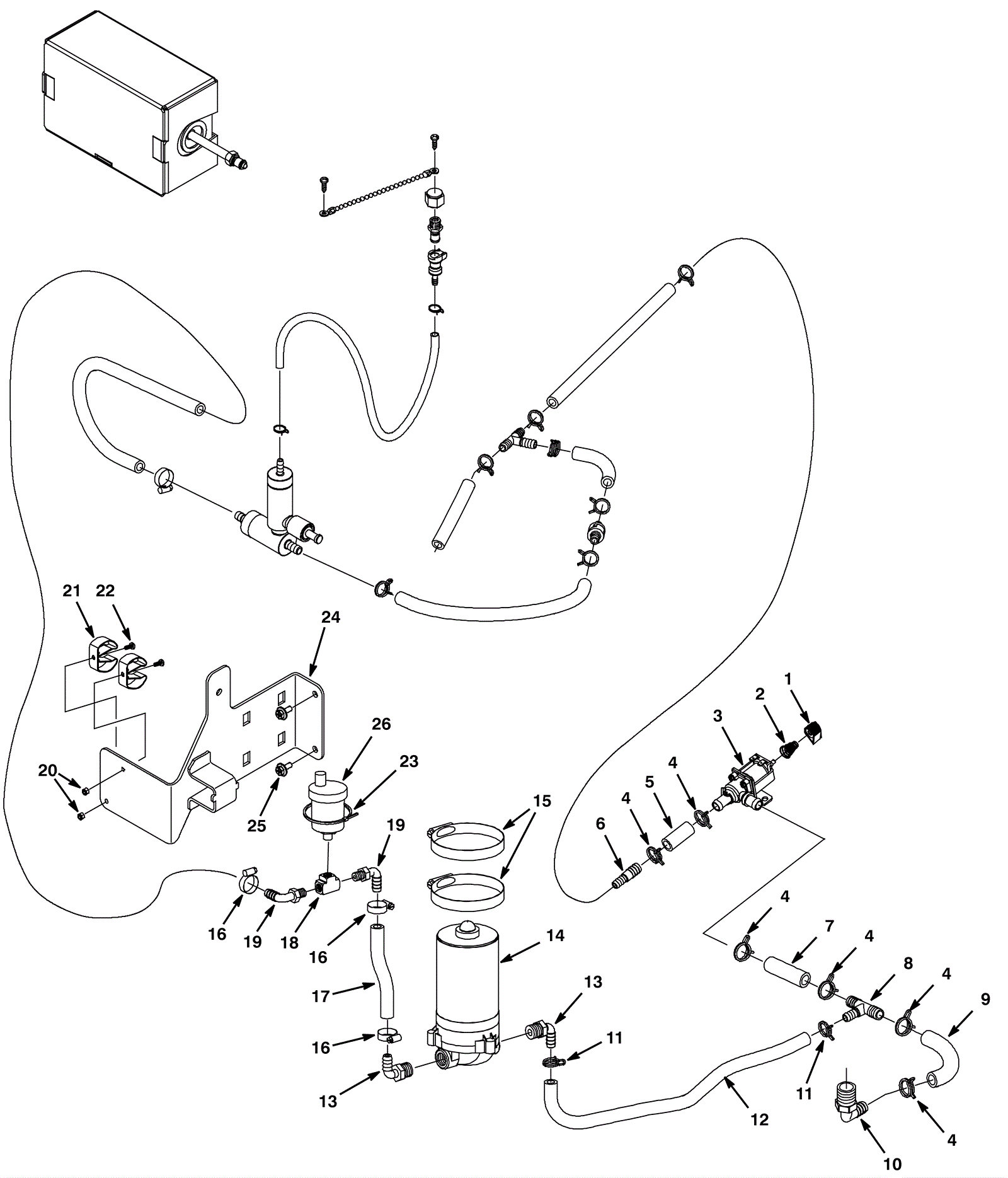

T3 PLUS Lower Solution Assembly - FaST Model

#PartDescriptionPriceReqNotesAvailability
1 175-7930 Indicator valve knob (black) $14.74 1 ships same day
2 175-7931 Compression spring $4.88 1 ships same day
3a 175-7884 24V solution solenoid valve assembly $156.42 1 (includes 3b) ships same day
3b 175-8698 Solenoid valve rebuild kit (internal parts) $116.05 1 ships same day
4 375-0291 Hose clamp $4.88 6 ships same day
5 175-4976 1 foot hose $23.65 1 usually ships 5-16 days
6 175-6956 Plastic strainer fitting $4.88 1 usually ships 5-16 days
7 175-7932 Hose $13.64 1 usually ships 5-16 days
8 175-4810 Tee fitting $9.90 1 ships same day
9 175-8979 1/2 inch PVC hose (clear) $15.29 1 usually ships 5-16 days
10 175-7834 Plastic fitting $9.02 1 usually ships 5-16 days
11 175-3671 Hose clamp $4.88 2 usually ships 5-16 days
12 175-8980 24 inch hose $22.33 1 usually ships 1-5 days
13 175-7933 90 degree plastic elbow $6.82 2 usually ships 5-16 days
14 175-7934 24V solution pump $748.00 1 ships same day
15 997-2009 Hose clamp $3.30 2 ships same day
16 175-6081 Hose clamp $4.84 3 ships same day
17 175-8981 PVC braided hose 3/8 x 10 inch $12.09 1 usually ships 1-5 days
18 175-7939 Brass tee fitting $7.04 1 usually ships 1-5 days
19 175-7937 90 degree plastic elbow $5.83 2 usually ships 5-16 days
20 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 2 ships same day
21 175-4526 Spring clip $5.50 2 usually ships 5-16 days
22 999-0534 Screw M4-.7 x 10mm pan head slotted zinc $0.99 2 ships same day
23 175-2226 Nylon wire tie $4.09 1 ships same day
24 275-5922 Bracket weldment $58.08 1 usually ships 1-5 days
25 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 2 ships same day
26 175-7941 Air vent valve $64.13 1 ships same day
