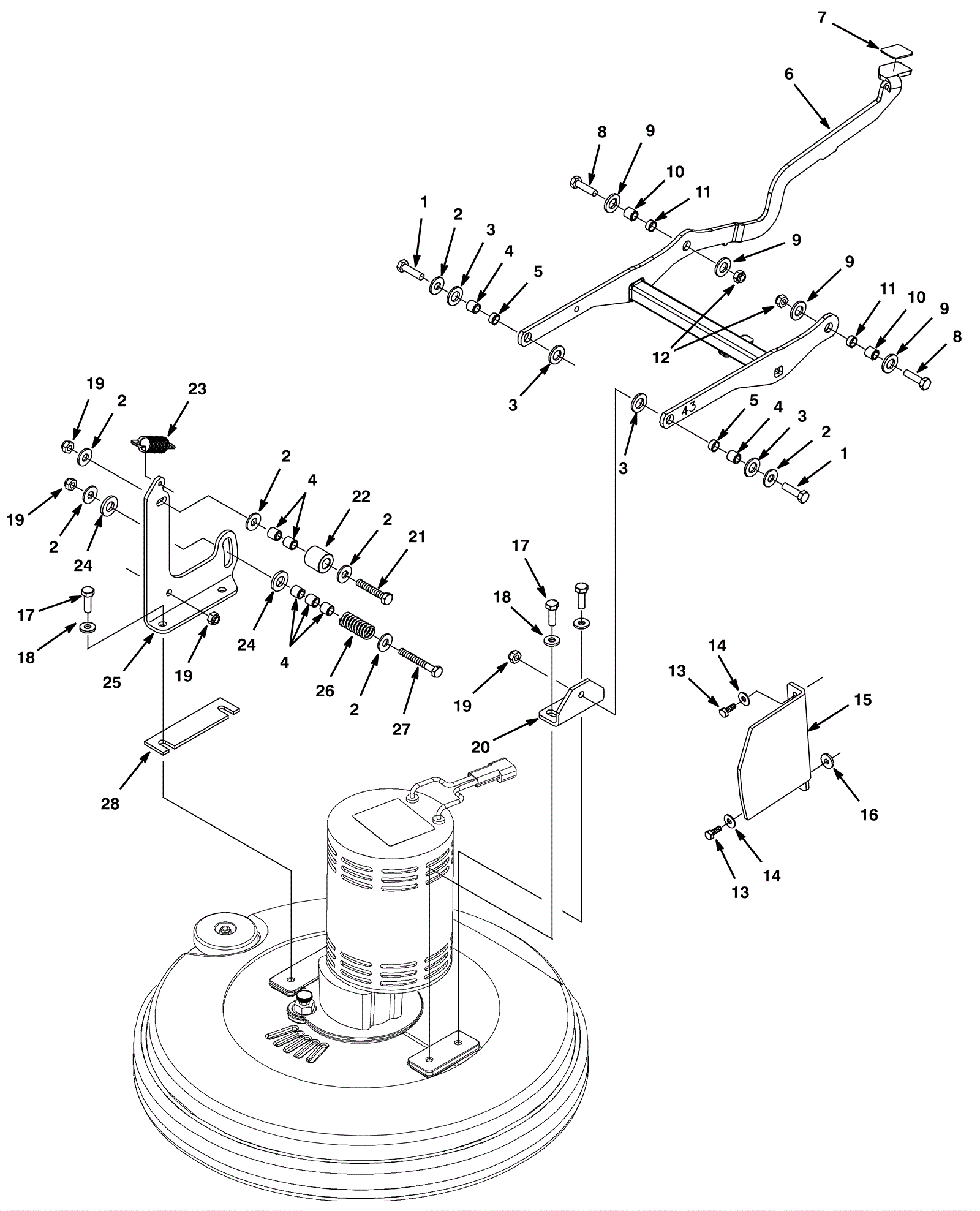

T3 PLUS Scrub Head Lift Assembly - 17 and 20 inch

#PartDescriptionPriceReqNotesAvailability
1 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 ships same day
2 999-9097 Washer M8 flat stainless steel $0.99 7 ships same day
3 999-9214 Washer M8 flat nylon $0.99 4 usually ships 11-24 days
4 175-2249 Sleeve $3.83 7 ships same day
5 175-4720 Bearing $9.90 2 usually ships 5-16 days
6a 275-7520 Brush lift weldment assembly $601.37 1 (17 inch) (includes 7-12) usually ships 5-16 days
6b 275-6138 Brush lift weldment assembly $548.90 1 (20 inch) (includes 7-12) usually ships 5-16 days
7 175-7904 Adhesive non-slip pad $4.88 1 usually ships 5-16 days
8 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 ships same day
9 999-9214 Washer M8 flat nylon $0.99 4 usually ships 11-24 days
10 175-2249 Sleeve $3.83 2 ships same day
11 175-4720 Bearing $9.90 2 usually ships 5-16 days
12 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
13 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
14 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
15a 175-7926 Guide bracket $48.40 1 (17 inch) usually ships 1-5 days
15b 175-7912 Guide bracket $45.43 1 (20 inch) usually ships 5-16 days
16 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 1 ships same day
17 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 4 ships same day
18 175-3176 Washer 3/8 flat steel plated $3.04 4 ships same day
19 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 4 ships same day
20 175-7914 Mounting bracket $20.35 1 usually ships 5-16 days
21 175-2854 Screw M8-1.25 x 45mm hex head stainless steel $4.88 1 ships same day
22 175-7911 Roller $9.90 1 usually ships 5-16 days
23a 275-5918 Extension spring $6.82 1 (17 inch) usually ships 5-16 days
23b 275-5919 Extension spring $6.82 1 (20 inch) usually ships 5-16 days
24 175-0939 Thrust washer $5.50 2 ships same day
25 175-7909 Mounting bracket $82.83 1 usually ships 5-16 days
26 175-0944 Spring $9.46 1 usually ships 5-16 days
27 999-1155 Screw M8-1.25 x 60mm hex head $1.87 1 ships same day
28 275-5917 Spacer plate $11.88 1 usually ships 5-16 days
N/S 175-7795 Cable tie $4.75 1 ships same day
