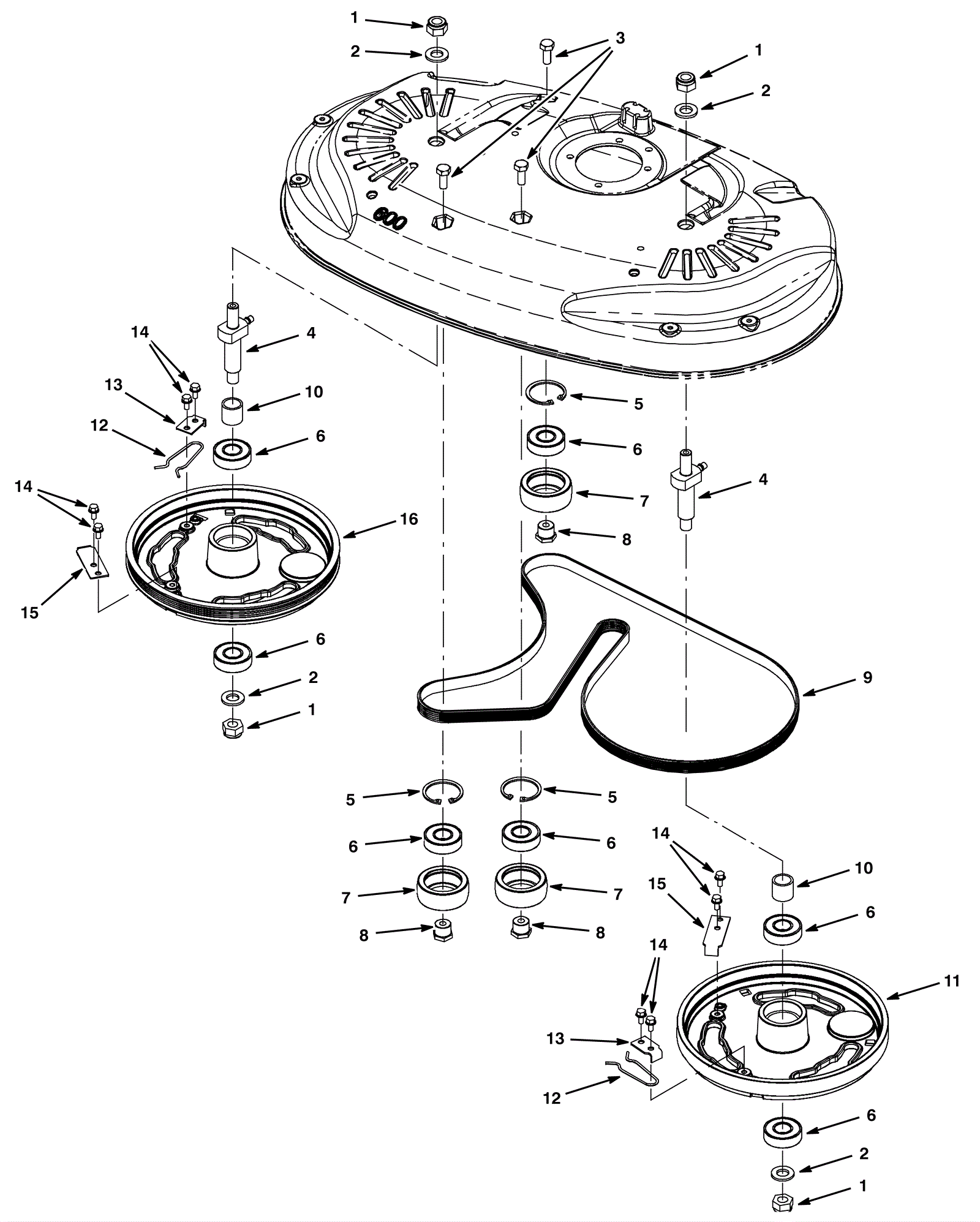

T3 PLUS Lower Scrub Head Assembly - Dual Disk 24 inch

#PartDescriptionPriceReqNotesAvailability
1 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 4 ships same day
2 175-5407 Washer M12 flat stainless steel $3.96 4 usually ships 5-16 days
3 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 3 ships same day
4 275-9913 Pulley mounting shaft weldment $184.36 2 usually ships 5-16 days
5 275-9914 Retaining ring $23.76 3 usually ships 5-16 days
6 175-0957 Brush bearing $13.31 7 usually ships 5-16 days
7 275-9915 Idler pulley $68.64 3 usually ships 5-16 days
8 275-9916 Spacer $12.32 3 usually ships 5-16 days
9 275-9917 Drive belt $56.10 1 usually ships 5-16 days
10 275-9918 Tube $6.49 2 usually ships 5-16 days
11 275-9919 Drive hub $62.59 1 usually ships 5-16 days
12 175-7924 Spring clip $6.82 2 ships same day
13 275-9920 Release stop $18.48 2 usually ships 5-16 days
14 999-1228 Screw M5-.8 x 10mm hex head stainless steel $0.99 8 ships same day
15 175-7921 Brush plate clamp $21.23 2 ships same day
16 275-9921 Drive hub $48.46 1 ships same day
