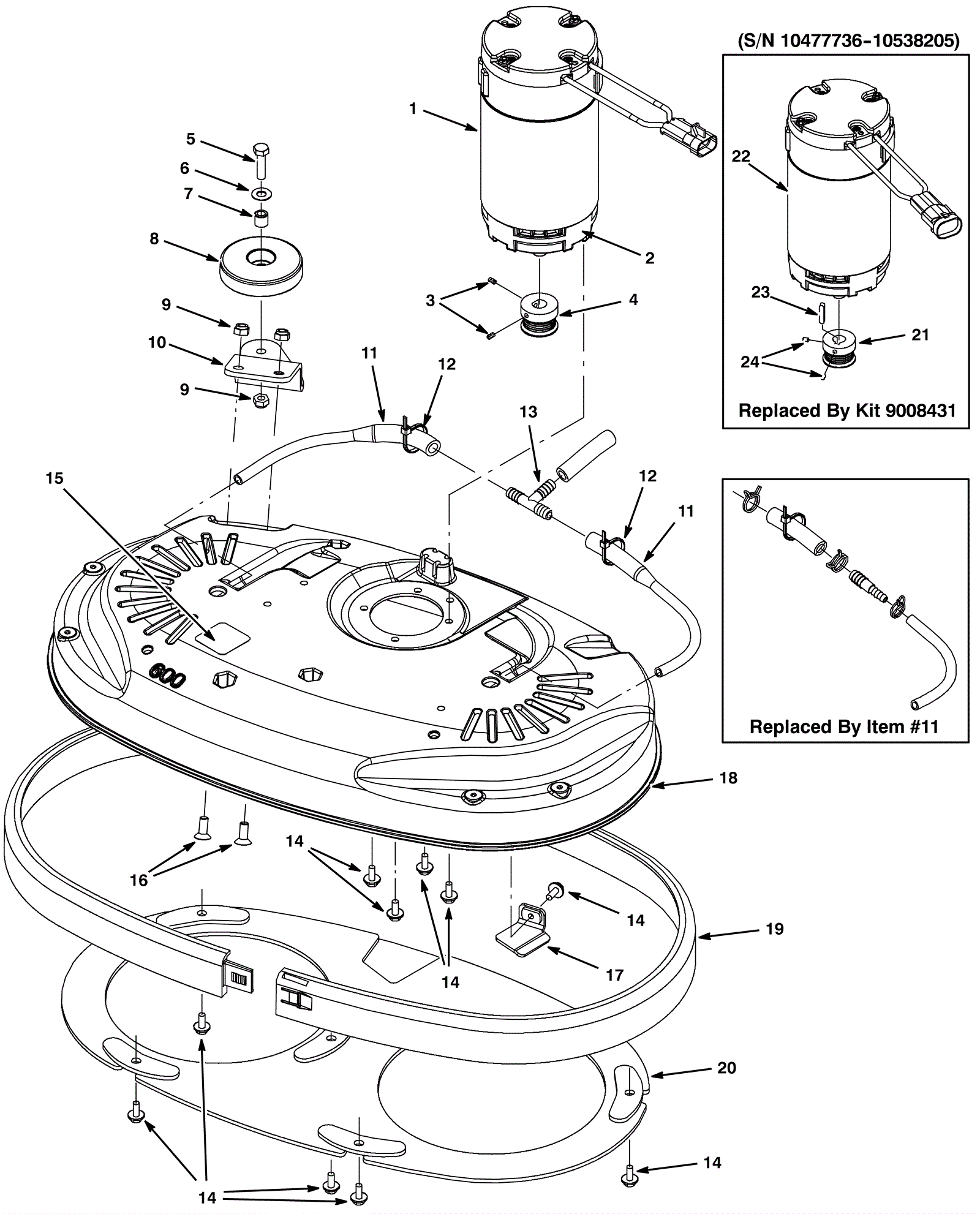

T3 PLUS Upper Scrub Head Assembly - Dual Disk 24 inch

#PartDescriptionPriceReqNotesAvailability
8b 991-8570 Bumper wheel $2.55 1 ships same day
1 275-9903 24V brush motor $1,241.79 1 (includes item 2) usually ships 5-16 days
2 275-9904 Carbon brush (pkg of 4) $87.34 1 usually ships 5-16 days
3 275-9911 Screw M5-.8 x 8 set stainless steel $4.88 2 usually ships 5-16 days
4 275-9905 Sheave $57.20 1 usually ships 5-16 days
5 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 1 ships same day
6 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
7 175-2249 Sleeve $3.83 1 ships same day
8a 175-7919 Guide wheel $5.50 1 usually ships 5-16 days
9 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 3 ships same day
10 275-9906 Bracket $30.91 1 usually ships 5-16 days
11 275-9907 Solution hose $13.31 2 usually ships 5-16 days
12 175-7795 Cable tie $4.75 2 ships same day
13 175-1615 Tee fitting $6.82 1 usually ships 5-16 days
14 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 10 ships same day
15 175-1238 Moving parts decal $5.50 1 usually ships 5-16 days
16 999-1324 Screw M8-1.25 x 20mm flat head stainless steel $0.99 2 ships same day
17 275-9908 Guide belt bracket $30.80 1 usually ships 1-5 days
18 275-9909 Scrub deck $273.79 1 usually ships 1-5 days
19 275-1466 24 inch (600mm) bumper skirt assembly $285.56 1 ships same day
20 275-9910 Splash guard bracket $219.23 1 usually ships 5-16 days
21 275-9912 Sheave $43.23 1 usually ships 1-5 days
22a 275-9903 24V brush motor $1,241.79 1 (includes 22b) usually ships 5-16 days
22b 275-9904 Carbon brush (pkg of 4) $87.34 1 usually ships 5-16 days
23 275-1468 Square keyway $4.88 1 ships same day
24 275-9911 Screw M5-.8 x 8 set stainless steel $4.88 2 usually ships 5-16 days
