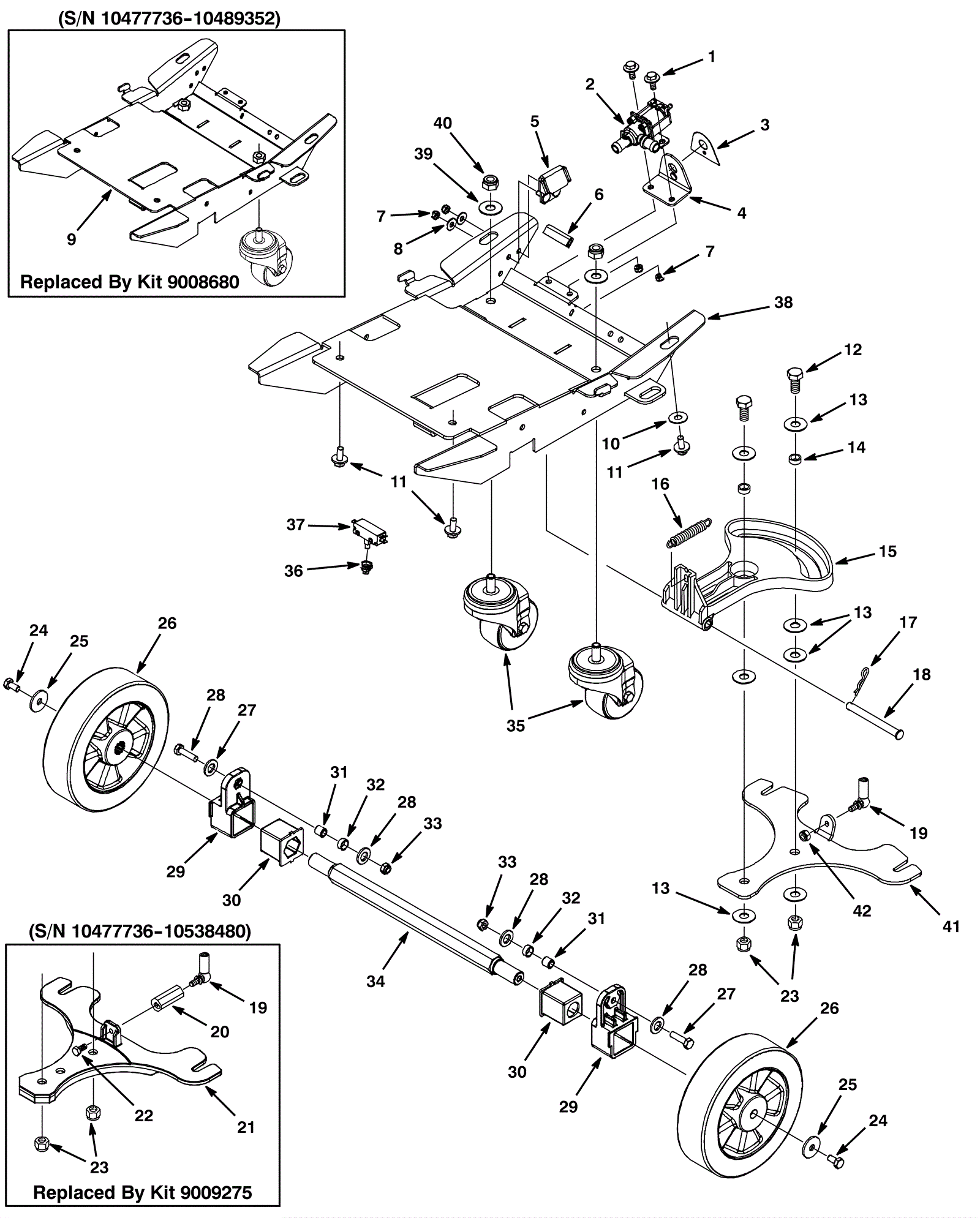

T3 PLUS Wheel Assembly - Brush Assist Model

#PartDescriptionPriceReqNotesAvailability
1 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 2 ships same day
2a 175-7884 24V solution solenoid valve assembly $156.42 1 (includes 2b) ships same day
2b 175-8698 Solenoid valve rebuild kit (internal parts) $116.05 1 ships same day
3 175-7885 Solution flow operation decal $8.14 1 ships same day
4 175-7886 Mounting bracket $48.62 1 usually ships 5-16 days
5 175-7883 Foot pedal locking bracket $55.00 1 usually ships 5-16 days
6 275-5895 Plastic trim $21.67 1 usually ships 5-16 days
7 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 4 ships same day
8 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
9 275-5896 Frame weldment $466.18 1 usually ships 5-16 days
10 999-1134 Washer 1 1/4 flat stainless steel $6.01 2 ships same day
11 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 4 ships same day
12 999-6696 Bolt M12-1.75 x 30mm stainless steel hex cap screw $5.19 2 ships same day
13 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 7 ships same day
14 175-7890 Sleeved bushing $4.88 2 ships same day
15 275-5794 Squeegee lifting bracket $47.19 1 usually ships 5-16 days
16 275-5897 Extension spring $7.70 1 ships same day
17 175-2117 Cotter pin $4.88 1 ships same day
18 175-7892 Clevis pin $8.03 1 ships same day
19 175-7860 Ball joint $24.42 1 ships same day
20 175-8826 Spacer $18.15 1 usually ships 5-16 days
21 275-5898 Mounting bracket with hardware $116.05 1 usually ships 5-16 days
22 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 1 ships same day
23 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 2 ships same day
24 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 2 ships same day
25 999-1134 Washer 1 1/4 flat stainless steel $6.01 2 ships same day
26 175-7907 Wheel with bearing $158.18 2 ships same day
27 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 ships same day
28 999-9214 Washer M8 flat nylon $0.99 4 usually ships 11-24 days
29 275-5900 Axle mount $15.29 1 usually ships 5-16 days
30 275-5901 Grommet $8.25 1 usually ships 5-16 days
31 175-2249 Sleeve $3.83 2 ships same day
32 175-4720 Bearing $9.90 2 usually ships 5-16 days
33 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
34 275-5902 Axle $154.11 1 usually ships 1-5 days
35a 175-7887 Swivel caster wheel $163.79 2 ships same day
35b 991-3104 Swivel Caster, 80mm, M12 x 25 $73.76 2 ships same day
36 175-2878 Nut 3/8-32 hex switch boot $18.48 1 ships same day
37a 175-0084 Actuator push switch $17.60 1 ships same day
37b 991-8558 Switch $14.16 1 ships same day
38 275-5896 Frame weldment $466.18 1 usually ships 5-16 days
39 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 2 ships same day
40 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 2 ships same day
41 275-9901 Squeegee mounting bracket $37.18 1 usually ships 5-16 days
42 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 1 ships same day
