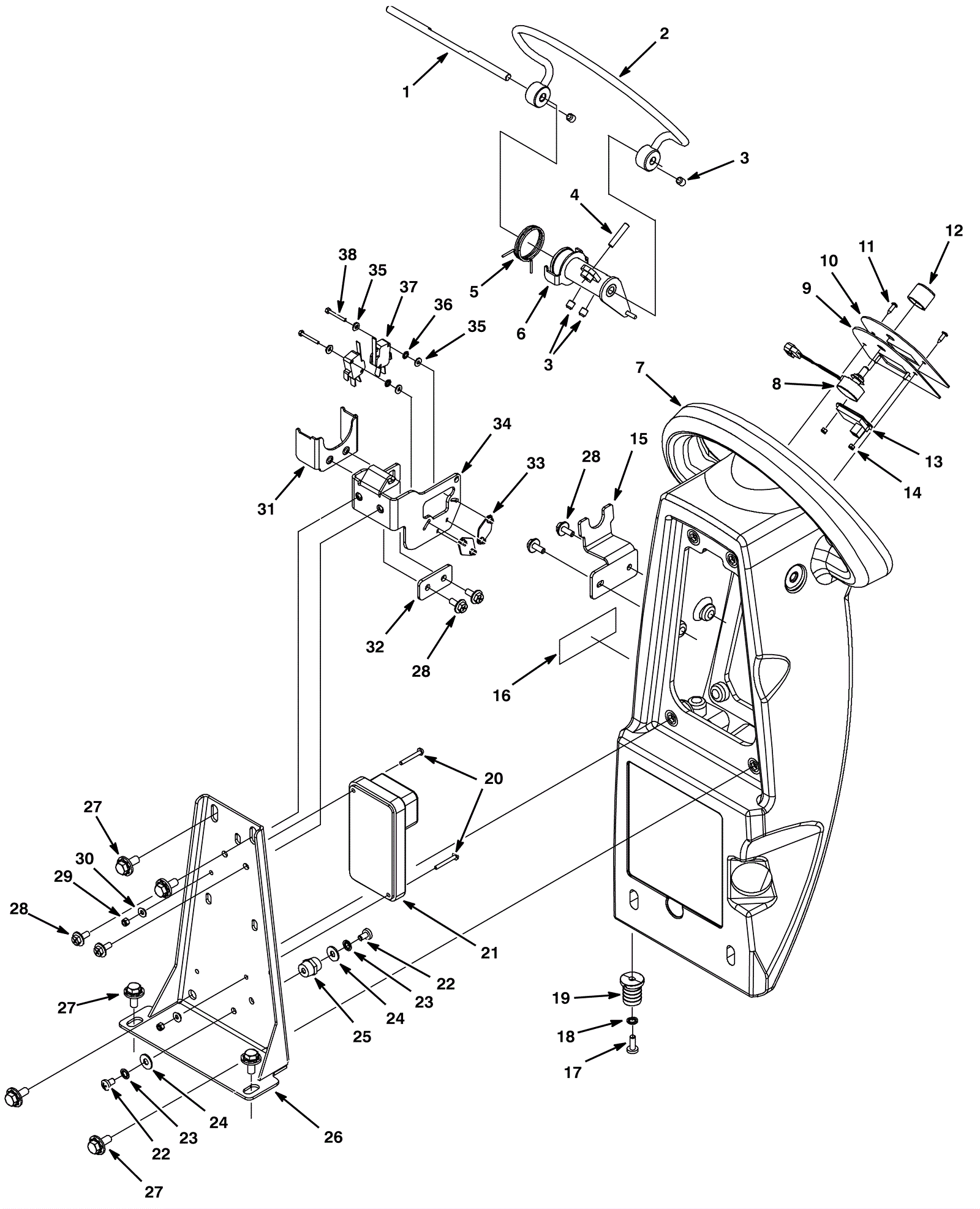

T3 PLUS Rear Control Console Assembly - Drive Model

#PartDescriptionPriceReqNotesAvailability
1 175-7845 Shaft $26.95 1 usually ships 1-5 days
2 175-7844 Bail lever $124.52 1 usually ships 10-16 days
4 175-7843 Screw M6-1 x 30mm set stainless steel $4.88 1 usually ships 10-16 days
5 175-4260 Torsion spring $6.82 1 ships same day
6 175-7841 Collar weldment $88.00 1 usually ships 10-16 days
7 175-7846 Control housing $580.58 1 usually ships 10-16 days
8 175-7847 Potentiometer assembly $82.83 1 ships same day
9 175-7848 Upper control panel $66.44 1 usually ships 10-16 days
10 175-7849 Upper control panel decal $17.93 1 usually ships 10-16 days
11 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated $0.99 2 ships same day
12 175-1163 Speed control knob $39.05 1 ships same day
13a 175-4935 36V Battery gauge $90.97 1 usually ships 10-16 days
13b 991-9183 GAUGE, DISCHARGE, BATTERY, 36VDC, RT,LED $108.23 1 (NON-OEM) usually ships 14-21 days
14 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
15 275-9899 Squeegee retainer bracket $30.58 1 usually ships 1-5 days
16b 275-5732 Attention users decal (ec-H2O) $5.28 1 usually ships 1-5 days
17 999-1257 Screw M6-1 x 16mm pan head Phillips $1.47 1 ships same day
18 175-4544 Washer M6 locking $4.09 1 ships same day
19 275-5871 Plastic fitting $4.09 1 ships same day
20 999-1672 Screw M4-.7 x 30mm pan head phillips stainless steel $0.99 2 usually ships 12-18 days
21 175-7862 Drive module $492.58 1 ships same day
22 999-0807 Screw M6-1 x 10mm flat head phillips $2.49 2 ships same day
23 175-4544 Washer M6 locking $4.09 2 ships same day
24 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
25 175-7864 Wire stand off $17.60 1 usually ships 10-16 days
26 275-5882 Control housing bracket $37.29 1 usually ships 10-16 days
27 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 6 ships same day
28 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 6 ships same day
29 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 2 ships same day
30 999-0266 Washer #8 SAE flat stainless steel $0.99 2 ships same day
31 175-7837 Bail spring bracket $44.55 1 usually ships 1-5 days
32 175-7838 Plate $7.37 1 usually ships 1-5 days
33 175-7839 Switch plate $33.66 2 usually ships 10-16 days
34 175-7840 Bail switch bracket $48.40 1 usually ships 1-5 days
35 999-1158 Washer #6 flat stainless steel $0.99 8 ships same day
36 999-1083 Washer #8 internal star lock stainless steel $0.99 4 ships same day
37 175-7836 Snap switch $25.74 2 ships same day
38 275-5888 Screw M3-.5 x 25mm hex head stainless steel $3.43 4 ships same day
