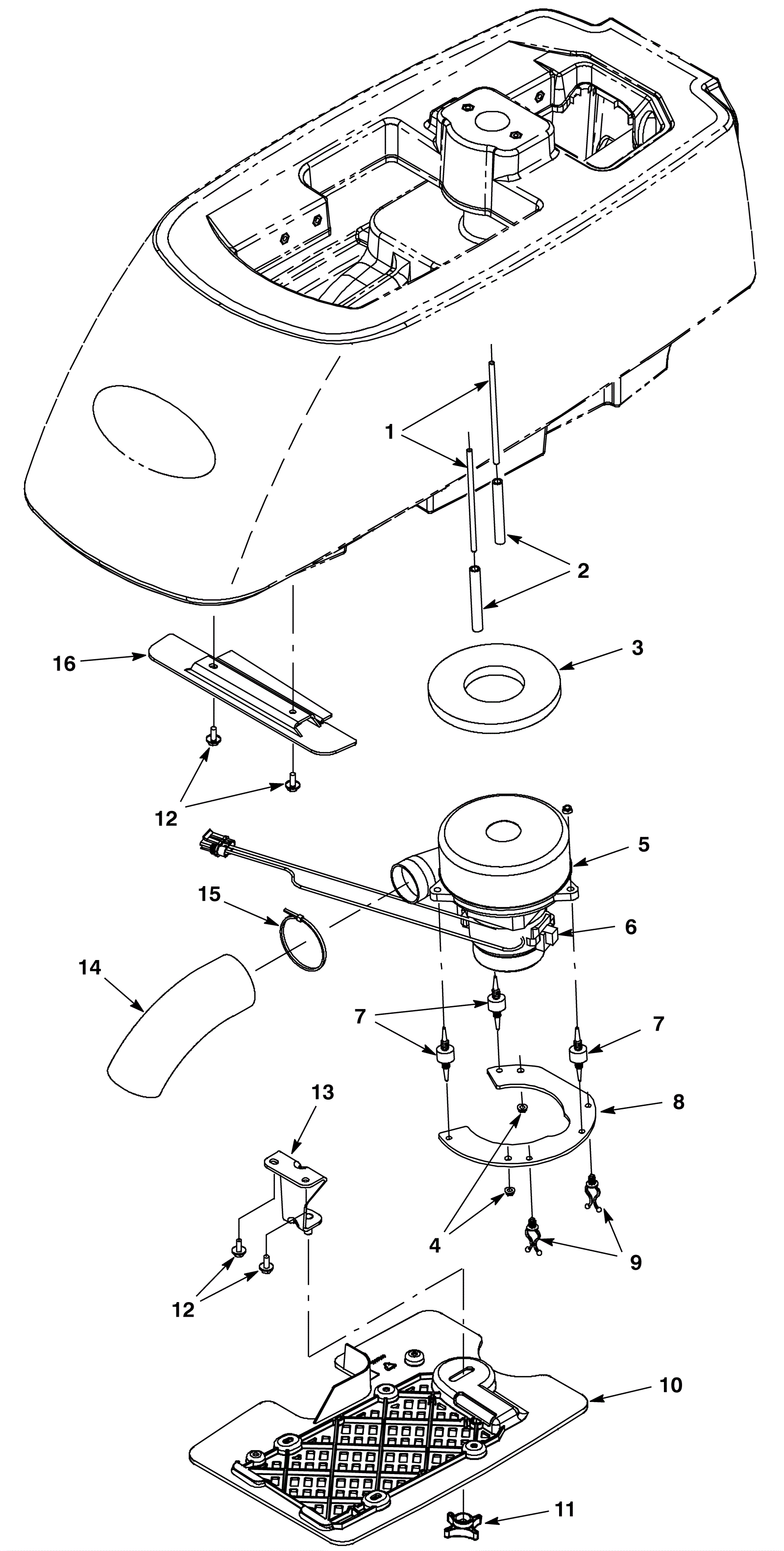

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-7788
|
Rod M6-1 x 5.5mm full thread |
2 |
|
|
2 |
175-7789
|
Steel spacer |
2 |
|
|
3 |
175-6085
|
Gasket |
1 |
|
|
4 |
275-5085
|
Nut M6-1 x 16 hex head stainless steel |
2 |
|
|
5a |
175-7790
|
24V 2 stage vacuum fan |
1 |
(includes 6) |
|
5b |
991-1203-D
|
24V 2 stage vacuum motor tangential with Delphi plug |
1 |
(NON-OEM) |
|
6 |
175-7791
|
Carbon brush (pkg of 2) |
1 |
|
|
7 |
275-9897
|
Isolator |
3 |
|
|
8 |
175-7793
|
Vacuum motor mounting bracket |
1 |
|
|
9 |
175-2095
|
Keeper clip |
2 |
|
|
10 |
275-5940
|
Cover (OBSOLETE) |
1 |
|
|
11 |
375-0261
|
Star knob M8-1.25 |
1 |
|
|
12 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
4 |
|
|
13 |
275-5941
|
Bracket |
1 |
|
|
14 |
175-7794
|
Vacuum exhaust hose |
1 |
|
|
15 |
175-7795
|
Cable tie |
1 |
|
|
16 |
275-5942
|
Bracket |
1 |
|
|
