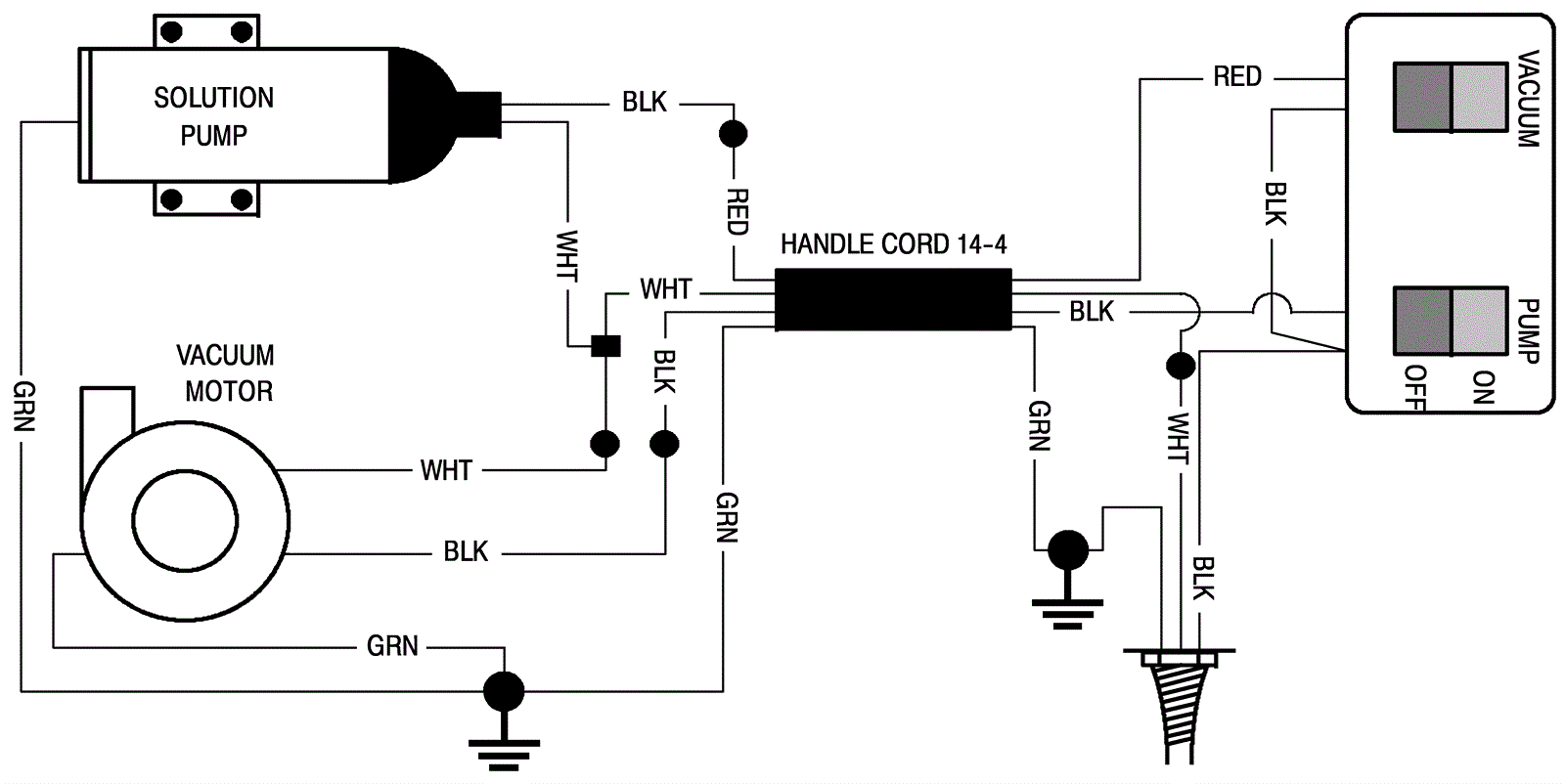

EX-CAN-15LP Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
175-1484 14/3 power cord 75 foot $183.70 (OEM) ships same day
991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 (NON-OEM) ships same day
991-5001 14/3 extension cord 50 foot (yellow) $103.23 (NON-OEM) ships same day
175-5502 Strain relief $13.75 ships same day
175-3493 600V 60amp rectifier $143.11 usually ships 5-16 days
175-0292 4 inch rear wheel (gray) $37.95 ships same day
991-1913 4 inch wheel (gray) $18.50 (NON-OEM) usually ships 5-16 days
175-1480 Wheel $45.54 usually ships 5-16 days
175-1474 20 inch (500mm) pad driver assembly $316.25 ships same day
175-5850 Pad driver retainer $12.54 ships same day
