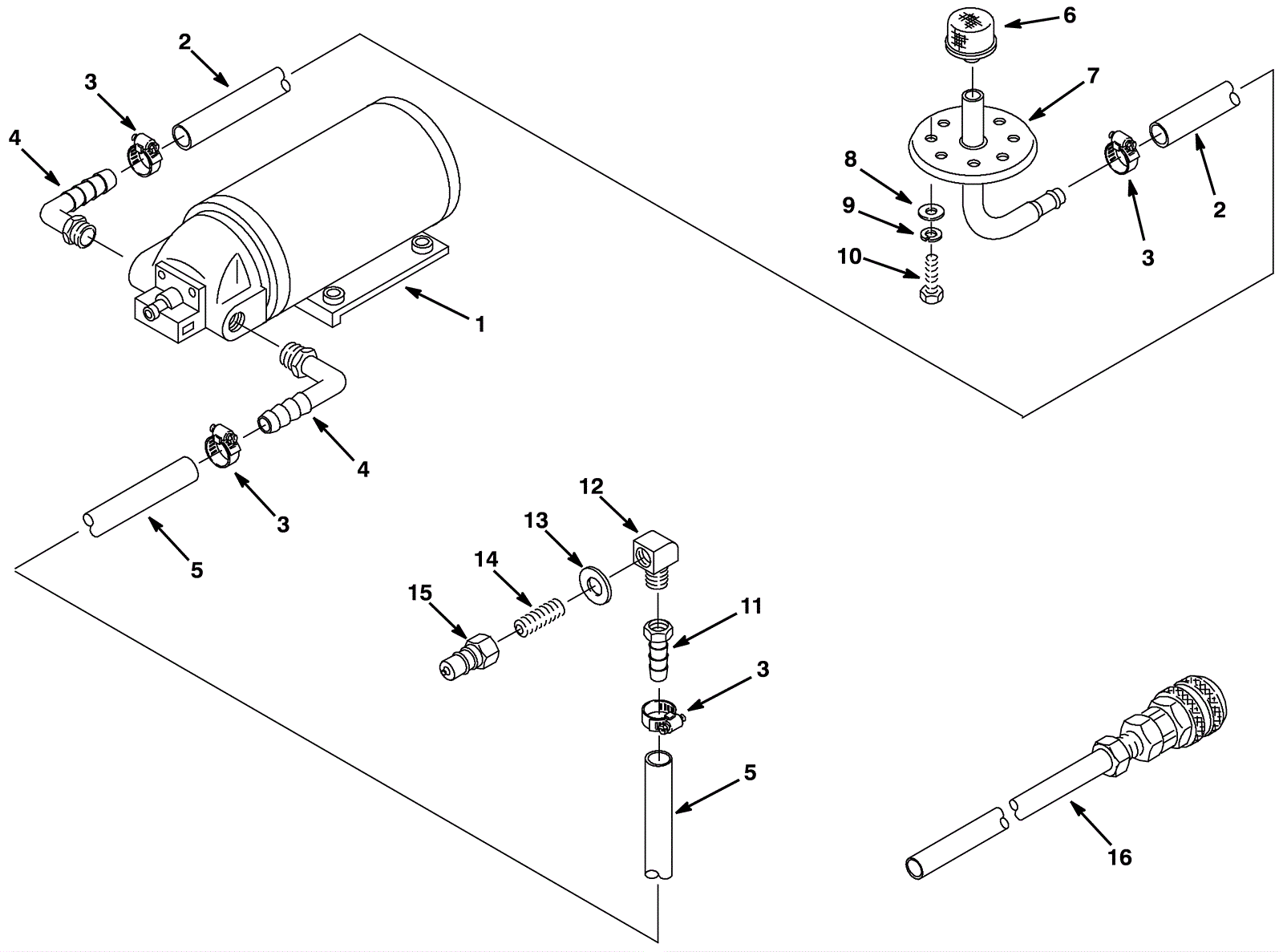

EX-CAN-15LP Plumbing Assembly

#PartDescription ReqNotesAvailability
1a 175-6011 120V 100 PSI pump 1 usually ships 16-21 days
1b 991-8225 Shurflo pump 1 usually ships 13-17 days
2 175-1978 Hose 3/8 x 24 inch 1 usually ships 1-5 days
3 175-6081 Hose clamp 4 usually ships 1-5 days
4 175-6019 90 degree barbed elbow 2 usually ships 16-21 days
5 175-1982 Hose 3/8 x 16 inches 1 usually ships 1-5 days
6 175-6079 Mesh filter screen 1 usually ships 16-21 days
7 175-6021 Bladder plate fitting 1 usually ships 16-21 days
8 999-0016 Washer 1/4 flat plain finish 4 usually ships 11-14 days
9 999-0632 Washer 1/4 split lock stainless steel 4 usually ships 11-14 days
10 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel 4 usually ships 11-14 days
11 175-6022 Brass fitting 1 usually ships 16-21 days
12 175-2614 90 degree elbow fitting 1 usually ships 16-21 days
13 175-1825 Washer 1 usually ships 16-21 days
14 175-6244 Nipple 1 usually ships 16-21 days
15 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) 1 usually ships 14-16 days
16 175-3579 Pump out hose 1 usually ships 16-21 days
