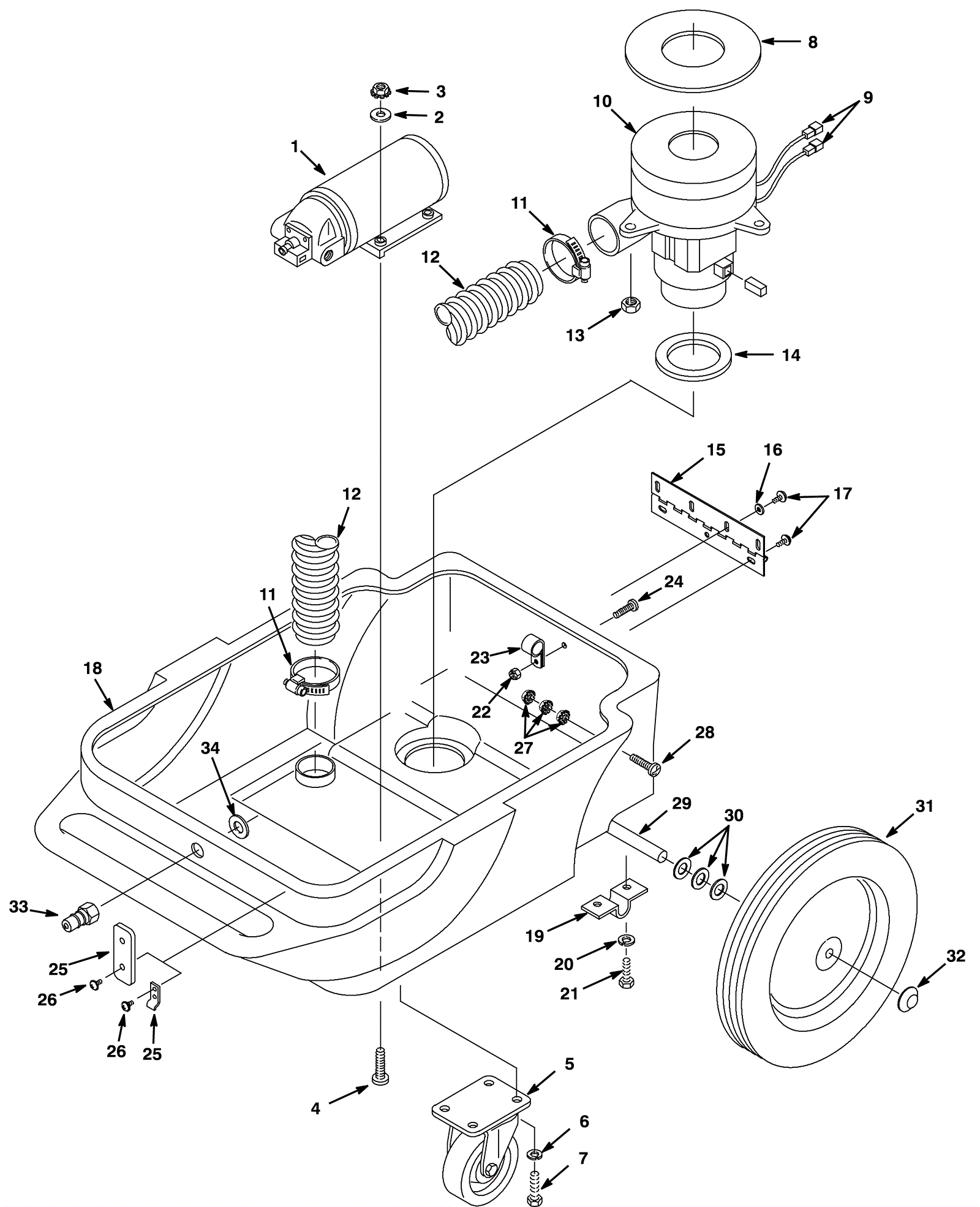

EX-CAN-15LP Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
1a 175-6011 120V 100 PSI pump $519.75 1 usually ships 10-13 days
1b 991-8225 Shurflo pump $359.88 1 ships same day
2 999-0393 Washer 3/16 flat aluminum $0.99 4 ships same day
3 999-0356 Nut 10-24 lock stainless steel $0.99 4 ships same day
4 999-0002 Screw 10-24 x 1 1/2 pan head phillips zinc plated $0.99 4 usually ships 16-20 days
5 175-0888 4 inch swivel caster wheel $67.87 2 ships same day
6 999-0632 Washer 1/4 split lock stainless steel $0.99 8 ships same day
7 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel $0.99 8 ships same day
8 175-6084 Vacuum motor gasket $13.97 1 usually ships 10-13 days
9 175-0923 Male terminal $5.28 2 usually ships 10-13 days
10a 175-0198 120V 3 stage vacuum motor $644.82 1 (includes 10b and 10c) usually ships 10-13 days
10b 175-6086 Carbon brush (pkg of 2) $26.18 1 usually ships 10-13 days
10c 991-1220 Plastic fan cover (for plastic covered brushes) $19.11 1 ships same day
10d 991-1213 120V 3 stage vacuum motor tangential $165.85 1 usually ships 18-24 days
11 175-2057 Hose clamp $6.27 2 usually ships 1-5 days
12 175-1917 Hose 2 x 28 inch $40.70 1 usually ships 10-13 days
13 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 3 ships same day
14 175-1920 Vacuum motor intake gasket $8.80 1 usually ships 10-13 days
15 175-6077 Tank hinge $14.19 1 ships same day
16 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
17 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel $0.99 7 ships same day
18 275-9853 Chassis housing $590.81 1 usually ships 1-5 days
19 175-6098 Axle bracket $19.47 2 usually ships 10-13 days
20 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
21 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel $0.99 4 ships same day
22 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
23 175-0339 P clamp $4.49 1 usually ships 10-13 days
24 999-1031 Screw 10-24 x 1 truss head phillips stainless steel $0.99 1 ships same day
25a 175-3369 Hood latch $35.09 2 usually ships 10-13 days
25c 991-8561 Rubber draw latch with keeper $29.57 2 usually ships 18-24 days
25b 175-6536 Tank strap $8.36 2 (CSA model) usually ships 1-5 days
26a 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel $0.99 8 ships same day
26b 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel $0.99 4 (CSA model) ships same day
27 999-0356 Nut 10-24 lock stainless steel $0.99 3 ships same day
28 999-1031 Screw 10-24 x 1 truss head phillips stainless steel $0.99 1 ships same day
29 175-1900 Axle $24.86 1 usually ships 10-13 days
30 999-0187 Washer 1/2 flat plain finish $0.99 6 ships same day
31 175-1902 Wheel $132.33 2 usually ships 10-13 days
32 175-6097 Hub cap $5.50 2 ships same day
33 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) $12.21 1 ships same day
34 175-1825 Washer $5.15 1 ships same day
