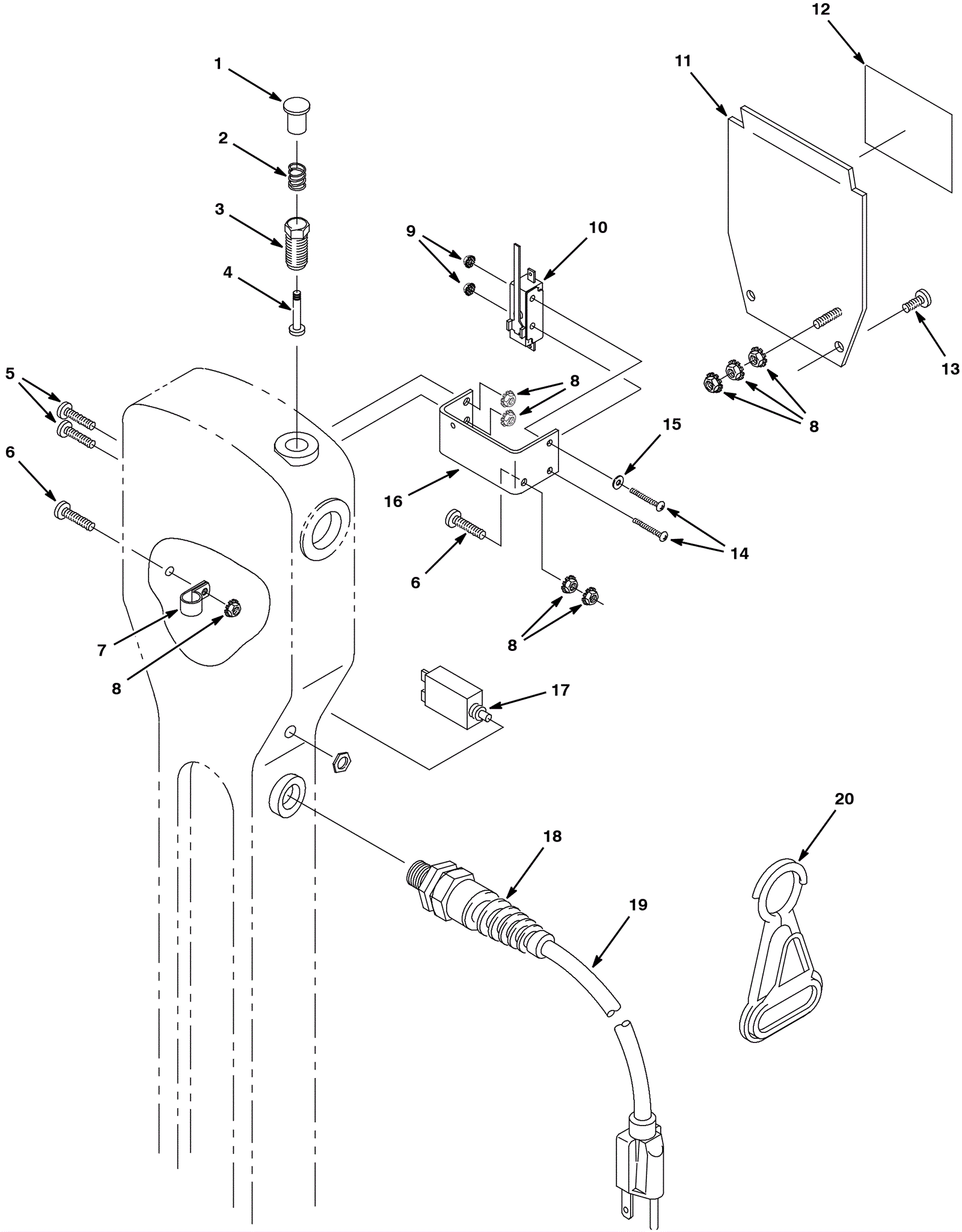

BR-1600-NDC Handle Assembly - Internal

#PartDescriptionPriceReqNotesAvailability
1 175-0334 Locking release button $12.32 1 ships same day
2 175-0335 Locking pin spring $5.28 1 ships same day
3 175-0331 Locking socket $16.50 1 usually ships 10-16 days
4 175-0332 Locking release pin $8.25 1 usually ships 10-16 days
5 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel $0.99 2 ships same day
6 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel $1.69 2 ships same day
7 175-0339 P clamp $4.49 1 usually ships 10-16 days
8 999-0356 Nut 10-24 lock stainless steel $0.99 8 ships same day
9 999-0144 Nut 6-32 k-lock zinc plated $0.99 2 ships same day
10 675-9886 Snap switch $15.84 1 usually ships 1-5 days
11a 275-5163 Rear handle plate with decal $77.55 1 (includes 12) usually ships 10-16 days
11b 475-2026 PLATE, HANDLE, REAR, AFMKT [FM-43-SS] $159.17 1 usually ships 10-16 days
12 275-5164 Warning decal $10.67 1 usually ships 1-5 days
13 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel $1.43 2 ships same day
14a 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 2 (120V) ships same day
14b 999-1157 Screw 6-32 x 1 5/8 pan head phillips zinc $0.99 2 (230V) ships same day
15 999-1158 Washer #6 flat stainless steel $0.99 1 ships same day
16 175-0338 Switch bracket $25.63 1 usually ships 10-16 days
17a 175-1482 17amp circuit breaker $47.74 1 (120V) usually ships 10-16 days
17b 175-1483 20 amp circuit breaker $77.77 1 (230V) usually ships 10-16 days
18a 175-5502 Strain relief $15.07 1 (120V) ships same day
18b 175-0340 Strain relief $11.11 1 (230V) usually ships 10-16 days
19a 175-1484 14/3 power cord 75 foot $200.64 1 (120V) usually ships 10-16 days
19b 175-0994 Cord 23 inches $157.63 1 (230V) usually ships 1-5 days
20 175-0236 Cord belt clip $11.00 1 ships same day
