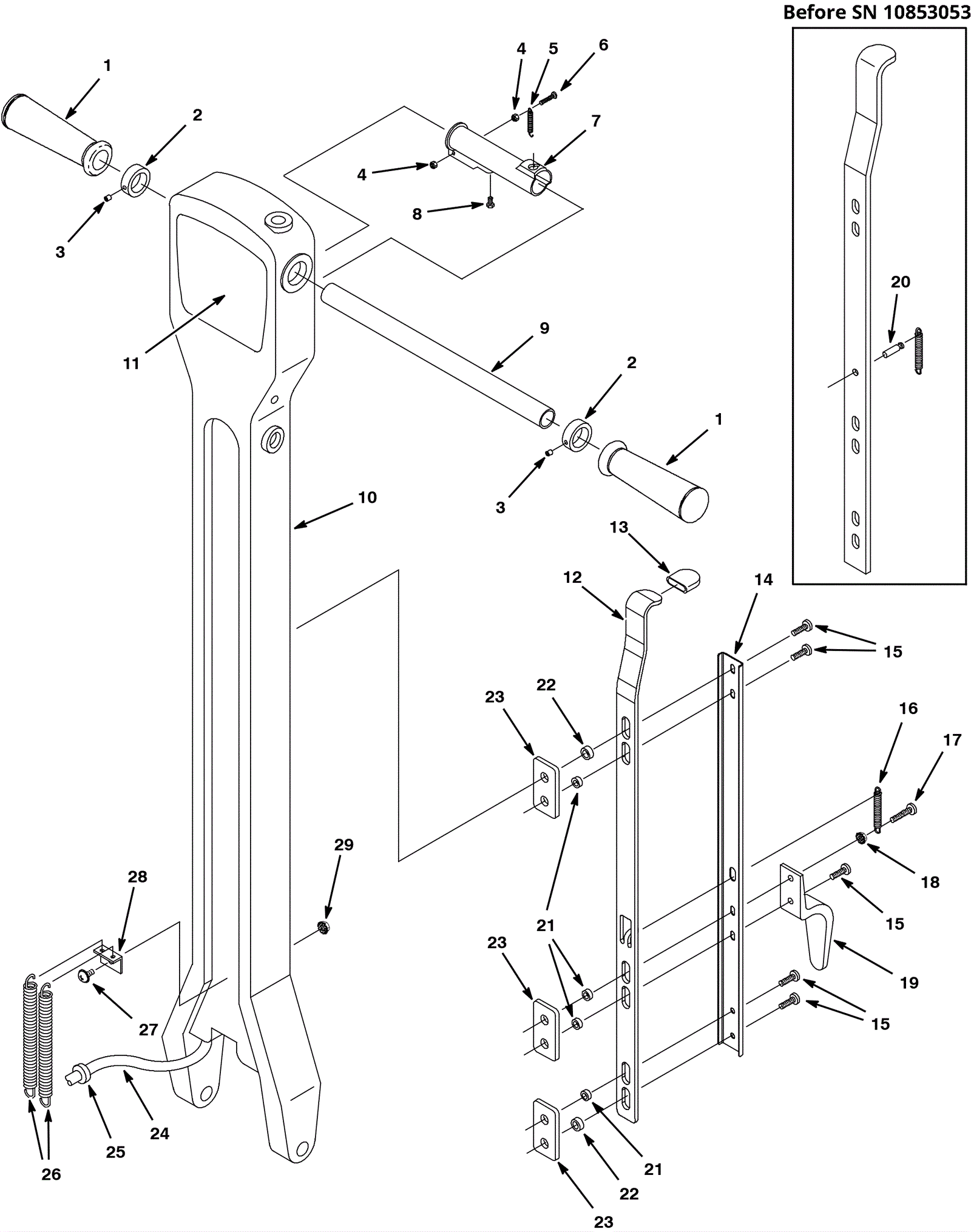

BR-1600-NDC Handle Assembly - External

#PartDescriptionPriceReqNotesAvailability
1a 175-2703 Handle grip $5.02 2 ships same day
1b 991-8571 Handle grip $2.91 2 (NON-OEM) ships same day
2 175-1168 Handle collar $6.05 2 usually ships 5-16 days
3 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 2 ships same day
4 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 2 ships same day
5 175-0336 Extension spring $5.50 1 usually ships 5-16 days
6 999-0827 Screw 8-32 x 1 pan head phillips zinc plated $0.99 1 ships same day
7 175-0333 Handle sleeve $23.87 1 usually ships 5-16 days
8 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 1 ships same day
9 175-0328 Handle tube $26.84 1 usually ships 5-16 days
10 275-9847 Handle $304.92 1 usually ships 5-16 days
11a 275-9848 Tennant/Nobles decal $7.48 1 usually ships 5-16 days
11b 275-9849 Tennant decal $27.94 1 usually ships 1-5 days
12a 475-1646 Handle latch $58.08 1 (after SN 10853052) usually ships 5-16 days
12b 475-1646 Handle latch $58.08 1 (before SN 10853053) usually ships 5-16 days
13 175-0322 Handle latch grip $5.50 1 usually ships 5-16 days
14 175-1273 Handle latch channel $40.59 1 usually ships 5-16 days
15 999-1214 Screw 1/4-20 x 3/4 truss head slotted stainless steel $1.23 5 ships same day
16 175-7002 Extension spring $5.50 1 usually ships 5-16 days
17 999-1077 Screw 1/4-20 x 1/2 truss head phillips stainless steel $2.24 1 ships same day
18 999-0015 Nut 1/4-20 k-lock zinc plated $0.99 1 ships same day
19 175-0314 Cord hook $28.93 1 ships same day
20 175-0320 Pin $4.88 1 (before SN 10853053) ships same day
21 175-0318 Sleeved bushing $4.75 4 ships same day
22 175-0317 Sleeved bushing $5.50 2 ships same day
23 175-0319 Plate $19.03 3 usually ships 5-16 days
24a 175-1486 14/3 interconnect cord 57 inch $28.27 1 (OEM) ships same day
24b 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 1 (NON-OEM) usually ships 8-20 days
24c 991-5001 14/3 extension cord 50 foot (yellow) $103.23 1 (NON-OEM) ships same day
25 175-1487 Strain relief bushing $5.02 1 ships same day
26 175-1467 Spring $9.57 2 ships same day
27 999-1214 Screw 1/4-20 x 3/4 truss head slotted stainless steel $1.23 1 ships same day
28 175-1485 Spring bracket $19.03 1 usually ships 5-16 days
29 999-0015 Nut 1/4-20 k-lock zinc plated $0.99 1 ships same day
