| # | Part | Description |
Req | Notes | Availability |
|---|

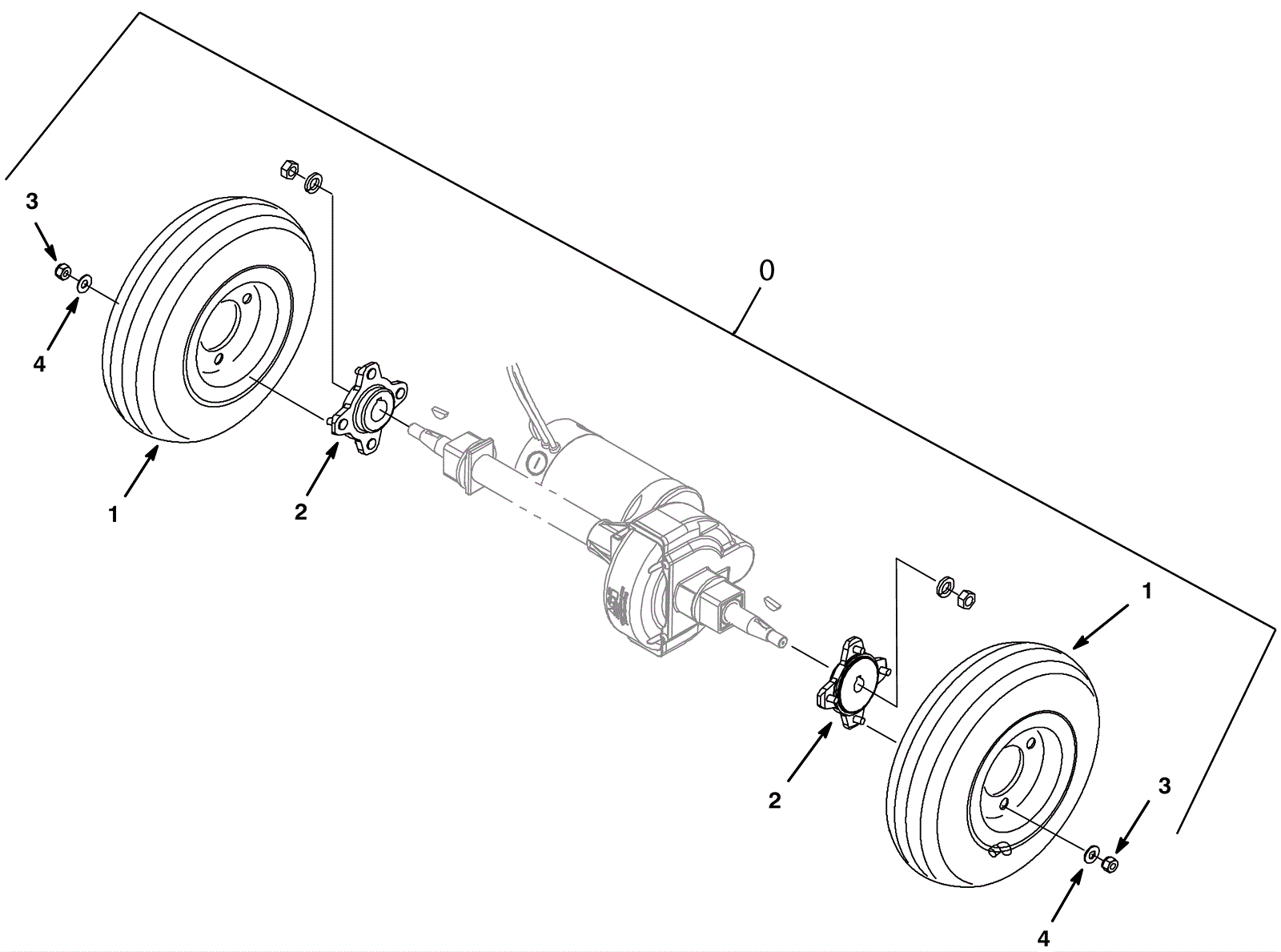

0a |
275-4992
|
Pneumatic wheel assembly |
1 |
(includes 1a, 2-4) |
|
0b |
275-4994
|
Foam-filled wheel assembly |
1 |
(includes 1b, 2-4) |
|
1a |
675-9896
|
Air filled (pneumatic) tire (OBSOLETE) |
2 |
|
|
1b |
175-3652
|
Foam filled wheel |
2 |
|
|
2 |
275-4993
|
Wheel hub |
2 |
|
|
3 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
8 |
|
|
4 |
999-0016
|
Washer 1/4 flat plain finish |
8 |
|
|
