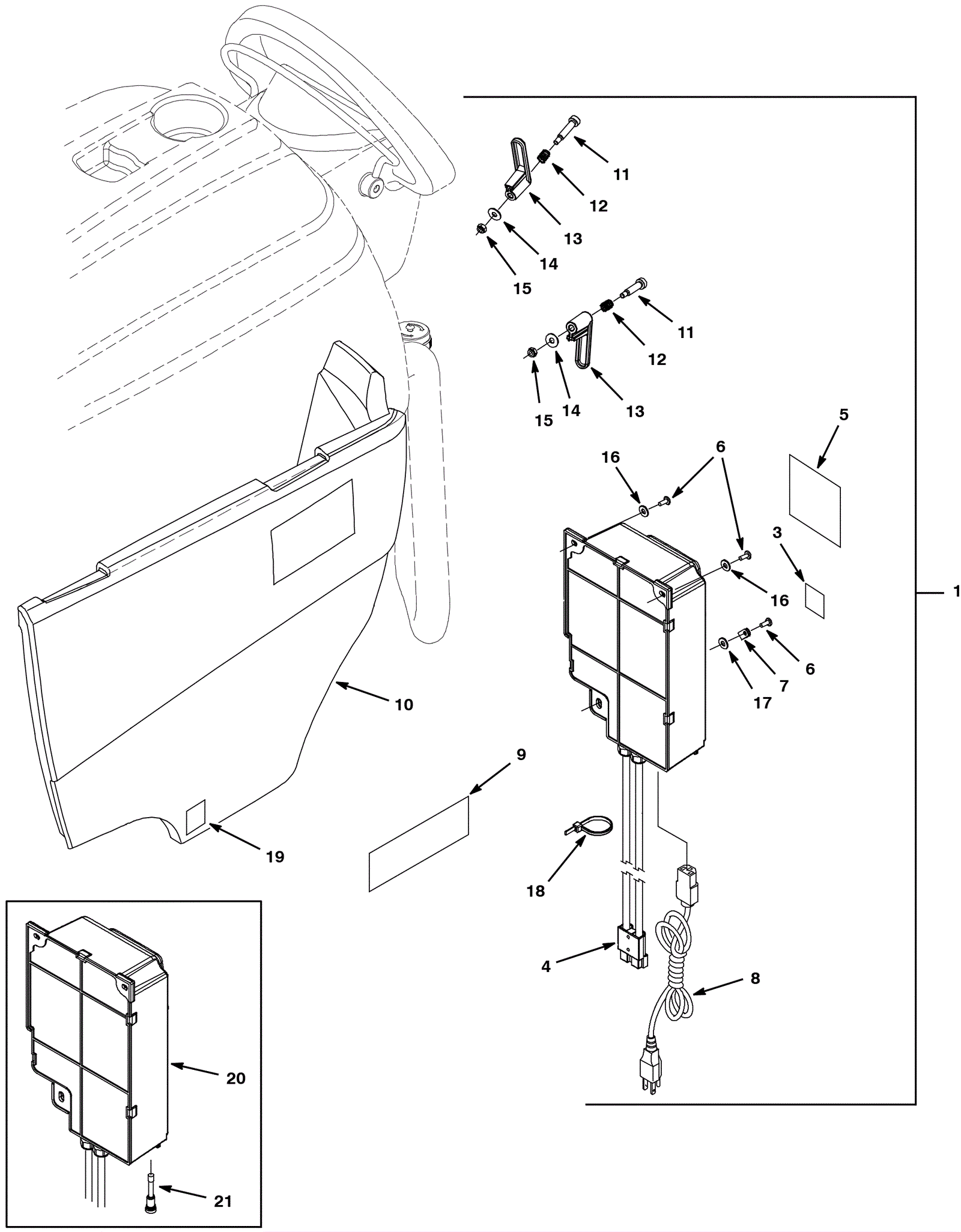

T5 Onboard Charger Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-1583 24V onboard battery charger kit (AGM/wet capable) $1,086.47 1 (includes 2-19) (after SN 106372987) (for models without iris telemetry battery manager functionality) (charger not available separately) usually ships 5-16 days
3 175-4567 Hazardous voltage decal (OBSOLETE) $2.64 1 usually ships 1-5 days
4 991-2103 50amp charger plug SB50 with pins (red) $6.17 1 usually ships 5-16 days
5 275-1586 Charger decal $37.29 1 usually ships 1-5 days
6 175-3689 Screw M5-.8 x 12mm truss head phillips stainless steel $3.08 3 ships same day
7 175-5421 P clamp $3.96 1 usually ships 5-16 days
8a 275-1585 16/3 charger power cord 15 foot (black) $80.83 1 (OEM) ships same day
8b 991-8576 16/3 power cord 15 foot (black) $32.85 1 (NON-OEM) ships same day
9 275-1404 Charger setting instruction decal $15.18 1 usually ships 1-5 days
10 275-4991 Side panel (OBSOLETE) $293.48 1 usually ships 1-5 days
11 175-9855 Bolt M6-.8 x 30mm shield $7.48 2 usually ships 5-16 days
12 175-7507 Compression spring $3.30 2 ships same day
13 175-7509 Cord hook $8.25 2 ships same day
14 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
15 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
16 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
17 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
18 175-7795 Cable tie $3.85 6 ships same day
19 175-8643 Parking brake decal $3.41 1 usually ships 1-5 days
20 275-6572 24V onboard battery charger kit $905.19 1 (includes 21) (before SN 10632988) ships same day
21 275-1584 15amp fuse $3.30 1 (for chargers with external fuse replacement on bottom of charger) usually ships 5-16 days
