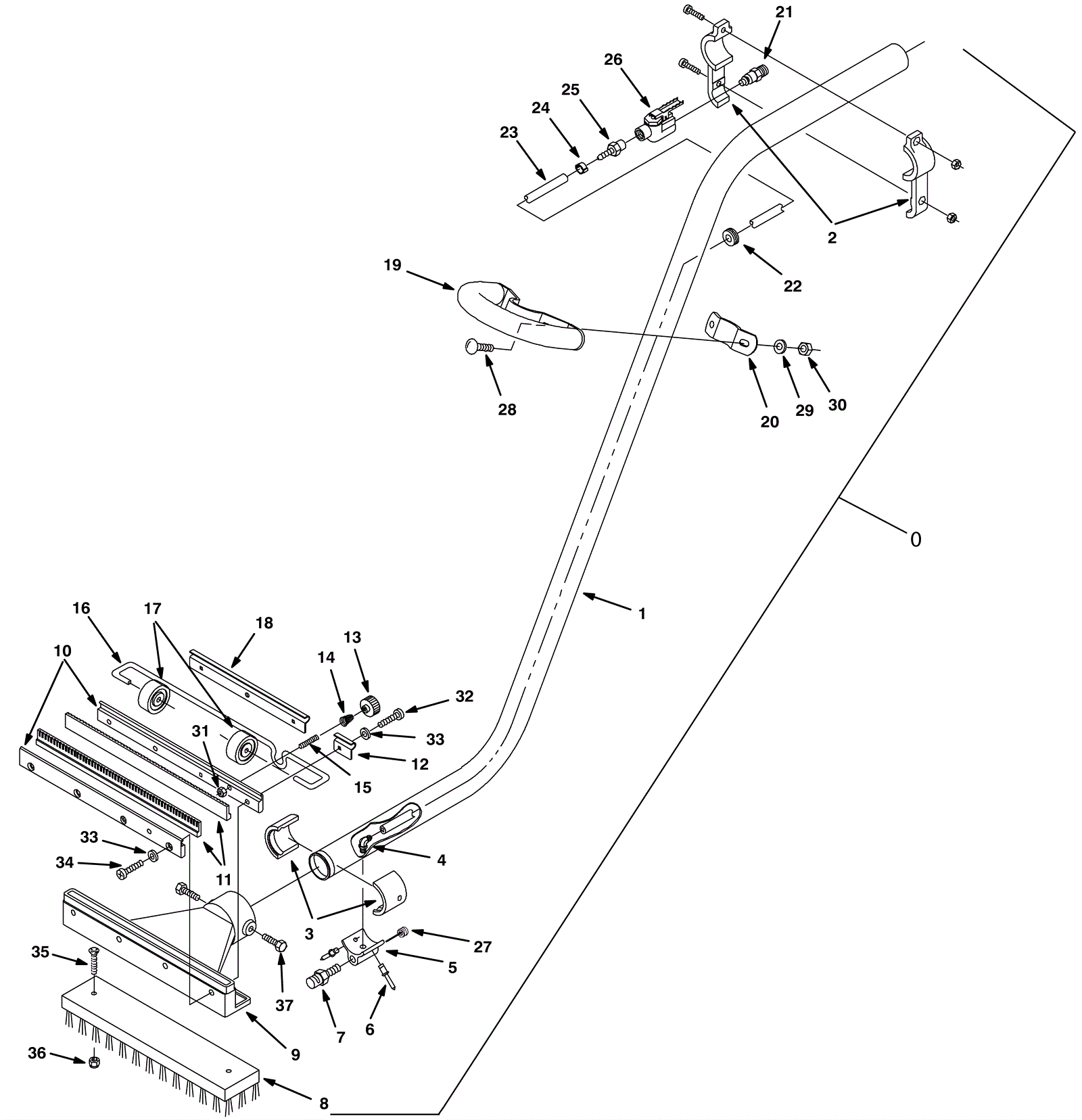

Deluxe Power Wand Assembly

#PartDescription ReqNotesAvailability
0 175-8759 Deluxe power wand assembly 1 (includes 1-8a, 9-37)
1 175-6351 Double bend wand 1
2 175-6380 Valve mounting bracket 1
3 175-6353 Head and wand adapter 2
4 175-1662 90 degree elbow fitting 1
5 175-6354 Spray nozzle adapter 1
6 175-6355 Pop rivet 2
7 175-6356 Spray nozzle 1
8a 175-9734 Polypropylene power wand brush with fastener (OBSOLETE) 1 (standard)
8b 996-1269 Abrasive power wand brush with fastener 1 (optional)
9 175-6358 Wand head (OBSOLETE) 1
10 175-6361 Squeegee blade retainer 2
11 175-6362 Squeegee blade 17 inch 2
12 175-6363 Axle bracket 1
13 175-1384 Thumb nut 1
14 175-5810 Conical compression spring 1
15 175-6366 Adjustment stud 1
16 175-6368 Axle 1
17 175-6369 Wheel (rubber) 2
18 175-6370 Axle bracket 1
19 175-6371 Wand handle 1
20 175-6373 Handle bracket 1
21 175-6374 Male quick connect plug 1
22 175-6376 Grommet 1
23 175-6377 Solution hose 1
24 175-6378 Hose clamp 1
25 175-6379 1/4 inch hose barb fitting 1
26 175-1683 Water control valve 1
27 175-6121 Brass plug 1
28 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 2
29 999-1261 Washer M6 flat stainless steel 2
30 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
31 999-1308 Nut M6-1 hex stainless steel 1
32 999-1090 Screw M5-.8 x 10mm pan head phillips zinc plated 4
33 999-0053 Washer #10 split lock plain finish 8
34 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel 4
35 175-5812 Screw 4 x 30 flat phillips 2
36 999-0954 Nut M4-.7 nylon insert lock stainless steel 2
37 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel 2
