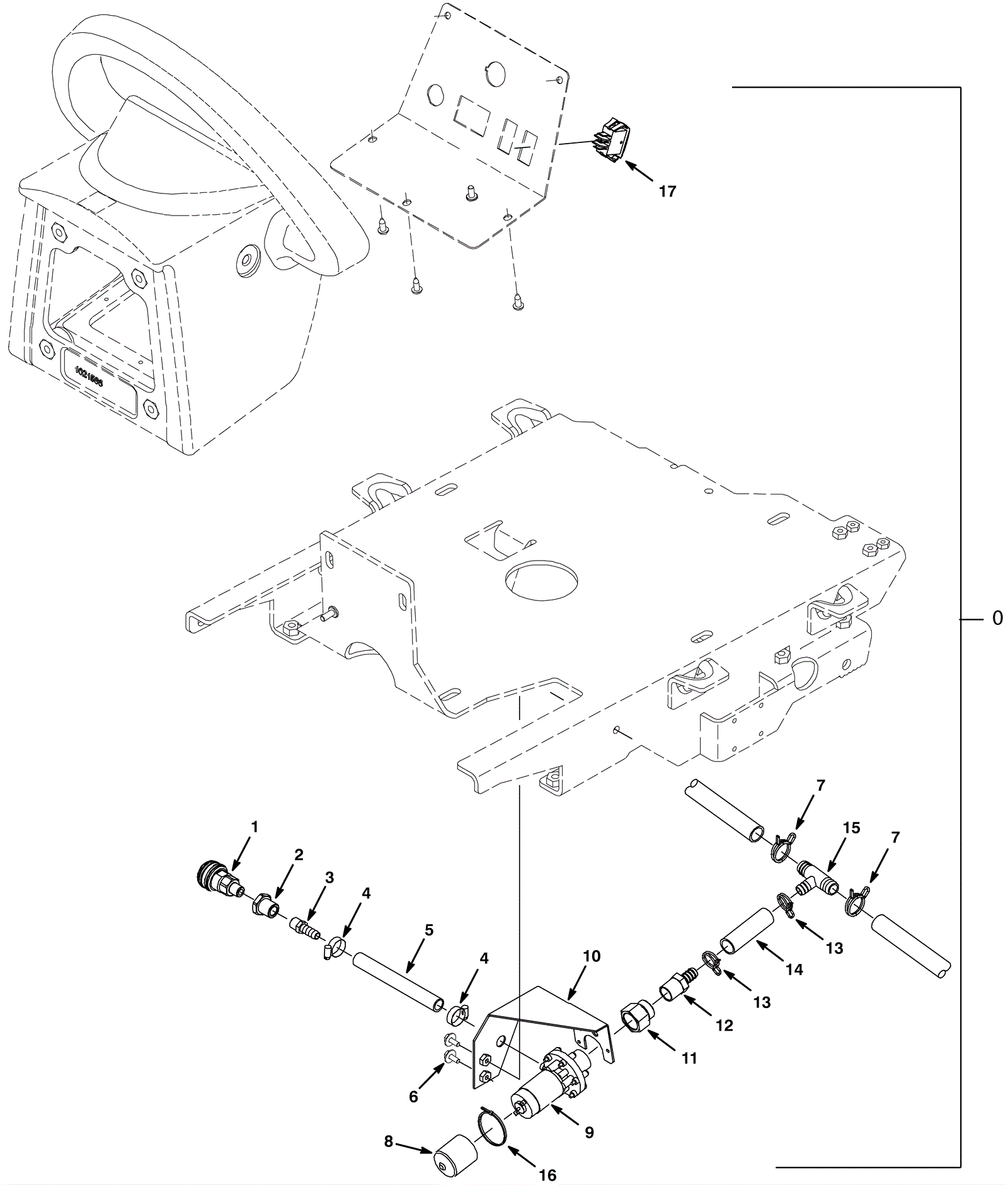

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
275-4988
|
Wand pump assembly (OBSOLETE) |
1 |
(includes 1-17) |
|
1 |
175-9723
|
Brass female quick connect fitting |
1 |
|
|
2 |
175-4814
|
Brass strainer fitting |
1 |
|
|
3 |
175-2613
|
Straight brass fitting |
1 |
|
|
4 |
997-2002
|
Hose clamp #6 |
2 |
|
|
5 |
175-6318
|
Hose 3/8 x 8 inch |
1 |
|
|
6 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
2 |
|
|
7 |
275-5314
|
Hose clamp |
2 |
|
|
8 |
175-8773
|
Vinyl cap |
1 |
|
|
9 |
175-2840
|
24V solution pump |
1 |
|
|
10 |
275-1452
|
Bracket |
1 |
|
|
11 |
275-1453
|
Brass fitting |
1 |
|
|
12 |
175-8668
|
Plastic fitting |
1 |
|
|
13 |
375-0291
|
Hose clamp |
2 |
|
|
14a |
275-1454
|
12 inch vinyl hose |
1 |
(OEM) |
|
14b |
991-1405
|
Vinyl tubing 1/2 x 3/4 (sold by the inch) |
10 in |
(NON-OEM) |
|
15 |
275-1455
|
Tee fitting |
1 |
|
|
16 |
175-7795
|
Cable tie |
2 |
|
|
17 |
175-7871
|
Rocker switch |
1 |
(wand) |
|
