| # | Part | Description |
Req | Notes | Availability |
|---|

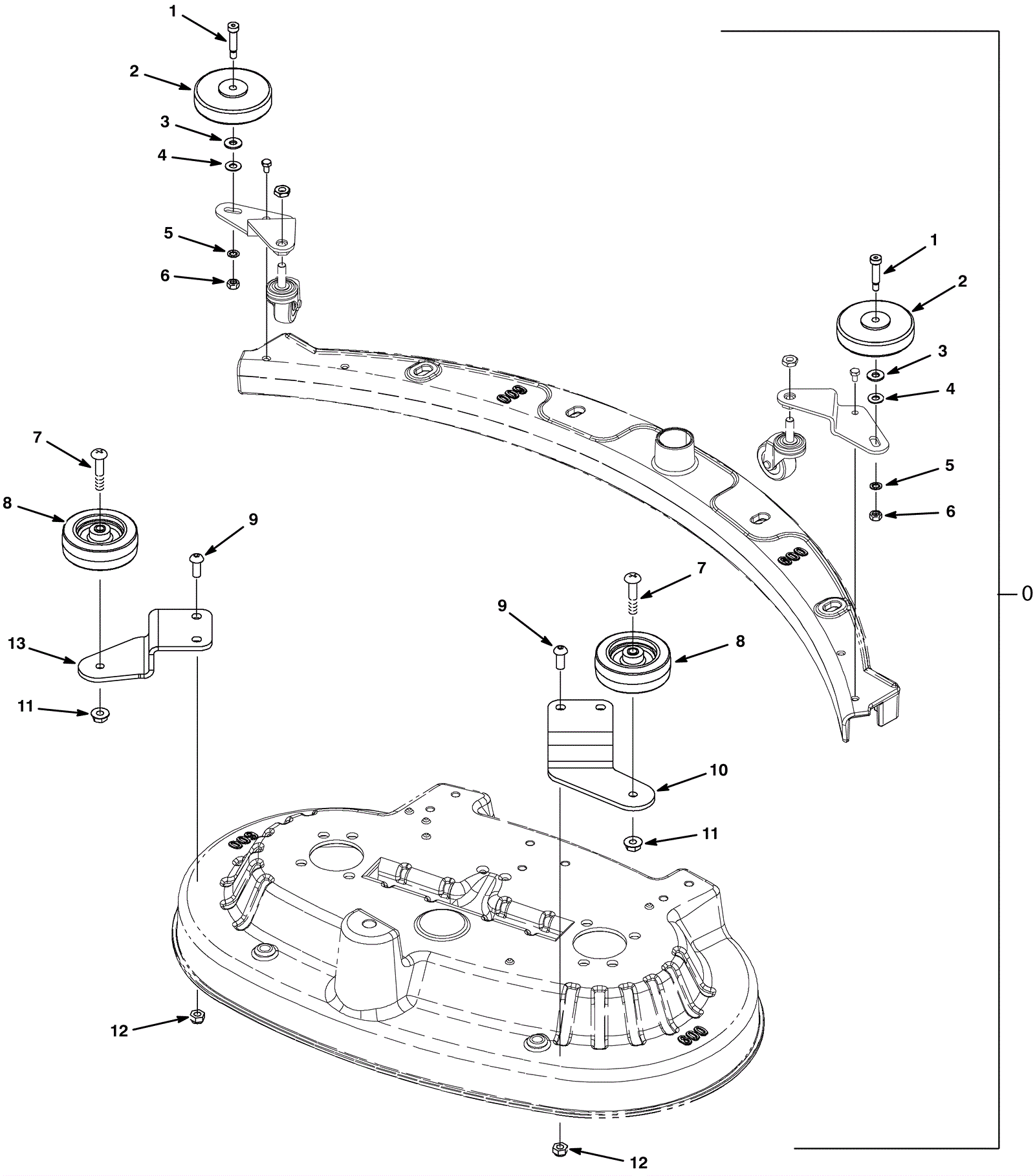

0 |
275-4986
|
Guide wheel assembly |
1 |
(includes 1-13) |
|
1 |
175-3719
|
Screw 3/8 x 1 1/4 shoulder |
2 |
|
|
2 |
275-5209
|
Wheel (gray) |
2 |
|
|
3 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
4 |
999-1666
|
Washer M7 flat stainless steel |
2 |
|
|
5 |
999-1053
|
Washer 5/16 internal star lock stainless steel |
2 |
|
|
6 |
999-0593
|
Nut 5/16-18 hex stainless steel |
2 |
|
|
7 |
275-4987
|
Screw M8-1.25 x 40mm truss head phillips |
2 |
|
|
8 |
175-0117
|
Guide wheel with bushing |
2 |
|
|
9 |
175-4927
|
Screw M8-1.25 x 20mm button head |
4 |
|
|
10 |
275-1479
|
Left hand roller bracket |
1 |
|
|
11 |
999-0665
|
Nut M8-1.25 flange lock |
2 |
|
|
12 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
4 |
|
|
13 |
275-1461
|
Right hand roller bracket |
1 |
|
|
