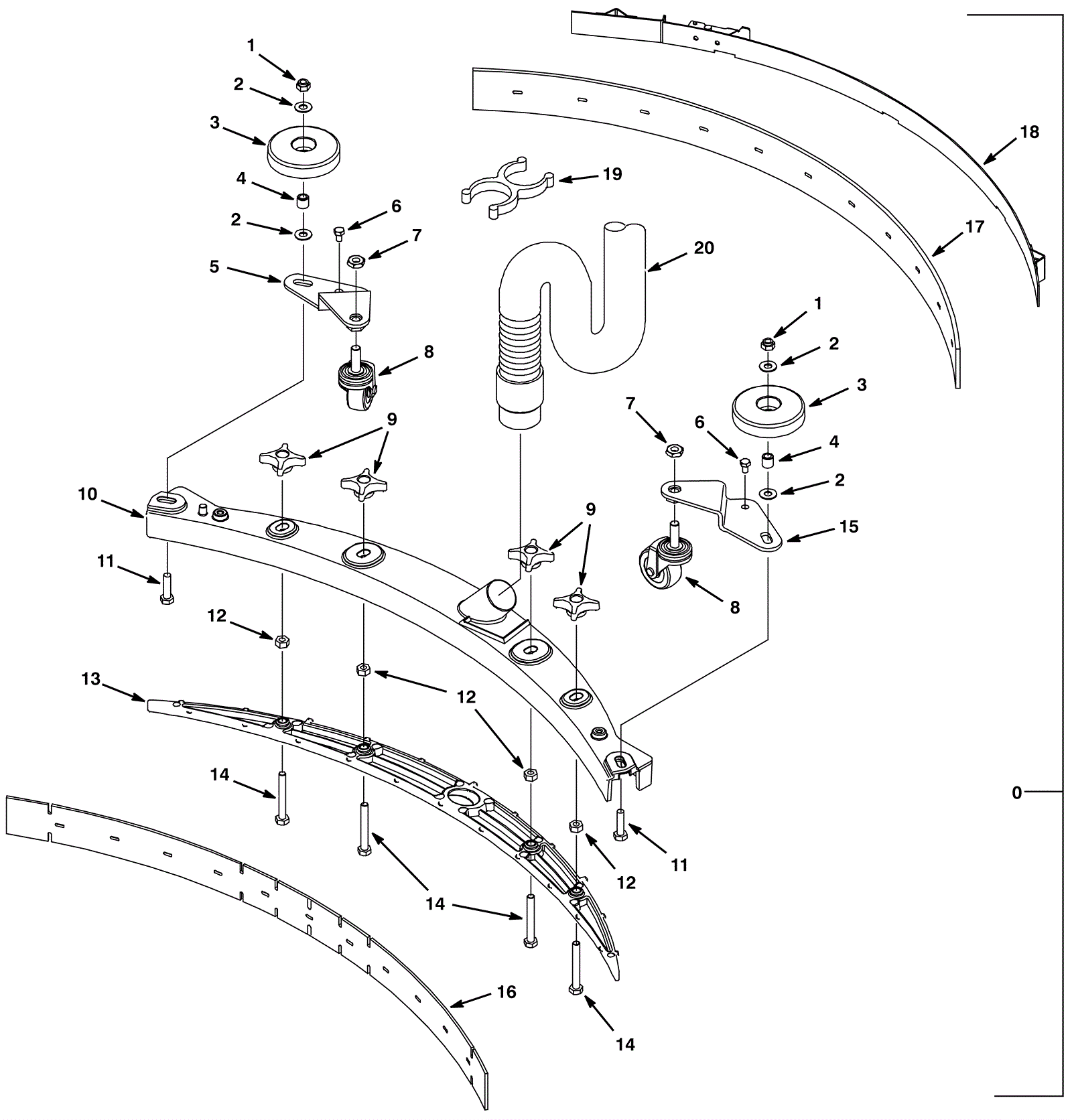

T5 E Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
0a 175-7951 20 inch (500mm) squeegee assembly $428.12 1 (includes 1-4, 5a, 6a, 7-8, 9a, 10a, 11-12, 13a, 14, 15a, 16a, 17a, 18a) ships same day
0b 275-1549 24 inch (600mm) squeegee assembly $585.97 1 (includes 1-4, 5b, 6b, 7-8, 9b, 10b, 11-12, 13b, 14, 15b, 16d, 17d, 18b) ships same day
0c 275-1562 28 inch (700mm) squeegee assembly $651.75 1 (includes 1-4, 5b, 6b, 7-8, 9b, 10c, 11-12, 13c, 14, 15b, 16g, 17g, 18c) ships same day
0d 275-1572 32 inch (800mm) squeegee assembly $630.76 1 (includes 1-4, 5a, 6b, 7-8, 9b, 10d, 11-12, 13d, 14, 15a, 16j, 17j, 18d) ships same day
1 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
2 999-0024 Washer 5/16 flat stainless steel $1.34 6 (qty 4 for 20 inch) ships same day
3a 175-7919 Guide wheel $5.50 2 ships same day
3b 991-8570 Bumper wheel $2.55 2 (NON-OEM) ships same day
4 175-2249 Sleeve $3.83 2 ships same day
5a 175-7952 Right hand mounting plate $42.35 1 (20 inch and 32 inch) usually ships 5-16 days
5b 275-1550 Right side mounting plate $120.45 1 (24 inch, 26 inch, and 28 inch) ships same day
6a 175-3298 Bolt M6-1 x 12mm hex head $4.09 2 (20 inch) ships same day
6b 175-0536 Bolt M6-1 x 20mm hex head thread forming $4.09 4 (24 inch, 26 inch, 28 inch, and 32 inch) ships same day
7 999-1625 Nut M10-1.5 hex jam stainless steel $1.54 2 ships same day
8a 175-7953 Swivel caster wheel $21.78 2 ships same day
8b 991-8581 Swivel caster wheel $9.32 2 (NON-OEM) ships same day
9a 175-7954 Star knob $5.50 4 (20 inch) ships same day
9b 275-1552 Star knob $33.55 4 (24 inch, 26 inch, 28 inch and 32 inch) ships same day
10a 175-7955 20 inch (500mm) squeegee weldment $313.61 1 ships same day
10b 275-1551 24 inch (600mm) squeegee weldment $278.74 1 usually ships 5-16 days
10c 275-1563 28 inch (700mm) squeegee weldment $311.96 1 ships same day
10d 275-1574 32 inch (800mm) squeegee weldment $346.83 1 ships same day
11 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 ships same day
12 999-1424 Nut M8-1.25 hex stainless steel $1.65 4 ships same day
13a 275-1548 20 inch (500mm) squeegee blade retainer $45.43 1 usually ships 5-16 days
13b 275-1554 24 inch (600mm) squeegee blade retainer $36.30 1 usually ships 5-16 days
13c 275-1564 28 inch (700mm) squeegee blade retainer $49.39 1 usually ships 5-16 days
13d 275-1575 32 inch (800mm) squeegee blade retainer $45.43 1 ships same day
14 999-1155 Screw M8-1.25 x 60mm hex head $1.87 4 ships same day
15a 175-7957 Left hand mounting plate $41.25 1 (20 inch and 32 inch) usually ships 5-16 days
15b 275-1553 Left side mounting plate $61.49 1 (24 inch, 26 inch, and 28 inch) usually ships 5-16 days
16a 175-7958 Squeegee blade 20 inch linatex front $19.69 1 ships same day
16b 175-7959 Squeegee blade 20 inch gum rubber front $18.70 1 ships same day
16c 175-7960 Squeegee blade 20 inch oil resistant front $55.55 1 ships same day
16d 275-1555 Squeegee blade 24 inch linatex front $27.61 1 ships same day
16e 275-1556 Squeegee blade 24 inch gum rubber front $19.36 1 usually ships 5-16 days
16f 275-1557 Squeegee blade 24 inch urethane front $66.44 1 ships same day
16g 275-1565 Squeegee blade 28 inch linatex front $31.90 1 ships same day
16h 275-1566 Squeegee blade 28 inch gum rubber front $18.48 1 ships same day
16i 275-1567 Squeegee blade 28 inch urethane front $71.72 1 usually ships 5-16 days
16j 275-1576 Squeegee blade 32 inch linatex front (red) $34.43 1 ships same day
16k 275-1577 Squeegee blade 32 inch gum rubber front (tan) $22.00 1 usually ships 5-16 days
16l 275-1578 Squeegee blade 32 inch urethane front $76.01 1 ships same day
17a 175-7961 Squeegee blade 20 inch linatex rear (red) $22.77 1 ships same day
17b 175-7962 Squeegee blade 20 inch gum rubber rear (tan) $21.45 1 ships same day
17c 175-7963 Squeegee blade 20 inch oil resistant rear $73.37 1 ships same day
17d 275-1559 Squeegee blade 24 inch linatex rear (red) $37.84 1 ships same day
17e 275-1560 Squeegee blade 24 inch gum rubber rear (tan) $23.21 1 ships same day
17f 275-1561 Squeegee blade 24 inch urethane rear $84.37 1 ships same day
17g 275-1569 Squeegee blade 28 inch linatex rear $44.55 1 ships same day
17h 275-1570 Squeegee blade 28 inch gum rubber rear (tan) $25.08 1 ships same day
17i 275-1571 Squeegee blade 28 inch urethane rear $93.06 1 ships same day
17j 275-1580 Squeegee blade 32 inch linatex rear (red) $46.75 1 ships same day
17k 275-1581 Squeegee blade 32 inch gum rubber rear (tan) $26.07 1 ships same day
17l 275-1582 Squeegee blade 32 inch urethane rear $103.62 1 ships same day
18a 175-7964 20 inch squeegee strap assembly $189.20 1 usually ships 5-16 days
18b 275-1558 24 inch squeegee strap assembly $108.68 1 ships same day
18c 275-1568 26-28 inch squeegee strap assembly $244.97 1 ships same day
18d 275-1579 32 inch squeegee strap assembly $244.97 1 ships same day
19 175-4772 Hose bracket $4.88 1 ships same day
20a 175-7966 Vacuum hose with short cuffs $45.10 1 ships same day
20b 991-5139 Vacuum hose with short cuffs $21.17 1 (NON-OEM) ships same day
21 175-3719 Screw 3/8 x 1 1/4 shoulder $6.05 1 (24 inch, 26 inch, 28 inch, and 32 inch) (included with 0d) ships same day
22 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 (24 inch, 26 inch, 28 inch, and 32 inch) (included with 0d) ships same day
23 991-2013 Wheel $8.70 1 (24 inch, 26 inch, 28 inch, and 32 inch) (included with 0d) ships same day
24 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 (24 inch, 26 innch, 28 inch, and 32 inch) (included with 0d) ships same day
