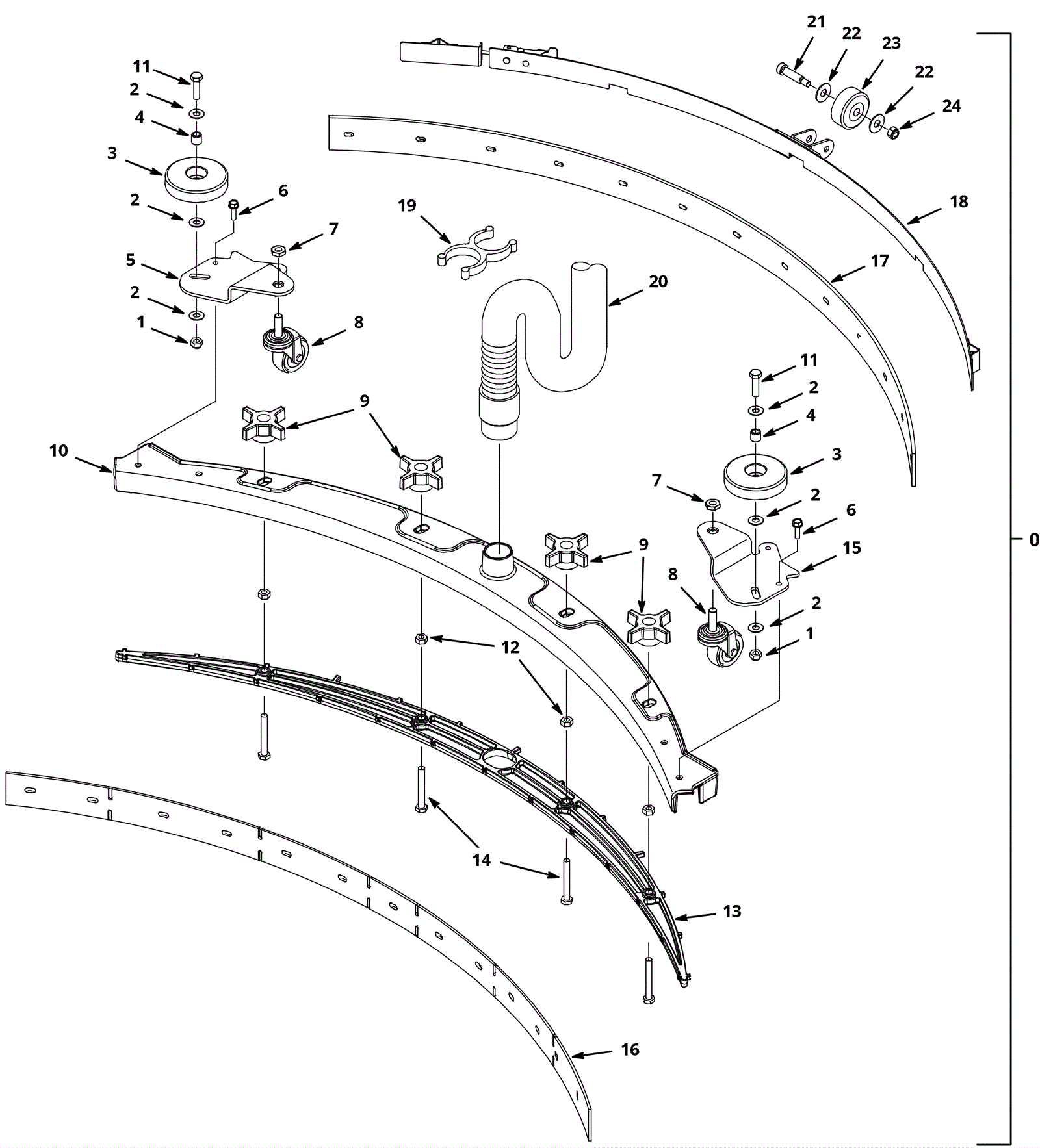

Squeegee Assembly

#PartDescription ReqNotesAvailability
0a 675-9899 20 inch (500mm) squeegee assembly 1 (includes 1-4, 5a, 6a, 7-8, 9a, 10a, 11-12, 13a, 14, 15a, 16a, 17a, 18a)
0b 275-1549 24 inch (600mm) squeegee assembly 1 (includes 1-4, 5b, 6b, 7-8, 9b, 10b, 11-12, 13b, 14, 15b, 16d, 17d, 18b)
0c 275-1562 28 inch (700mm) squeegee assembly 1 (includes 1-4, 5b, 6b, 7-8, 9b, 10c, 11-12, 13c, 14, 15b, 16g, 17g, 18c)
0d 275-1572 32 inch (800mm) squeegee assembly 1 (includes 1-4, 5a, 6b, 7-8, 9b, 10d, 11-12, 13d, 14, 15a, 16j, 17j, 18d)
1 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
2 999-0024 Washer 5/16 flat stainless steel 6 (qty 4 for 20 inch)
3a 175-7919 Guide wheel 2
3b 991-8570 Bumper wheel 2 (NON-OEM)
4 175-2249 Sleeve 2
5a 175-7952 Right hand mounting plate 1 (20 inch and 32 inch)
5b 275-1550 Right side mounting plate 1 (24 inch, 26 inch, and 28 inch)
6a 175-3298 Bolt M6-1 x 12mm hex head 2 (20 inch)
6b 175-0536 Bolt M6-1 x 20mm hex head thread forming 4 (24 inch, 26 inch, 28 inch, and 32 inch)
7 999-1625 Nut M10-1.5 hex jam stainless steel 2
8a 175-7953 Swivel caster wheel 2
8b 991-8581 Swivel caster wheel 2 (NON-OEM)
9a 375-0261 Star knob M8-1.25 4 (20 inch)
9b 275-1552 Star knob 4 (24 inch, 26 inch, 28 inch and 32 inch)
10a 175-7955 20 inch (500mm) squeegee weldment 1
10b 275-1551 24 inch (600mm) squeegee weldment 1
10c 275-1563 28 inch (700mm) squeegee weldment 1
10d 275-1574 32 inch (800mm) squeegee weldment 1
11 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 2
12 999-1424 Nut M8-1.25 hex stainless steel 4
13a 275-1548 20 inch (500mm) squeegee blade retainer 1
13b 275-1554 24 inch (600mm) squeegee blade retainer 1
13c 275-1564 28 inch (700mm) squeegee blade retainer 1
13d 275-1575 32 inch (800mm) squeegee blade retainer 1
14 999-1155 Screw M8-1.25 x 60mm hex head 4
15a 175-7957 Left hand mounting plate 1 (20 inch and 32 inch)
15b 275-1553 Left side mounting plate 1 (24 inch, 26 inch, and 28 inch)
16a 175-7958 Squeegee blade 20 inch linatex front 1
16b 175-7959 Squeegee blade 20 inch gum rubber front 1
16c 175-7960 Squeegee blade 20 inch oil resistant front 1
16d 275-1555 Squeegee blade 24 inch linatex front 1
16e 275-1556 Squeegee blade 24 inch gum rubber front 1
16f 275-1557 Squeegee blade 24 inch urethane front 1
16g 275-1565 Squeegee blade 28 inch linatex front 1
16h 275-1566 Squeegee blade 28 inch gum rubber front 1
16i 275-1567 Squeegee blade 28 inch urethane front 1
16j 275-1576 Squeegee blade 32 inch linatex front (red) 1
16k 275-1577 Squeegee blade 32 inch gum rubber front (tan) 1
16l 275-1578 Squeegee blade 32 inch urethane front 1
17a 175-7961 Squeegee blade 20 inch linatex rear (red) 1
17b 175-7962 Squeegee blade 20 inch gum rubber rear (tan) 1
17c 175-7963 Squeegee blade 20 inch oil resistant rear 1
17d 275-1559 Squeegee blade 24 inch linatex rear (red) 1
17e 275-1560 Squeegee blade 24 inch gum rubber rear (tan) 1
17f 275-1561 Squeegee blade 24 inch urethane rear 1
17g 275-1569 Squeegee blade 28 inch linatex rear 1
17h 275-1570 Squeegee blade 28 inch gum rubber rear (tan) 1
17i 275-1571 Squeegee blade 28 inch urethane rear 1
17j 275-1580 Squeegee blade 32 inch linatex rear (red) 1
17k 275-1581 Squeegee blade 32 inch gum rubber rear (tan) 1
17l 275-1582 Squeegee blade 32 inch urethane rear 1
18a 175-7964 20 inch squeegee strap assembly 1
18b 275-1558 24 inch squeegee strap assembly 1
18c 275-1568 26-28 inch squeegee strap assembly 1
18d 275-1579 32 inch squeegee strap assembly 1
19 175-4772 Hose bracket 1
20a 175-7966 Vacuum hose with short cuffs 1
20b 991-5139 Vacuum hose with short cuffs 1 (NON-OEM)
21 175-3719 Screw 3/8 x 1 1/4 shoulder 1 (24 inch, 26 inch, 28 inch, and 32 inch) (included with 0d)
22 999-0617 Washer 3/8 x 1 flat stainless steel 2 (24 inch, 26 inch, 28 inch, and 32 inch) (included with 0d)
23 991-2013 Wheel 1 (24 inch, 26 inch, 28 inch, and 32 inch) (included with 0d)
24 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1 (24 inch, 26 innch, 28 inch, and 32 inch) (included with 0d)
