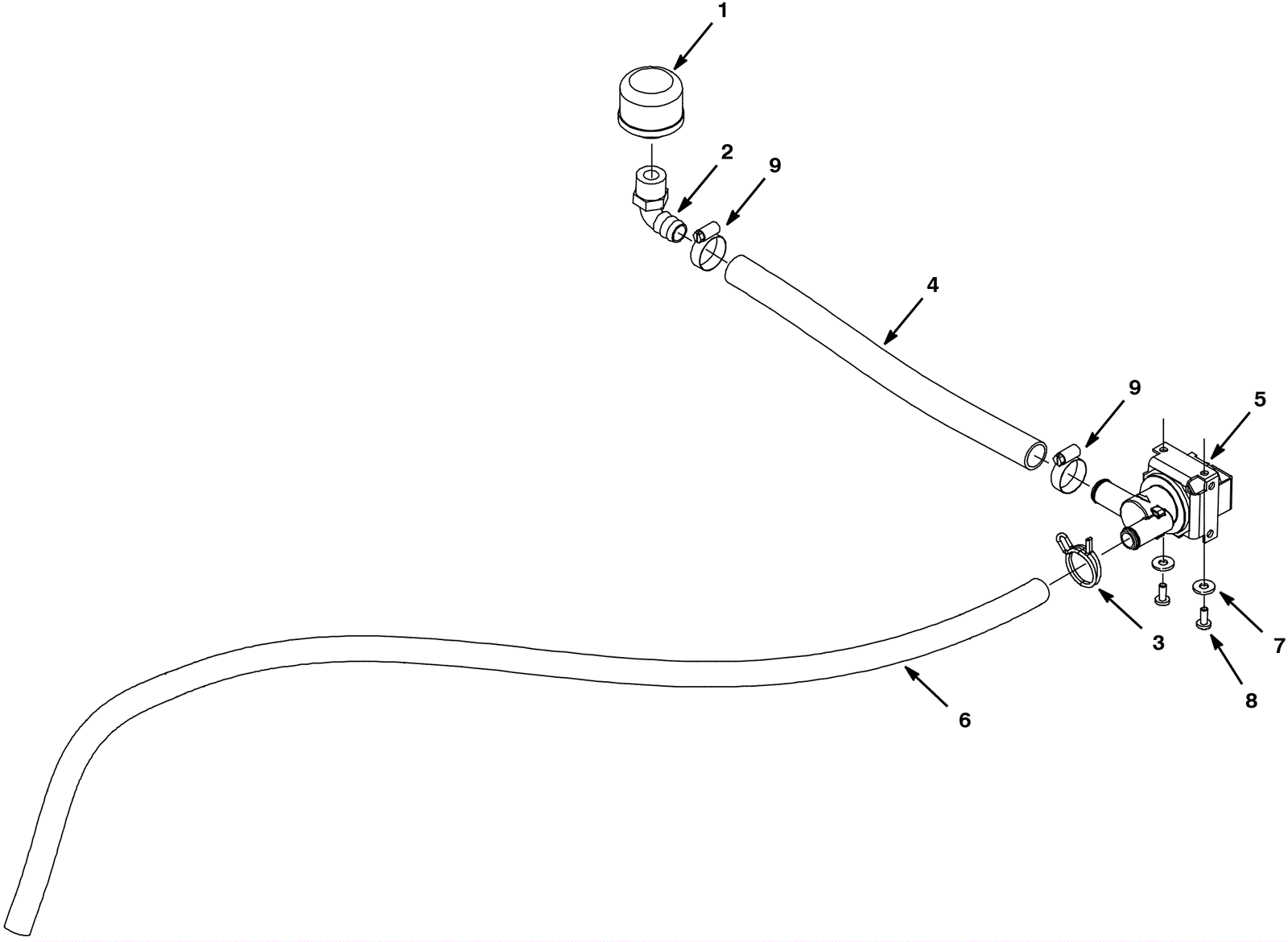

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-7832
|
Mesh filter screen stainless steel |
1 |
|
|
2 |
175-4744
|
90 degree elbow fitting |
1 |
|
|
3 |
275-5314
|
Hose clamp |
1 |
|
|
4 |
275-9404
|
2 foot hose (clear) |
1 |
|
|
5a |
275-1526
|
24V solution solenoid valve |
1 |
|
|
5b |
991-9173
|
24V solenoid valve |
|
(NON-OEM) |
|
6 |
275-1537
|
45 inch vinyl tubing |
1 |
|
|
7 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
8 |
999-1225
|
Screw M5-.8 x 12mm pan head phillips zinc |
2 |
|
|
9 |
175-6081
|
Hose clamp |
2 |
|
|
