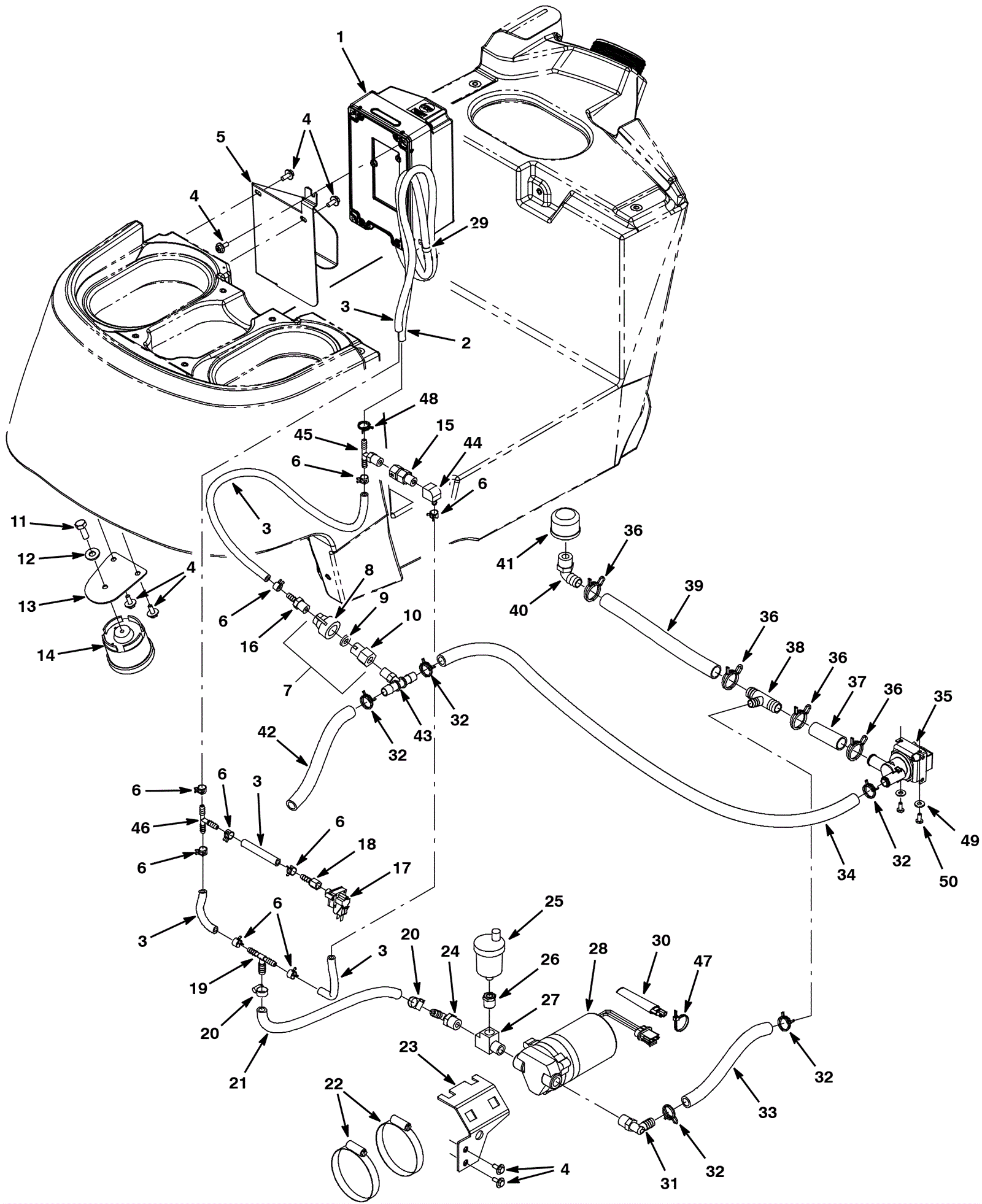

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-9935
|
ec-H20 module (OBSOLETE) |
1 |
|
|
2 |
275-4750
|
64 inch hose |
1 |
(between SN 10378380 and SN 10742212) |
|
3 |
175-6347
|
Hose 1/4 inch x 13 foot |
1 |
(between SN 10378380 and SN 10742212) |
|
4 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
7 |
|
|
5 |
275-4983
|
Mounting bracket |
1 |
(between SN 10378380 and SN 10742212) |
|
6 |
175-1656
|
Hose clamp |
9 |
(between SN 10378380 and SN 10742212) |
|
7 |
275-4757
|
Fitting assembly |
1 |
(includes 8-10) (between SN 10378380 and SN 10742212) |
|
8 |
175-8726
|
Plastic spray cap fitting |
1 |
(between SN 10378380 and SN 10742212) |
|
9 |
275-4946
|
Washer 0.21b x 0.45d flat |
1 |
(between SN 10378380 and SN 10742212) |
|
10 |
175-7948
|
Plastic spray body fitting |
1 |
(between SN 10378380 and SN 10742212) |
|
11 |
999-0633
|
Bolt 1/4-20 x 5/8 hex head stainless steel |
1 |
(between SN 10378380 and SN 10742212) |
|
12 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
1 |
(between SN 10378380 and SN 10742212) |
|
13 |
275-4759
|
Horn mounting bracket |
1 |
(between SN 10378380 and SN 10742212) |
|
14 |
275-8062
|
Horn |
1 |
|
|
15 |
275-4756
|
Check valve |
1 |
(between SN 10378380 and SN 10742212) |
|
16 |
275-1796
|
Straight plastic fitting (Tennant Industrial) |
1 |
(between SN 10378380 and SN 10742212) |
|
17 |
275-4760
|
Press switch |
1 |
(between SN 10378380 and SN 10742212) |
|
18 |
175-3529
|
Brass fitting |
1 |
(between SN 10378380 and SN 10742212) |
|
19 |
275-4758
|
Plastic tee fitting |
1 |
(between SN 10378380 and SN 10742212) |
|
20 |
175-6081
|
Hose clamp |
2 |
(between SN 10378380 and SN 10742212) |
|
21 |
275-1534
|
3 foot PVC hose (braided) (Tennant Industrial) |
1 |
(between SN 10378380 and SN 10742212) |
|
22 |
997-2009
|
Hose clamp |
2 |
|
|
23 |
275-1535
|
Pump mounting bracket |
1 |
|
|
24 |
175-7933
|
90 degree plastic elbow |
1 |
|
|
25 |
175-7941
|
Air vent valve |
1 |
|
|
26 |
175-6863
|
Straight brass fitting |
1 |
|
|
27 |
175-5869
|
Tee fitting 3/8 x 3/8 inch |
1 |
|
|
28 |
275-4753
|
24V solution pump |
1 |
(between SN 10378380 and SN 10742212) |
|
29 |
175-0339
|
P clamp |
1 |
|
|
30 |
275-4752
|
Capacitor plug |
1 |
(between SN 10378380 and SN 10742212) |
|
31 |
175-3685
|
90 degree elbow fitting |
1 |
|
|
32 |
375-0291
|
Hose clamp |
5 |
|
|
33a |
275-1454
|
12 inch vinyl hose |
1 |
(OEM) |
|
33b |
991-1405
|
Vinyl tubing 1/2 x 3/4 (sold by the inch) |
10 in |
(NON-OEM) |
|
34 |
275-1537
|
45 inch vinyl tubing |
1 |
|
|
35a |
275-1526
|
24V solution solenoid valve |
1 |
|
|
35b |
991-9173
|
24V solenoid valve |
|
(NON-OEM) |
|
36 |
275-5314
|
Hose clamp |
4 |
|
|
37 |
375-1414
|
3 inch clear vinyl tubing |
1 |
|
|
38 |
275-1455
|
Tee fitting |
1 |
|
|
39 |
275-9404
|
2 foot hose (clear) |
1 |
|
|
40 |
175-4744
|
90 degree elbow fitting |
1 |
|
|
41 |
175-7832
|
Mesh filter screen stainless steel |
1 |
|
|
42a |
275-1454
|
12 inch vinyl hose |
1 |
(OEM) |
|
42b |
991-1405
|
Vinyl tubing 1/2 x 3/4 (sold by the inch) |
10 in |
(NON-OEM) |
|
43 |
275-4755
|
Tee fitting |
1 |
(between SN 10378380 and SN 10742212) |
|
44 |
275-1523
|
90 degree brass elbow |
1 |
(between SN 10378380 and SN 10742212) |
|
45 |
175-1928
|
Plastic tee fitting |
1 |
(between SN 10378380 and SN 10742212) |
|
46 |
175-7303
|
1/4 inch union tee |
1 |
(between SN 10378380 and SN 10742212) |
|
47 |
175-7795
|
Cable tie |
3 |
(between SN 10378380 and SN 10742212) |
|
48 |
175-5304
|
Hose clamp |
1 |
(between SN 10378380 and SN 10742212) |
|
49 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
50 |
999-1225
|
Screw M5-.8 x 12mm pan head phillips zinc |
2 |
|
|
