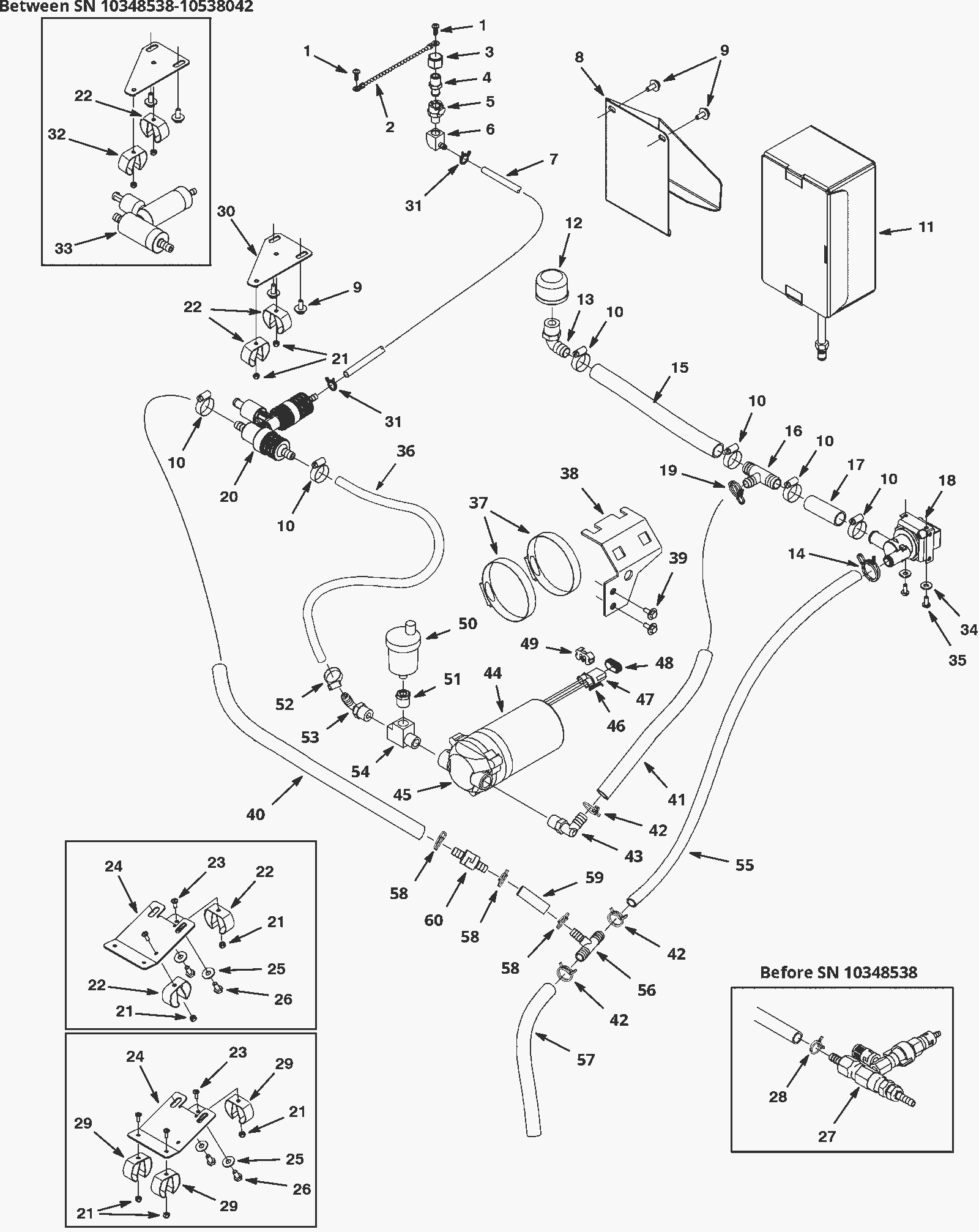

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0531
|
Screw M5-.8 x 16mm pan head slotted zinc |
2 |
|
|
2 |
175-5129
|
Ball chain #10 stainless steel |
1 |
|
|
3 |
175-5313
|
Plastic cap fitting |
1 |
|
|
4 |
175-5312
|
Male coupling strainer fitting |
1 |
|
|
5 |
275-1522
|
1/4 female coupling |
1 |
|
|
6 |
275-1523
|
90 degree brass elbow |
1 |
|
|
7 |
175-5305
|
Hose 1/4 x 3 foot |
1 |
|
|
8 |
275-9007
|
Detergent mounting bracket |
1 |
|
|
9 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
4 |
(after SN 10369602) |
|
10 |
175-6081
|
Hose clamp |
6 |
|
|
11 |
N/A
|
Not available |
1 |
(detergent) |
|
12 |
175-7832
|
Mesh filter screen stainless steel |
1 |
|
|
13 |
175-4744
|
90 degree elbow fitting |
1 |
|
|
14 |
275-5314
|
Hose clamp |
1 |
|
|
15 |
275-9404
|
2 foot hose (clear) |
1 |
|
|
16 |
275-1455
|
Tee fitting |
1 |
|
|
17 |
375-1414
|
3 inch clear vinyl tubing |
1 |
|
|
18a |
275-1526
|
24V solution solenoid valve |
1 |
|
|
18b |
991-9173
|
24V solenoid valve |
|
(NON-OEM) |
|
19 |
375-0291
|
Hose clamp |
1 |
|
|
20a |
275-5727
|
FaST injector kit |
1 |
(after SN 10538042) (24 inch and 26 inch) |
|
20b |
275-5726
|
FaST injector kit |
1 |
(after SN 10347531) (28 inch and 32 inch) |
|
21 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
2 |
(qty 3 before SN 10347532) |
|
22 |
175-4526
|
Spring clip |
2 |
(qty 1 for 28 and 32 inch models) |
|
23 |
999-0534
|
Screw M4-.7 x 10mm pan head slotted zinc |
2 |
(qty 3 before SN 10347532) |
|
24 |
N/A
|
Not available |
1 |
(injector mounting plate) (replaced by 30) (before SN 10369603) |
|
25 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
(before SN 10369603) |
|
26 |
999-9116
|
Screw M6-1 x 12mm hex head stainless steel |
2 |
(before SN 10369603) |
|
27a |
275-5730
|
FaST conversion kit (24 and 26 inch) |
1 |
(before SN 10348538) (24 and 26 inch models) |
|
27b |
275-5729
|
FaST conversion kit (28 and 32 inch) |
1 |
(before SN 10347532)(28 and 32 inch models) |
|
28 |
175-3671
|
Hose clamp |
1 |
(before SN 10348538) |
|
29 |
175-7938
|
Spring clip (black) |
3 |
(before SN 10347532) |
|
30 |
275-5728
|
FaST injector plate |
1 |
(after SN 10369602) |
|
31 |
175-5304
|
Hose clamp |
2 |
|
|
32 |
175-7938
|
Spring clip (black) |
1 |
(28 and 32 inch models) |
|
33 |
N/A
|
Not available |
1 |
(FaST injector kit) (replaced by 20a) (between SN 10348538 and SN 10538042) |
|
34 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
35 |
999-1225
|
Screw M5-.8 x 12mm pan head phillips zinc |
2 |
|
|
36 |
275-1534
|
3 foot PVC hose (braided) (Tennant Industrial) |
1 |
|
|
37 |
997-2009
|
Hose clamp |
2 |
|
|
38 |
275-1535
|
Pump mounting bracket |
1 |
|
|
39 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
2 |
|
|
40 |
275-1538
|
2 1/2 foot hose |
1 |
|
|
41 |
275-1454
|
12 inch vinyl hose |
1 |
|
|
42 |
375-0291
|
Hose clamp |
3 |
|
|
43 |
175-3685
|
90 degree elbow fitting |
1 |
|
|
44 |
175-7934
|
24V solution pump |
1 |
(includes 45-49) |
|
45 |
275-1536
|
Solution pump head |
1 |
|
|
46 |
175-8753
|
Female connector |
1 |
|
|
47 |
175-8755
|
TERMINAL, FEM, MP280, SEALED, 18-16GA (Tennant Industrial) |
1 |
|
|
48 |
175-8754
|
14/16 wire seal |
1 |
|
|
49 |
175-8756
|
Male and female secondary lock |
1 |
|
|
50 |
175-7941
|
Air vent valve |
1 |
|
|
51 |
175-6863
|
Straight brass fitting |
1 |
|
|
52 |
175-6081
|
Hose clamp |
1 |
|
|
53 |
175-7933
|
90 degree plastic elbow |
1 |
|
|
54 |
175-5869
|
Tee fitting 3/8 x 3/8 inch |
1 |
|
|
55 |
275-1537
|
45 inch vinyl tubing |
1 |
|
|
56 |
175-4810
|
Tee fitting |
1 |
|
|
57 |
275-1454
|
12 inch vinyl hose |
1 |
|
|
58 |
175-3671
|
Hose clamp |
3 |
|
|
59 |
175-8670
|
Hose 3/8 x 6 1/2 inch |
1 |
|
|
60a |
175-7929
|
Check valve |
1 |
(24, 28 and 32 inch disk models) (26 and 32 inch cylindrical models) |
|
60b |
275-5316
|
Check valve |
1 |
(between SN 10347532 and SN 10582616) (28 and 32 inch disk models) (32 inch cylindrical models) |
|
